Soft trunking cover, design trunking 999 | aluminium
morepic-1 morepic-2

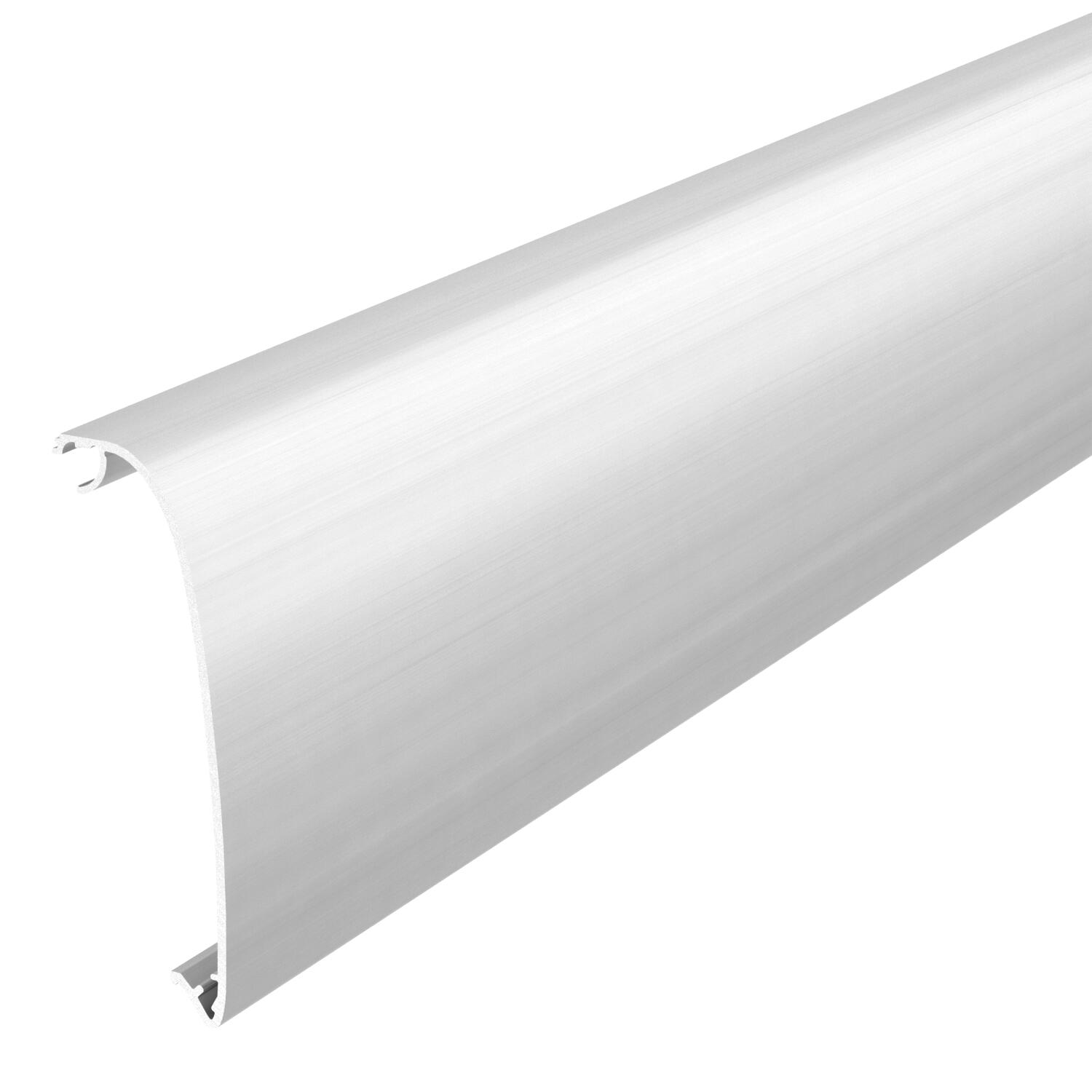

Soft trunking cover, design trunking

Item no. 6115835 | EAN 4012195914174

6115835 / OT GAD Soft EL
999 mm
aluminium
Product description
Product description
Trunking cover to create a design device installation trunking of the GAD series. "Soft" design version for complete coverage of the system opening and the switching and plug-in devices. The GAD OTA cover adapters are essential and must be planned on the trunking section with a max. spacing of 50 cm. A GAD OTD spacer must be placed between the trunking covers.
Standard version in anodised aluminium, different decoration on request.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour aluminium
Cover mounting type Cross-over

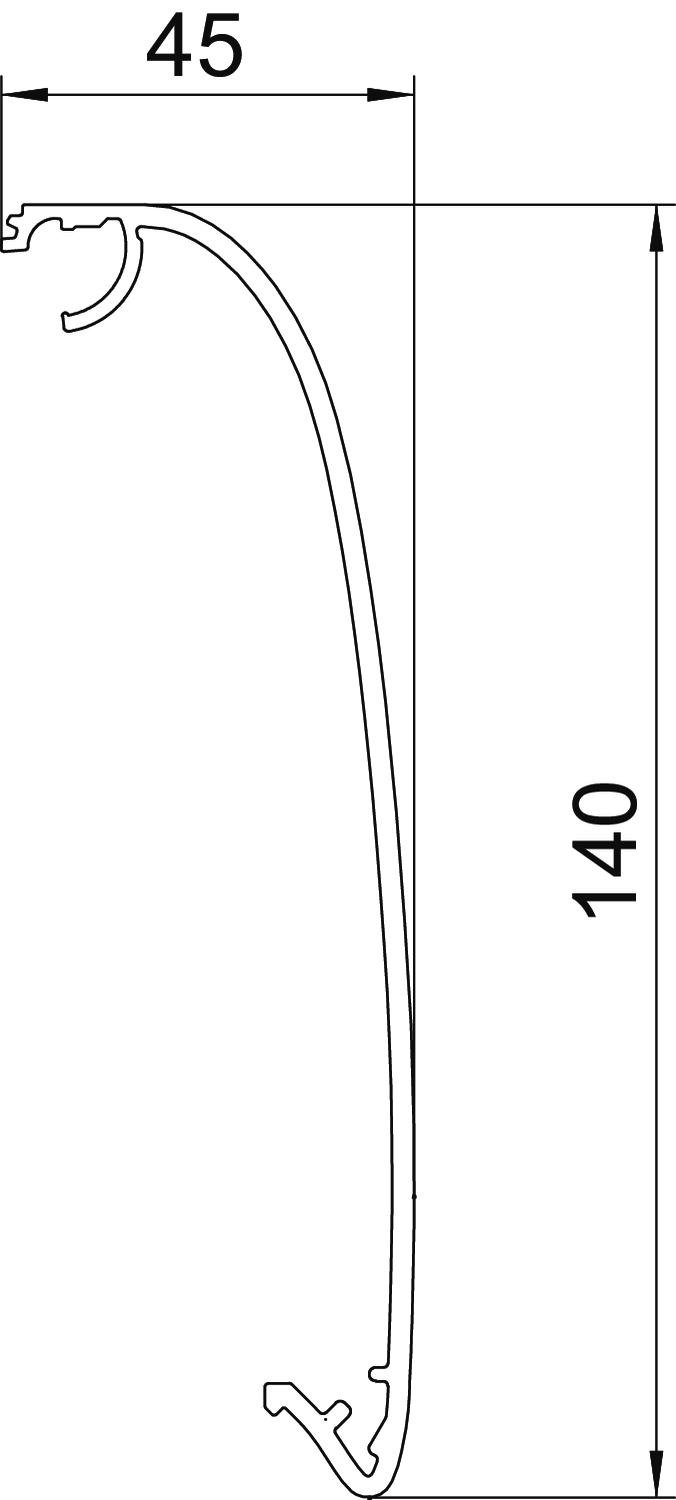

Dimension 45x140x999
Halogen-free yes
Height 45 mm
Length 999 mm
Material Aluminium
Protective film yes
Surface Anodised
Version for Smooth
Width 140 mm
All types

All types

Types Length Colour Item no. Quantity SSU
OT GAD Soft EL 999 mm aluminium 6115835
1 piece
Downloads

Download

Download
Download

EU declaration of conformity OT GAD Soft EL / 6115835 , 0.13MB , pdf
Download
UK Declaration of Conformity OT GAD Soft EL / 6115835 , 0.14MB , pdf
Download

Download

No invitation to tender text is available for this product.
