SOM clip, single 22 | 34 | Light grey; RAL 7035
morepic-1 morepic-2

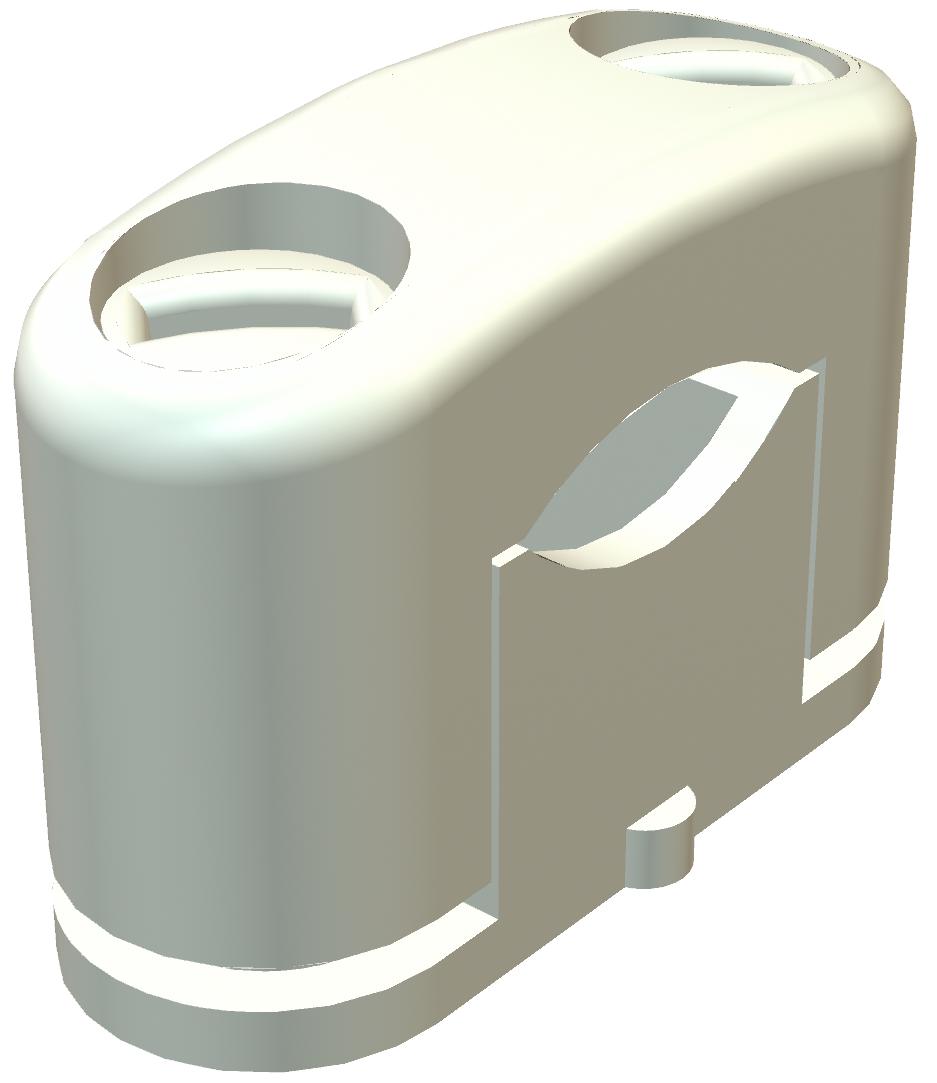

SOM clip, single

Item no. 2124343 | EAN 4012195196754

Light grey; RAL 7035
Product description

Product description

With plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bolt M8 x 23
Clamping range D, max. 34 mm
Clamping range D, min. 22 mm
Colour Light grey; RAL 7035
Dimension 22-34mm
Fastening type Screw hole
Halogen-free yes
Material Polystyrene
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
UV-resistant no
Version for Closed

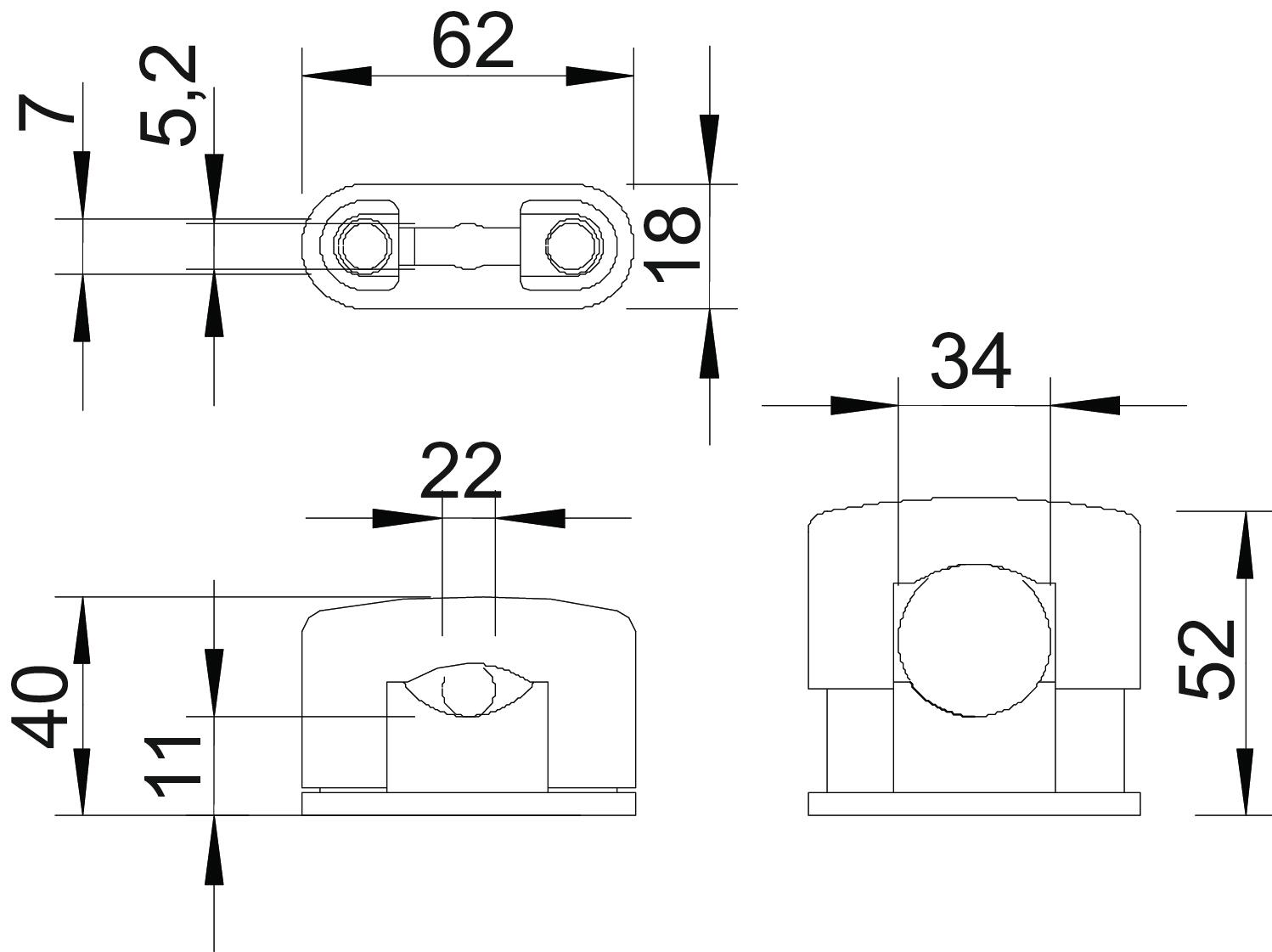

Dimensions

Dimension b 18 mm
Dimension b1 5,2 mm
Dimension d max. 34 mm
Dimension d min. 22 mm
Dimension H1 11 mm
Dimension H2 40 mm
Dimension H3 52 mm
Dimension L 62 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
3079 LGR 5 mm 14 mm Light grey; RAL 7035 2124149
50 piece
3080 LGR 6 mm 17 mm Light grey; RAL 7035 2124173
50 piece
3081 LGR 15 mm 25 mm Light grey; RAL 7035 2124254
25 piece
3082 LGR 22 mm 34 mm Light grey; RAL 7035 2124343
25 piece
