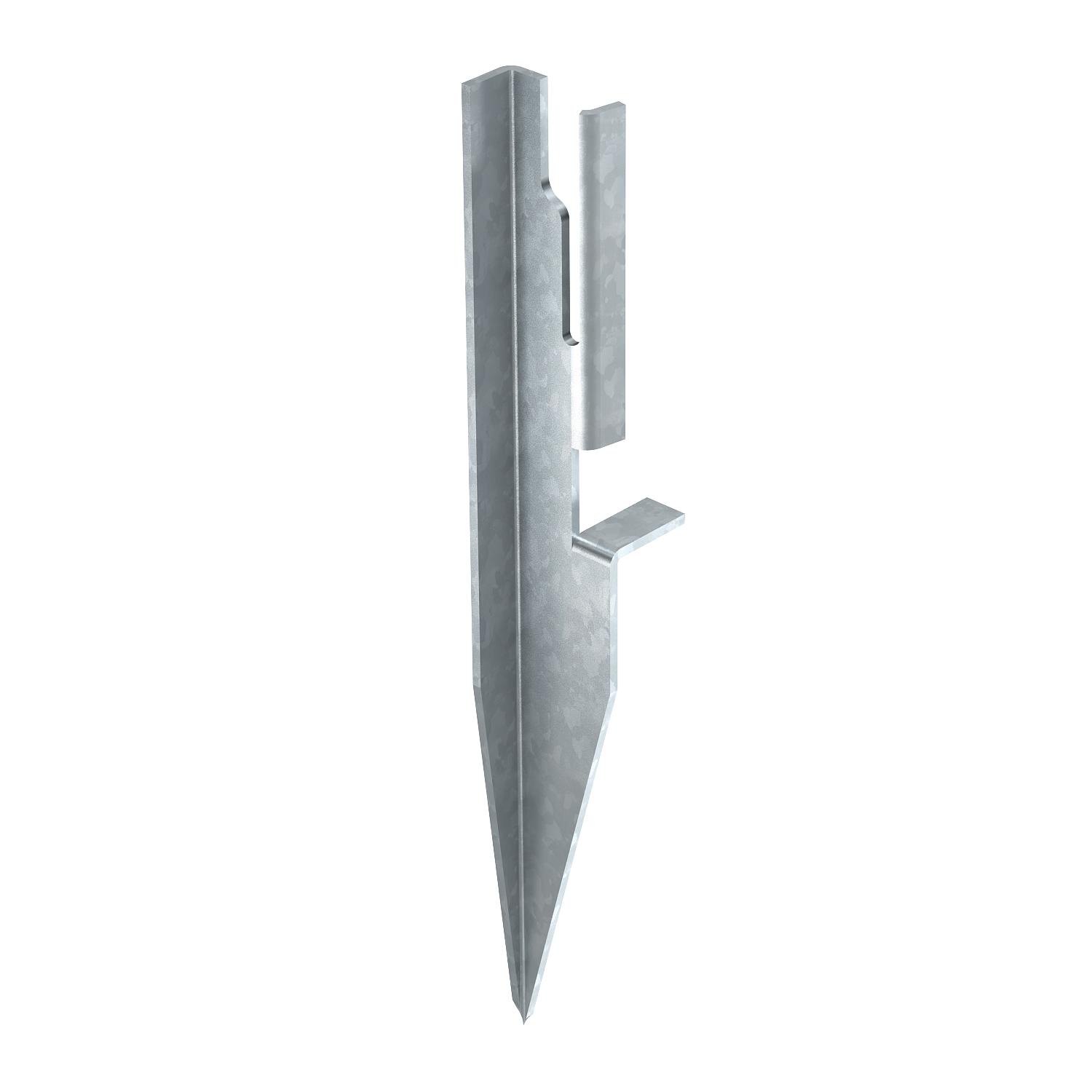

Spacer
Item no. 5014018 | EAN 4012195377894
- Product description
-
Product description
• For professional laying of round conductors and flat conductors according
to DIN VDE 0185-305 (IEC 62305)
• DIN 48833
• Suitable for mounting round conductors Rd 10 or flat conductors FL 30 x 3.5
- Technical data
-
Technical data

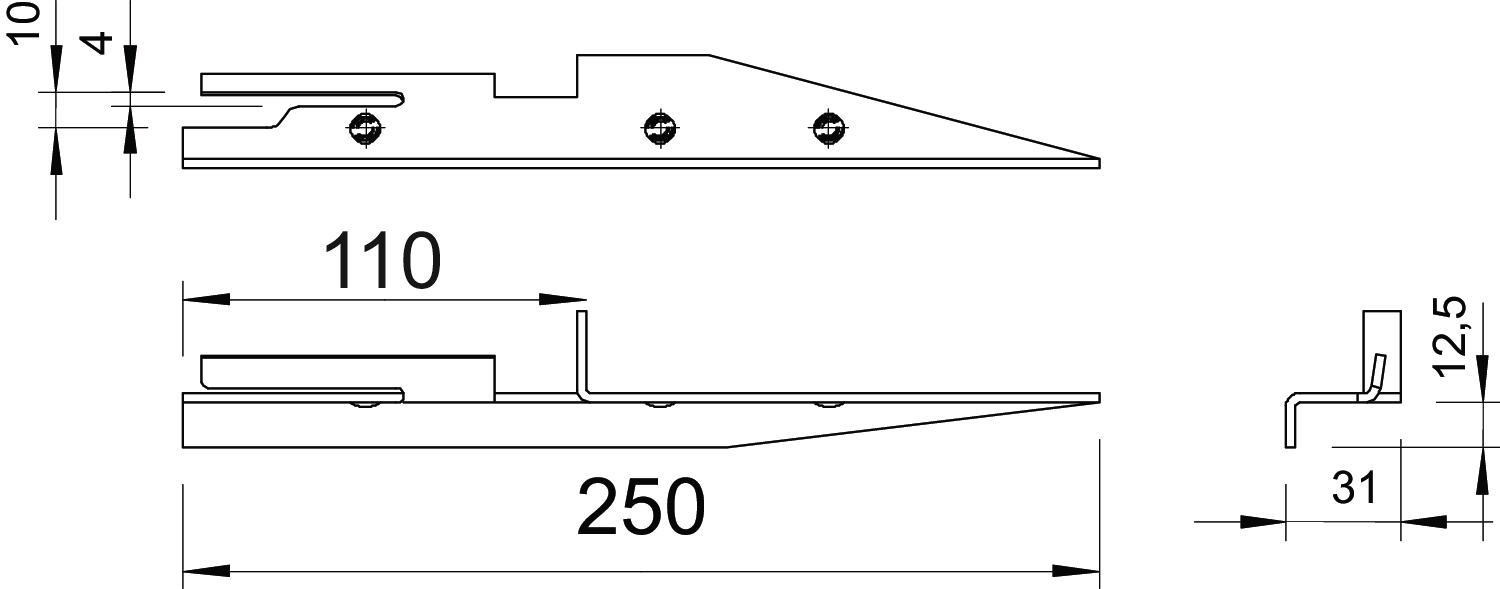

Dimension 250mm Fit 10/FL30 x 3,5 mm Material Steel Surface Hot-dip galvanised Dimensions
Dimension L 250 mm Length 250 mm - All types
- Downloads
-
Data sheet 1811 / 5014018 , 0.18MB , pdfDeclaration of conformity 1811 / 5014018 , 0.06MB , pdfREACH Declaration of conformity 1811 / 5014018 , 0.27MB , pdfRoHS Declaration of conformity 1811 / 5014018 , 0.28MB , pdf
