Spacer
Item no. 5014026 | EAN 4012195377955
- Product description
-
Product description
• For professional laying of round conductors and flat conductors according
to DIN VDE 0185-305 (IEC 62305)
• DIN 48833
• Suitable for mounting round conductors Rd 10 or flat conductors FL 30 x 3.5
- Technical data
-
Technical data

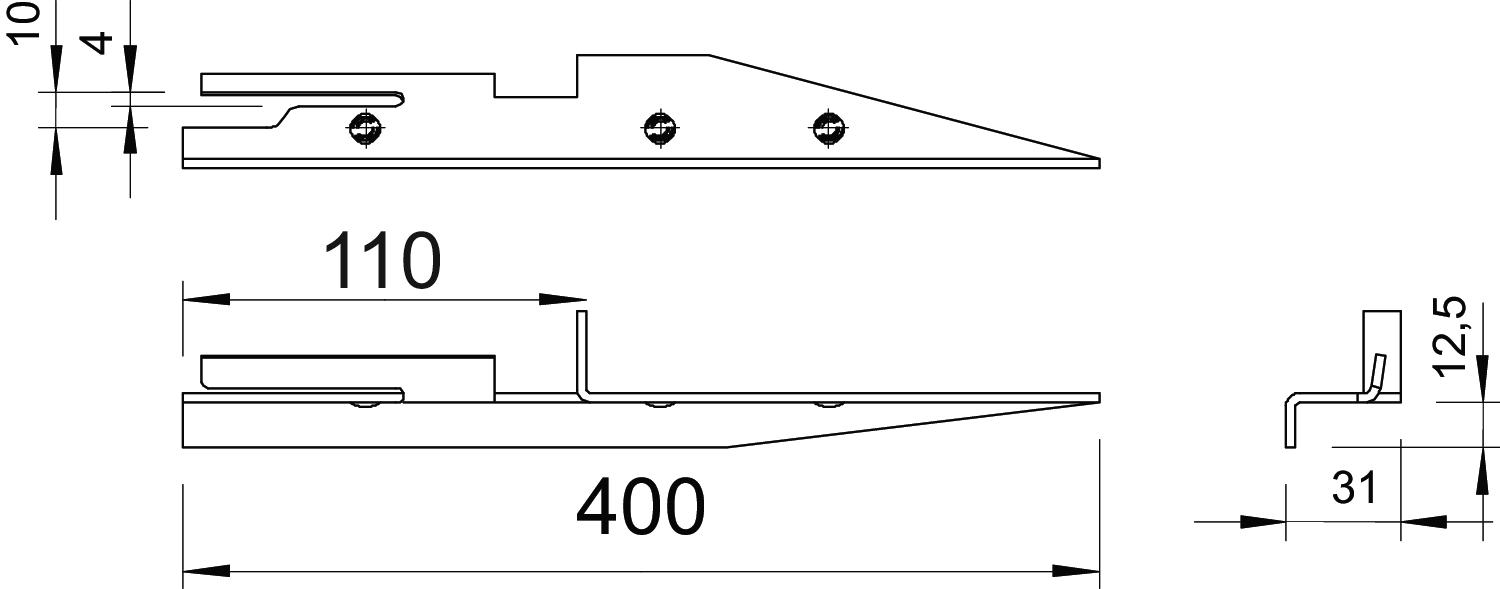

Dimension 400mm Fit 10/FL30 x 3,5 mm Material Steel Surface Hot-dip galvanised Dimensions
Dimension L 400 mm Length 400 mm - All types
- Downloads
-
Data sheet 1811 L / 5014026 , 0.16MB , pdfDeclaration of conformity 1811 L / 5014026 , 0.06MB , pdfREACH Declaration of conformity 1811 L / 5014026 , 0.27MB , pdfRoHS Declaration of conformity 1811 L / 5014026 , 0.28MB , pdf
