Spacer
Item no. 5408043 | EAN 4012195674863
- Product description
-
Product description

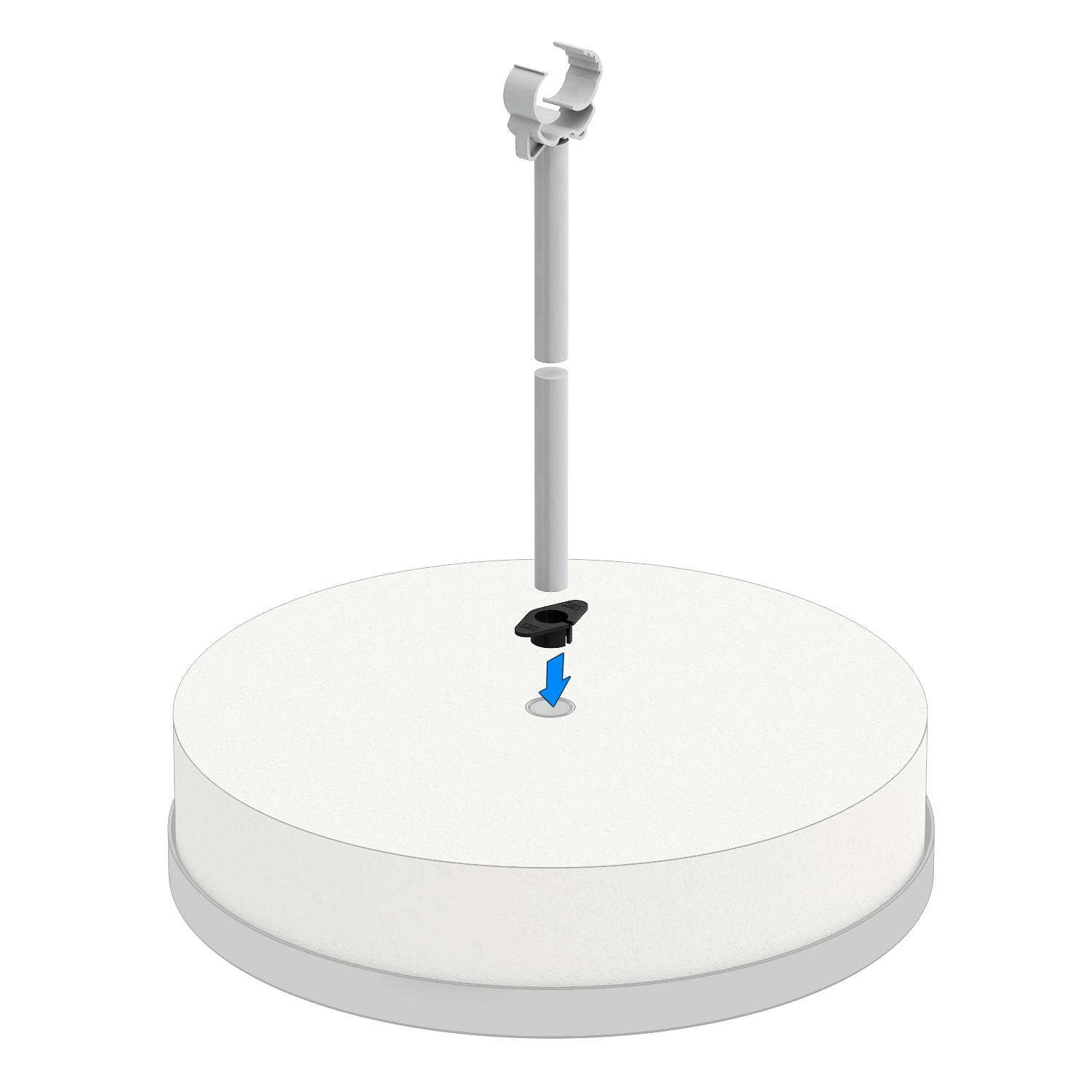

For stand-off installation of the isCon® conductor in the area of the connection, incl. reducing sleeve for mounting on FangFix concrete block 10 Kg.
- Technical data
-
Technical data

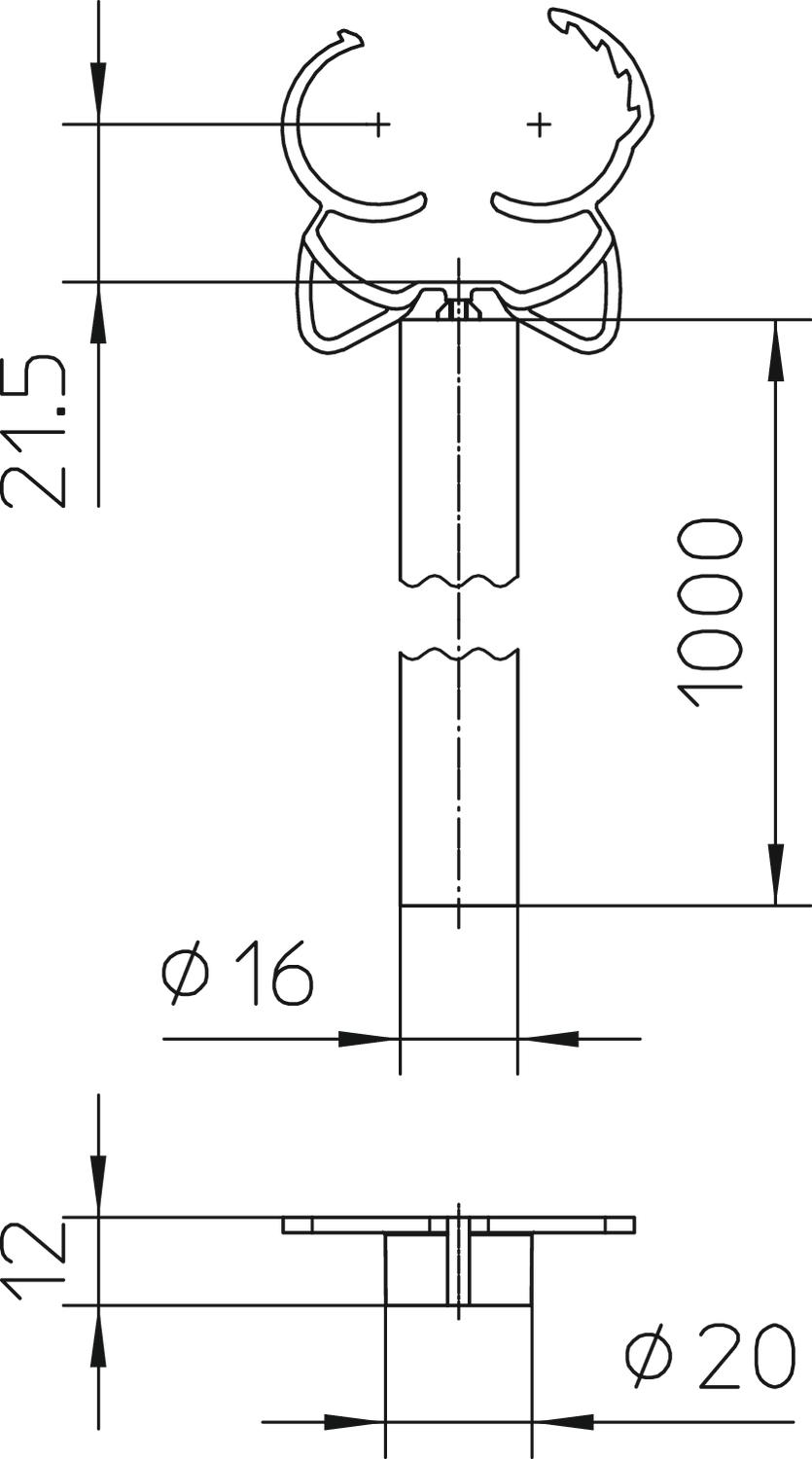

Clamping range D, max. 26 mm Clamping range D, min. 23 mm Colour Light grey Dimension 1000mm Material Fibre-glass-reinforced plastic Dimensions
Length 1000 mm - All types
- Downloads
-
Data sheet isCon DH / 5408043 , 0.14MB , pdfDeclaration of conformity isCon DH / 5408043 , 0.06MB , pdfREACH Declaration of conformity isCon DH / 5408043 , 0.12MB , pdfRoHS Declaration of conformity isCon DH / 5408043 , 0.12MB , pdfMounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdf
