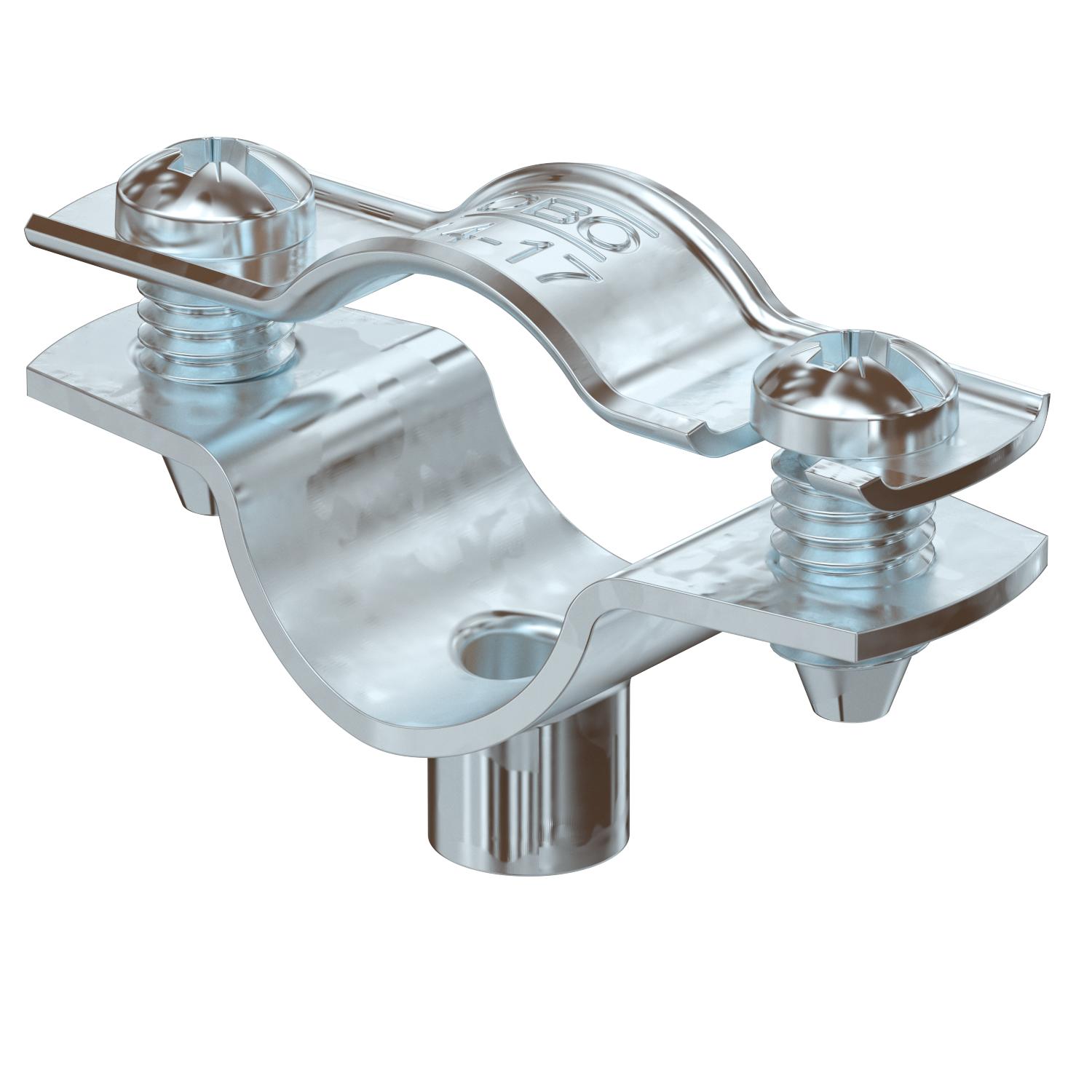

Spacer clip 732 FT
Item no. 1362367 | EAN 4012196599394
- Product description
-
Product description
Spacer clip for the installation of pipes and cables on walls, ceiling and floors. With self-locking upper part. Surfaces G and FT from a clip size of 20 are suitable for installation with a nail device or a bolt-firing tool.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90.
-
- Technical data
-
Technical data

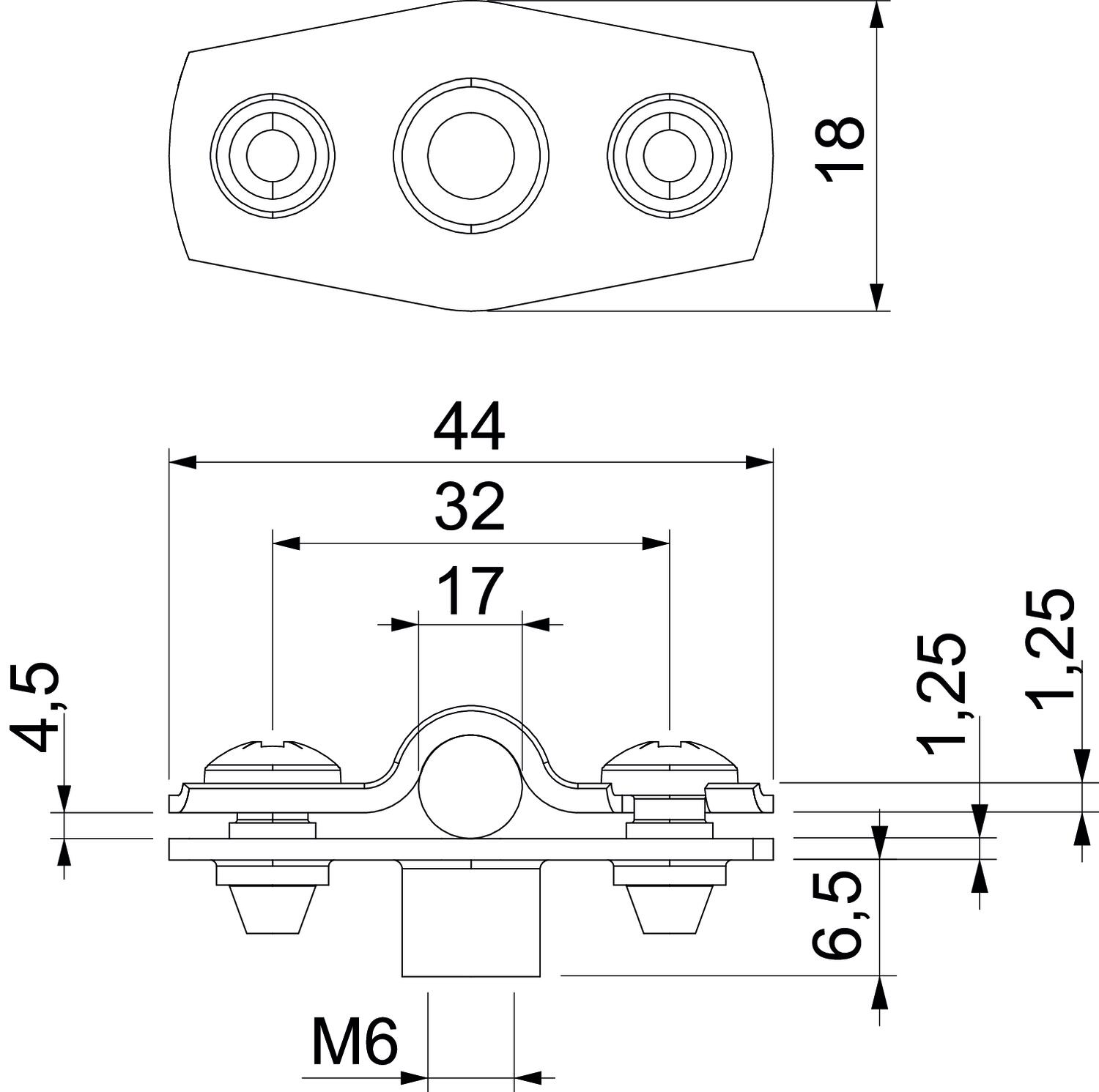

Clamping range D, max. 17 mm Clamping range D, min. 14 mm Dimension 14-17mm Dimension A 44 mm Dimension b 18 mm Dimension B 32 mm Dimension D 17 mm Dimension d max. 17 mm Dimension d min. 14 mm Dimension H1 6,5 mm Dimension t1 (mm) 1,25 Dimension t2 (mm) 1,25 Dimension x 4,5 mm Distance to the wall yes Fastening type Threaded connection For diameter 14 - 17 Halogen-free yes Material Steel Material thickness 1,25 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes Surface Hot-dip galvanised UV-resistant yes Version for Closed - All types
-
All types
