Product description

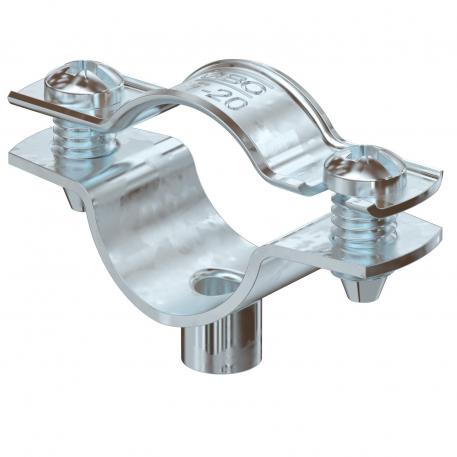

Spacer clip for the installation of pipes and cables on walls, ceiling and floors. With self-locking upper part. Surfaces G and FT from a clip size of 20 are suitable for installation with a nail device or a bolt-firing tool.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90.
- Technical data
-
Technical data

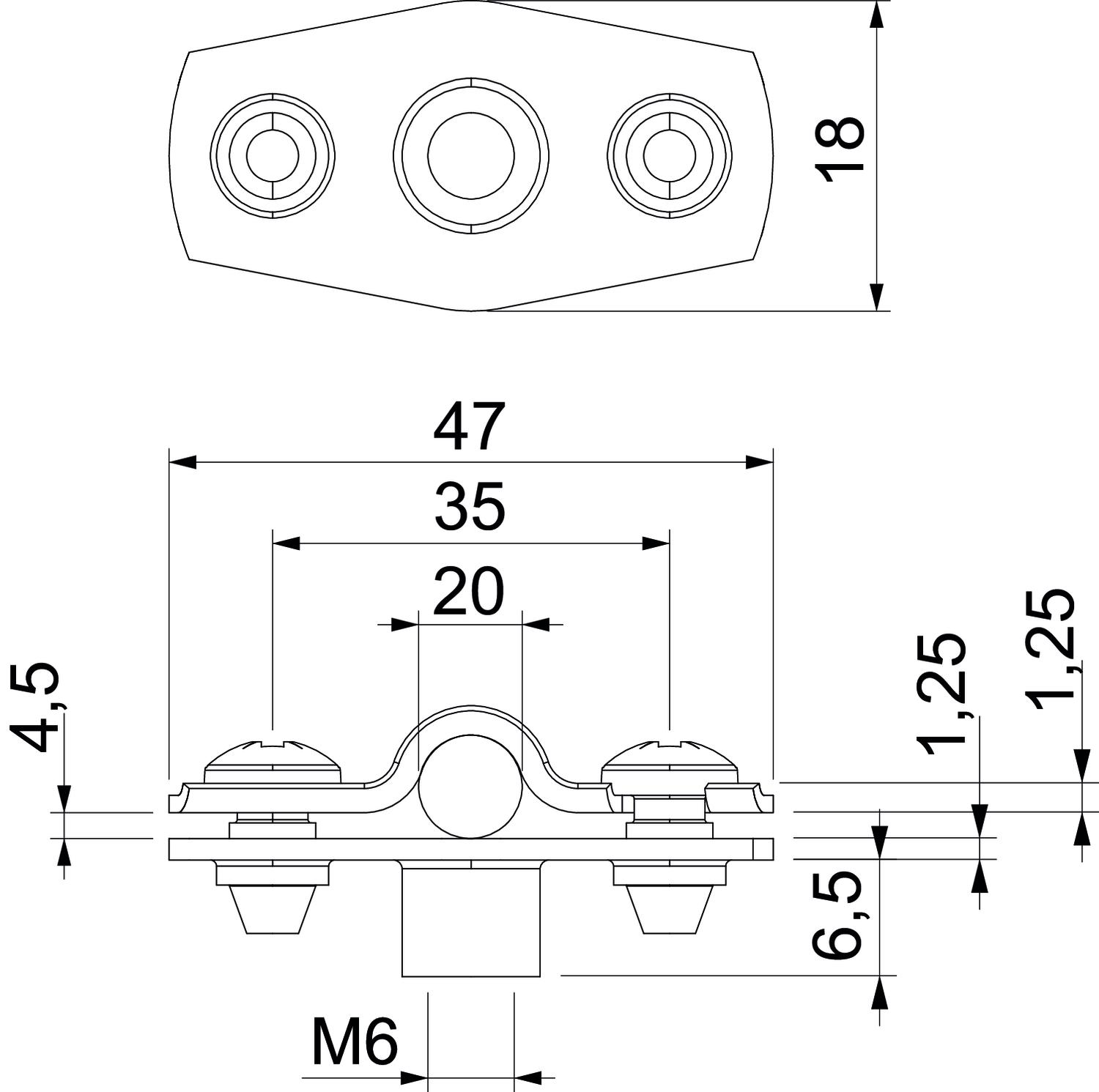

Clamping range D, max. 20 mm Clamping range D, min. 17 mm Dimension 17-20mm Dimension A 47 mm Dimension b 18 mm Dimension B 35 mm Dimension D 20 mm Dimension d max. 20 mm Dimension d min. 17 mm Dimension H1 6,5 mm Dimension t1 (mm) 1,25 Dimension t2 (mm) 1,25 Dimension x 4,5 mm Distance to the wall yes Fastening type Threaded connection For diameter 17 - 20 Halogen-free yes Material Steel Material thickness 1,25 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes Surface Hot-dip galvanised UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASG 732 20 FT / 1362369 , 0.28MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity ASG 732 20 FT / 1362369 , 0.13MB , pdf
