Spacer clip 732 FT

Item no. 1362360 | EAN 4012196599363

Steel
Hot-dip galvanised
Product description

Product description

Spacer clip for the installation of pipes and cables on walls, ceiling and floors. With self-locking upper part. Surfaces G and FT from a clip size of 20 are suitable for installation with a nail device or a bolt-firing tool.

Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90

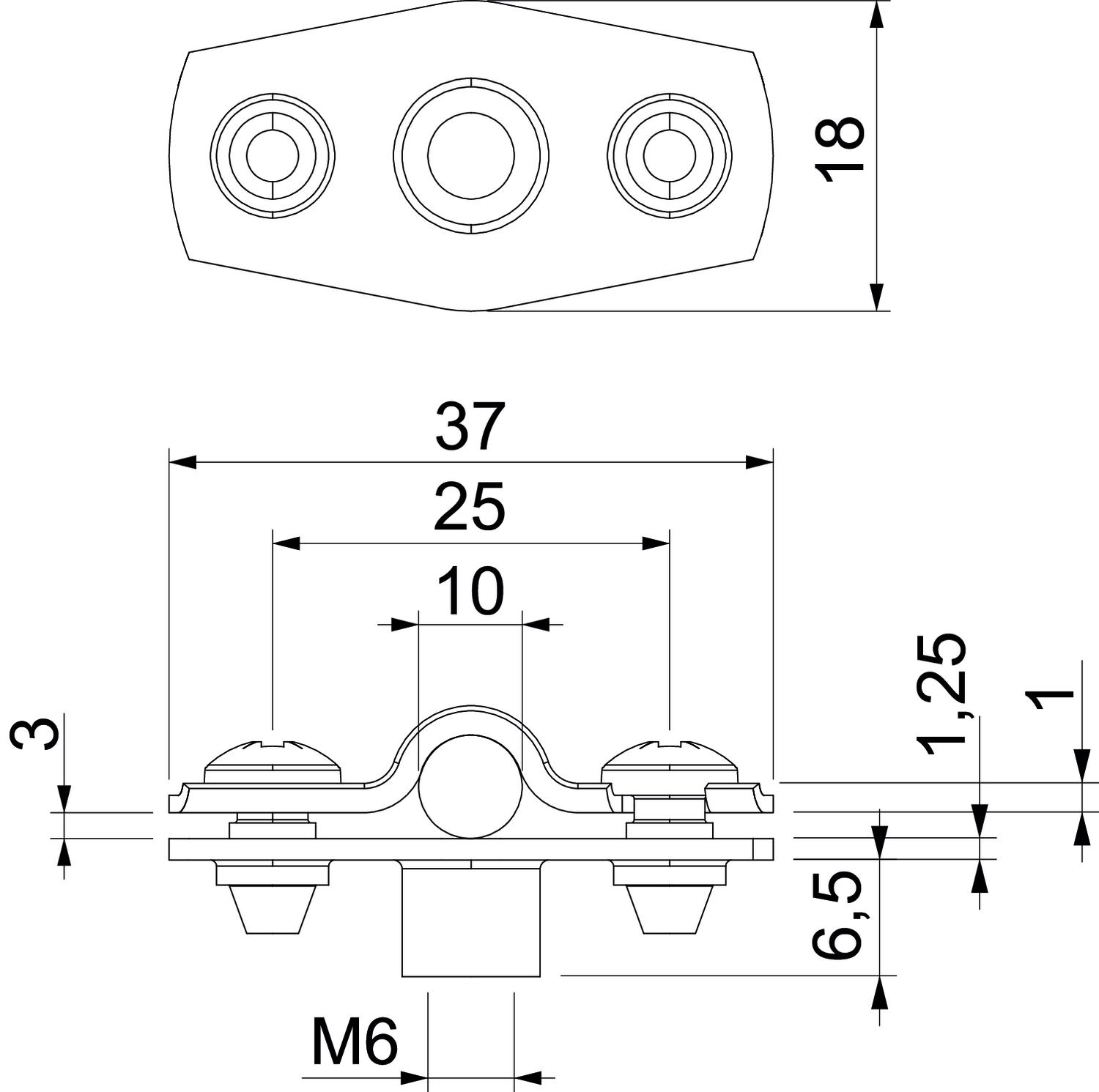

Technical data

Technical data

Clamping range D, max. 10 mm
Clamping range D, min. 8 mm
Dimension 8-10mm
Dimension A 37 mm
Dimension B 25 mm
Dimension b 18 mm
Dimension D 10 mm
Dimension d max. 10 mm
Dimension d min. 8 mm
Dimension H1 6,5 mm
Dimension t1 (mm) 1
Dimension t2 (mm) 1,25
Dimension x 3 mm
Distance to the wall yes
Fastening type Threaded connection
For diameter 8 - 10
Halogen-free yes
Material Steel
Material thickness 1,25 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area yes
Surface Hot-dip galvanised
UV-resistant yes
Version for Closed
All types

All types

Types Material thickness Clamping range D, min. Clamping range D, max. Material Surface Item no. Quantity SSU
ASG 732 6 FT 1.25 mm 5 mm 6 mm Steel Hot-dip galvanised 1362354
25 piece
ASG 732 7 FT 1.25 mm 6 mm 7 mm Steel Hot-dip galvanised 1362356
25 piece
ASG 732 8 FT 1.25 mm 7 mm 8 mm Steel Hot-dip galvanised 1362358
25 piece
ASG 732 10 FT 1.25 mm 8 mm 10 mm Steel Hot-dip galvanised 1362360
25 piece
ASG 732 12 FT 1.25 mm 10 mm 12 mm Steel Hot-dip galvanised 1362362
25 piece
ASG 732 14 FT 1.25 mm 12 mm 14 mm Steel Hot-dip galvanised 1362364
25 piece
ASG 732 17 FT 1.25 mm 14 mm 17 mm Steel Hot-dip galvanised 1362367
25 piece
ASG 732 20 FT 1.25 mm 17 mm 20 mm Steel Hot-dip galvanised 1362369
25 piece
ASG 732 25 FT 1.25 mm 20 mm 25 mm Steel Hot-dip galvanised 1362372
25 piece
ASG 732 30 FT 1.5 mm 25 mm 30 mm Steel Hot-dip galvanised 1362374
20 piece
ASG 732 36 FT 1.5 mm 30 mm 36 mm Steel Hot-dip galvanised 1362378
20 piece
ASG 732 44 FT 1.5 mm 36 mm 44 mm Steel Hot-dip galvanised 1362382
20 piece
ASG 732 53 FT 1.5 mm 44 mm 53 mm Steel Hot-dip galvanised 1362386
20 piece
ASG 732 63 FT 1.5 mm 53 mm 63 mm Steel Hot-dip galvanised 1362389
20 piece
