Spacer clip 732 G
Item no. 1362424 | EAN 4012196599660
- Product description
-
Product description

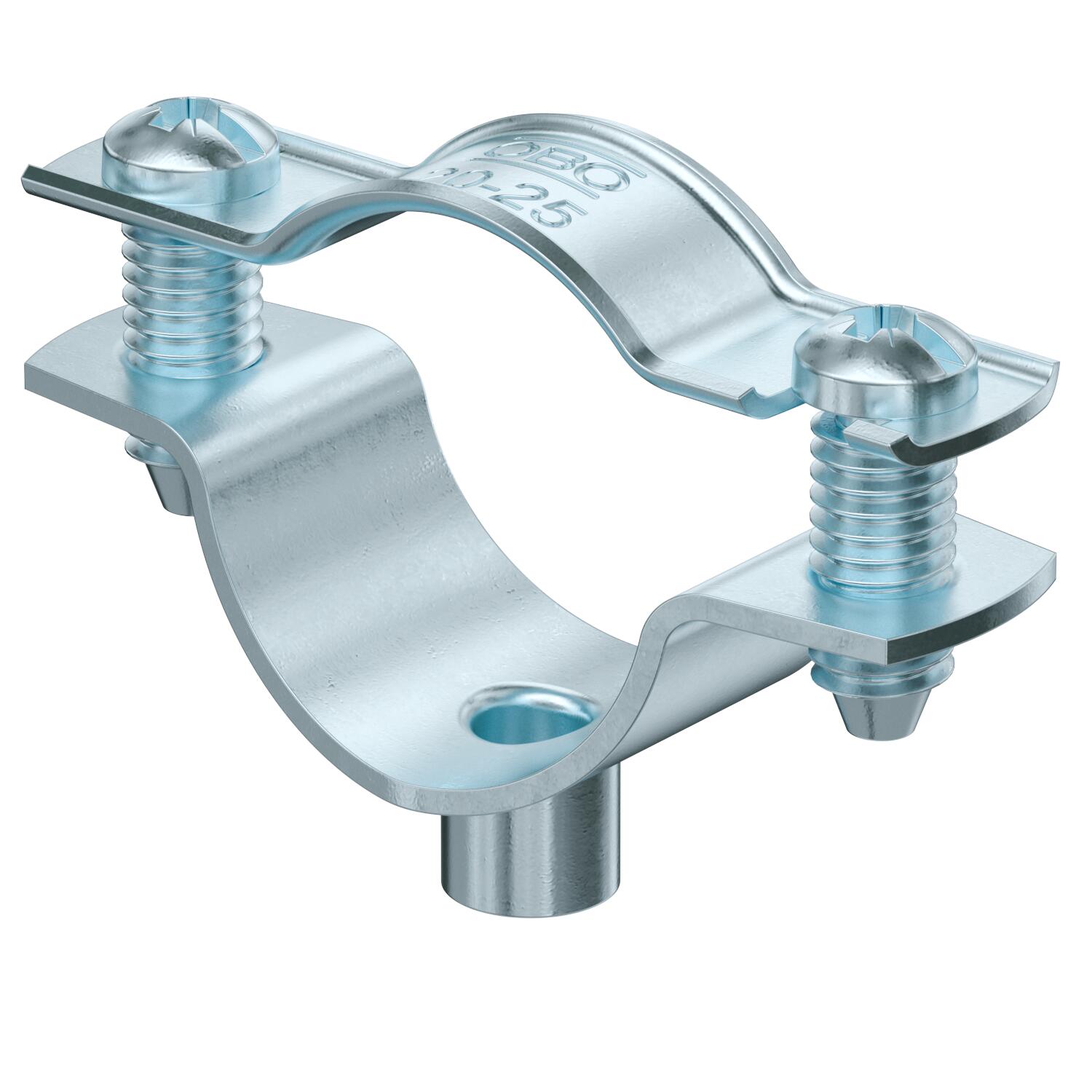

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via attachment piece with internal thread.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
-
- Technical data
-
Technical data

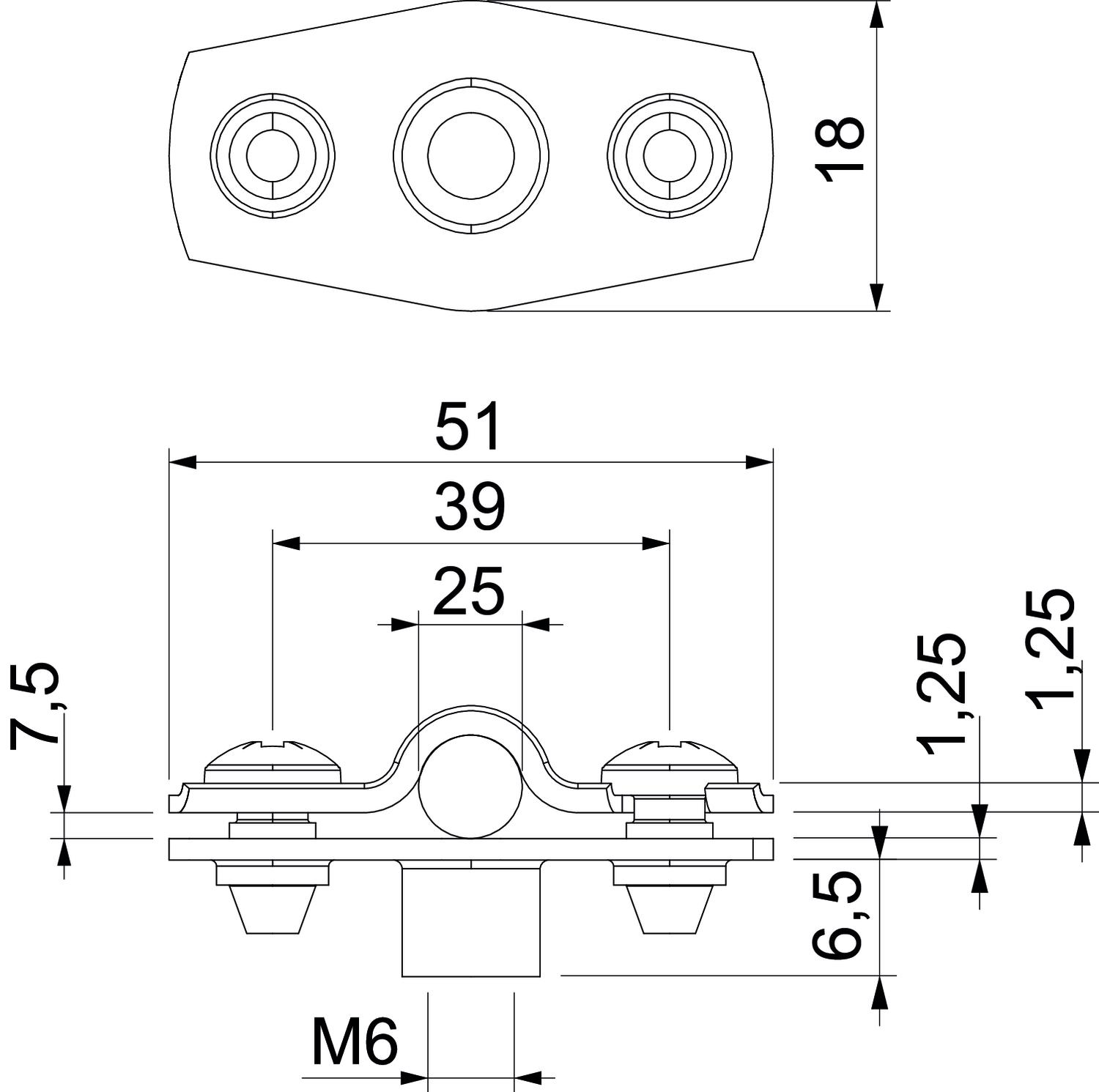

Clamping range D, max. 25 mm Clamping range D, min. 20 mm Dimension 20-25mm Dimension A 51 mm Dimension b 18 mm Dimension B 39 mm Dimension D 25 mm Dimension d max. 25 mm Dimension d min. 20 mm Dimension H1 6,5 mm Dimension t1 (mm) 1,25 Dimension t2 (mm) 1,25 Dimension x 7,5 mm Distance to the wall yes Fastening type Threaded connection For diameter 20 - 25 Halogen-free yes Material Steel Material thickness 1,25 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes Surface Electrogalvanized UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASG 732 25 G / 1362424 , 0.27MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity ASG 732 25 G / 1362424 , 0.13MB , pdfREACH Declaration of conformity ASG 732 25 G / 1362424 , 0.12MB , pdfRoHS Declaration of conformity ASG 732 25 G / 1362424 , 0.12MB , pdf
