Spacer clip 732 G

Item no. 1362410 | EAN 4012196599615

Steel
Electrogalvanized
Product description
Product description

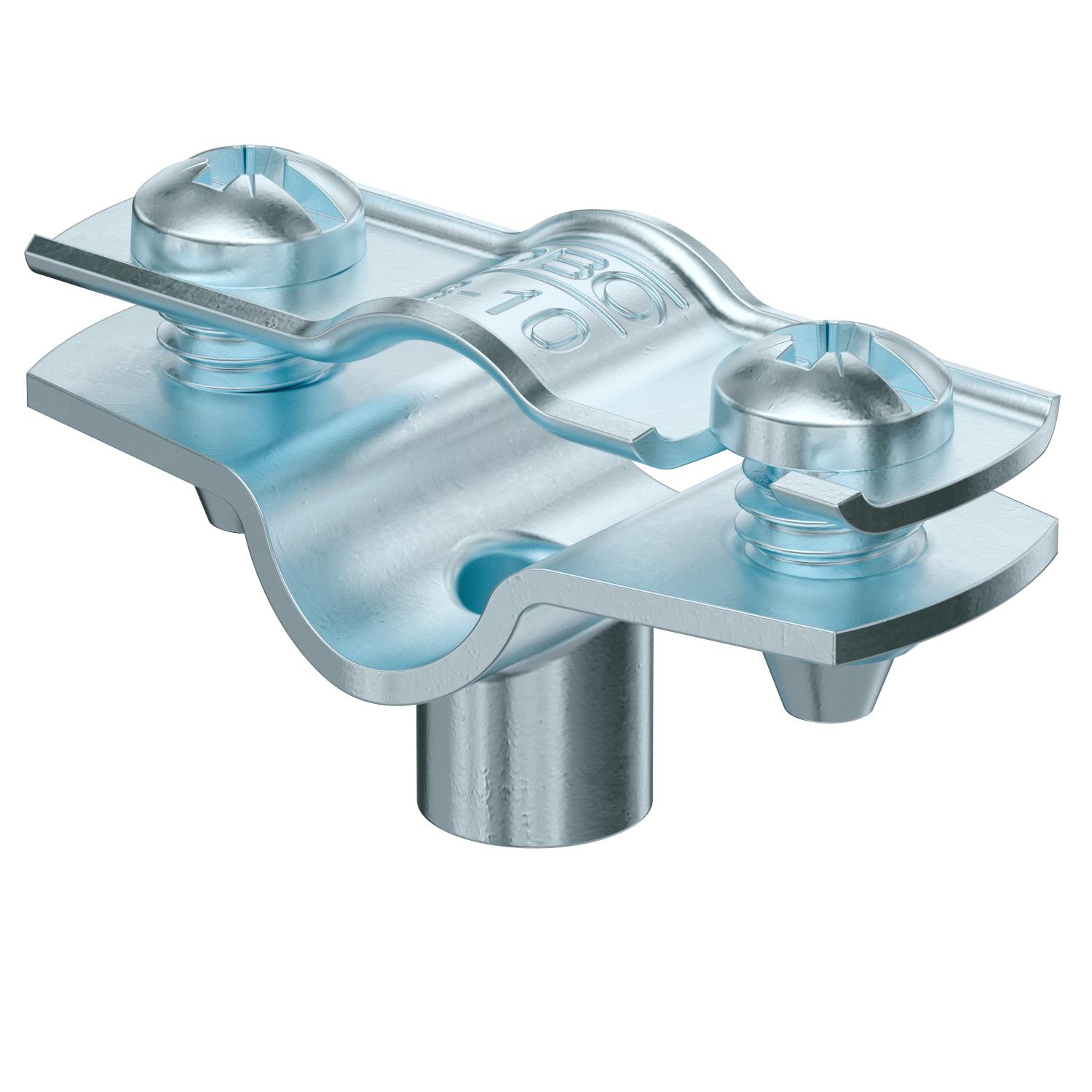

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via attachment piece with internal thread.

Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
Technical data

Technical data

Clamping range D, max. 10 mm
Clamping range D, min. 8 mm
CO₂ Footprint (GWP) Cradle-to-Gate 0,048 kg CO₂e / 1 Piece

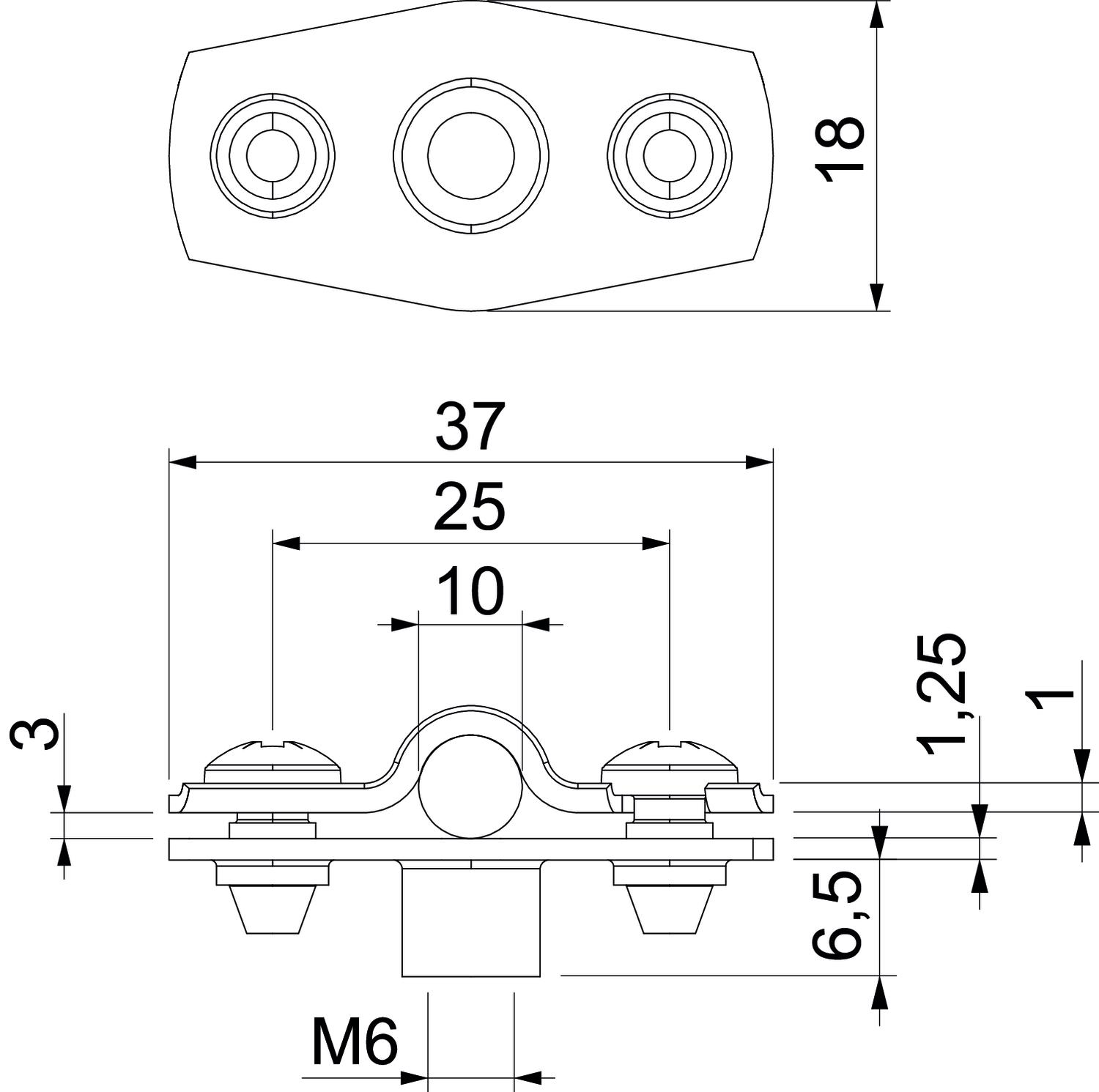

Dimension 8-10mm
Dimension A 37 mm
Dimension b 18 mm
Dimension B 25 mm
Dimension D 10 mm
Dimension d max. 10 mm
Dimension d min. 8 mm
Dimension H1 6,5 mm
Dimension t1 (mm) 1
Dimension t2 (mm) 1,25
Dimension x 3 mm
Distance to the wall yes
Fastening type Threaded connection
For diameter 8 - 10
Halogen-free yes
Material Steel
Material thickness 1,25 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area yes
Surface Electrogalvanized
UV-resistant yes
Version for Closed
All types

All types

Types Material thickness Clamping range D, min. Clamping range D, max. Material Surface Item no. Quantity SSU
ASG 732 6 G 1.25 mm 5 mm 6 mm Steel Electrogalvanized 1362404
25 piece
ASG 732 7 G 1.25 mm 6 mm 7 mm Steel Electrogalvanized 1362406
25 piece
ASG 732 8 G 1.25 mm 7 mm 8 mm Steel Electrogalvanized 1362408
25 piece
ASG 732 10 G 1.25 mm 8 mm 10 mm Steel Electrogalvanized 1362410
25 piece
ASG 732 12 G 1.25 mm 10 mm 12 mm Steel Electrogalvanized 1362412
25 piece
ASG 732 14 G 1.25 mm 12 mm 14 mm Steel Electrogalvanized 1362414
25 piece
ASG 732 17 G 1.25 mm 14 mm 17 mm Steel Electrogalvanized 1362417
25 piece
ASG 732 20 G 1.25 mm 17 mm 20 mm Steel Electrogalvanized 1362420
25 piece
ASG 732 25 G 1.25 mm 20 mm 25 mm Steel Electrogalvanized 1362424
25 piece
ASG 732 30 G 1.5 mm 25 mm 30 mm Steel Electrogalvanized 1362428
20 piece
ASG 732 36 G 1.5 mm 30 mm 36 mm Steel Electrogalvanized 1362432
20 piece
ASG 732 44 G 1.5 mm 36 mm 44 mm Steel Electrogalvanized 1362436
20 piece
ASG 732 53 G 1.5 mm 44 mm 53 mm Steel Electrogalvanized 1362440
20 piece
ASG 732 63 G 1.5 mm 53 mm 63 mm Steel Electrogalvanized 1362444
20 piece
