Product description

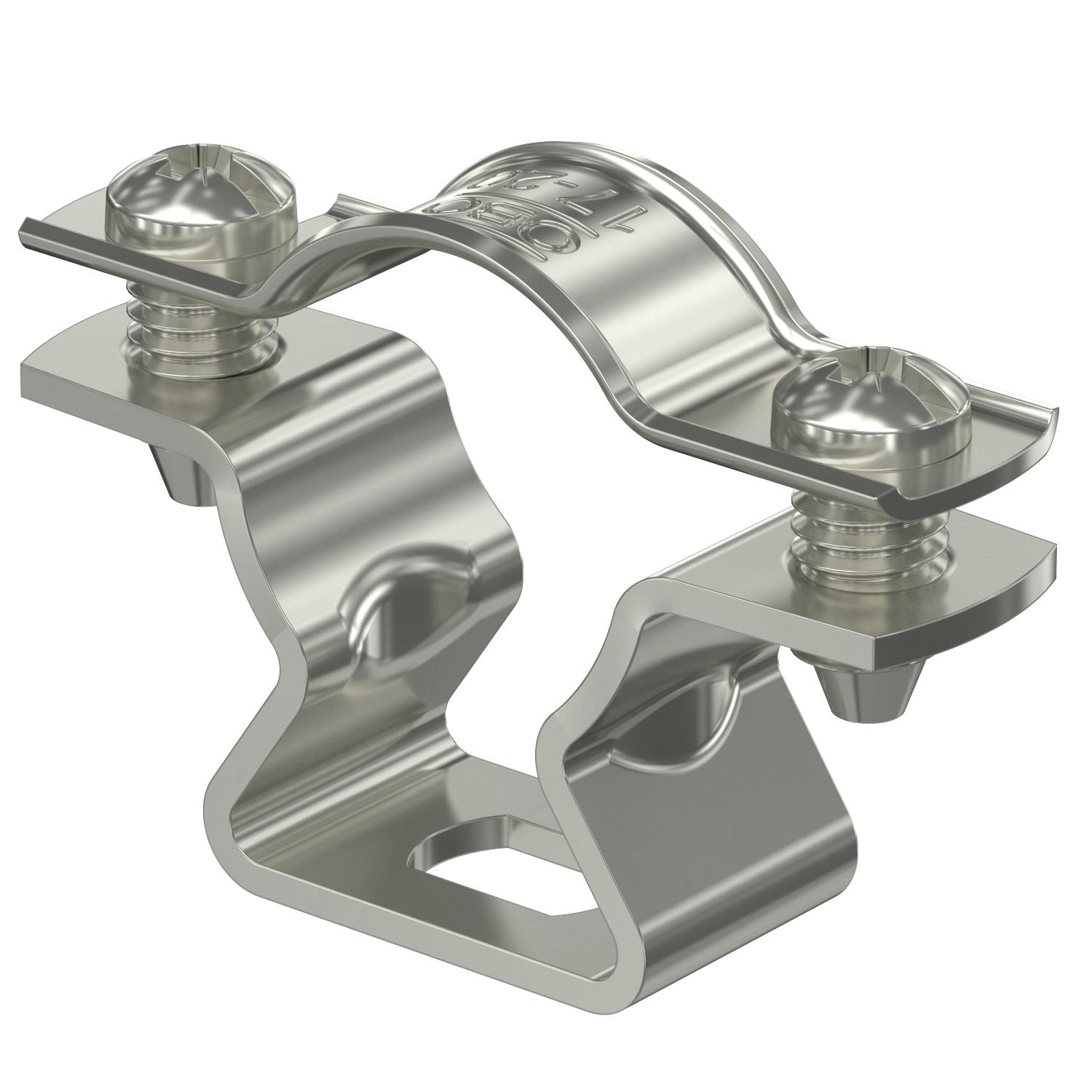

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
- Technical data
-
Technical data

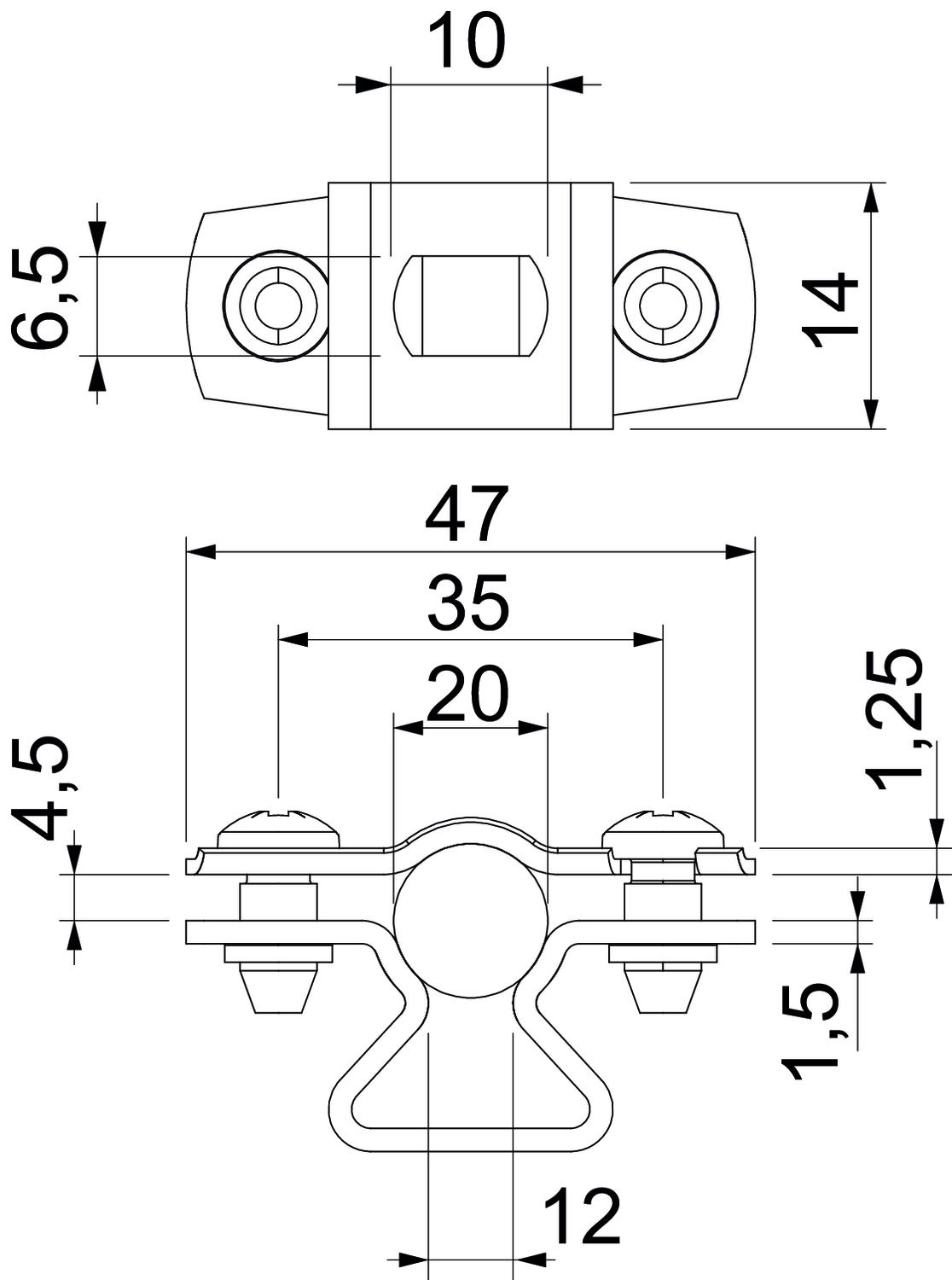

Clamping range D, max. 20 mm Clamping range D, min. 17 mm Dimension 17-20mm Dimension A 47 mm Dimension B 35 mm Dimension b 14 mm Dimension D 20 mm Dimension d max. 20 mm Dimension d min. 17 mm Dimension L 10 mm Dimension s 12 mm Dimension t1 (mm) 1,25 Dimension t2 (mm) 1,5 Dimension x 4,5 mm Distance to the wall yes Fastening type Screw hole For diameter 17 - 20 Halogen-free yes Material Stainless steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASL 733 20 A4 / 1362914 , 0.24MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity ASL 733 20 A4 / 1362914 , 0.13MB , pdfREACH Declaration of conformity ASL 733 20 A4 / 1362914 , 0.12MB , pdfRoHS Declaration of conformity ASL 733 20 A4 / 1362914 , 0.12MB , pdf
