Product description

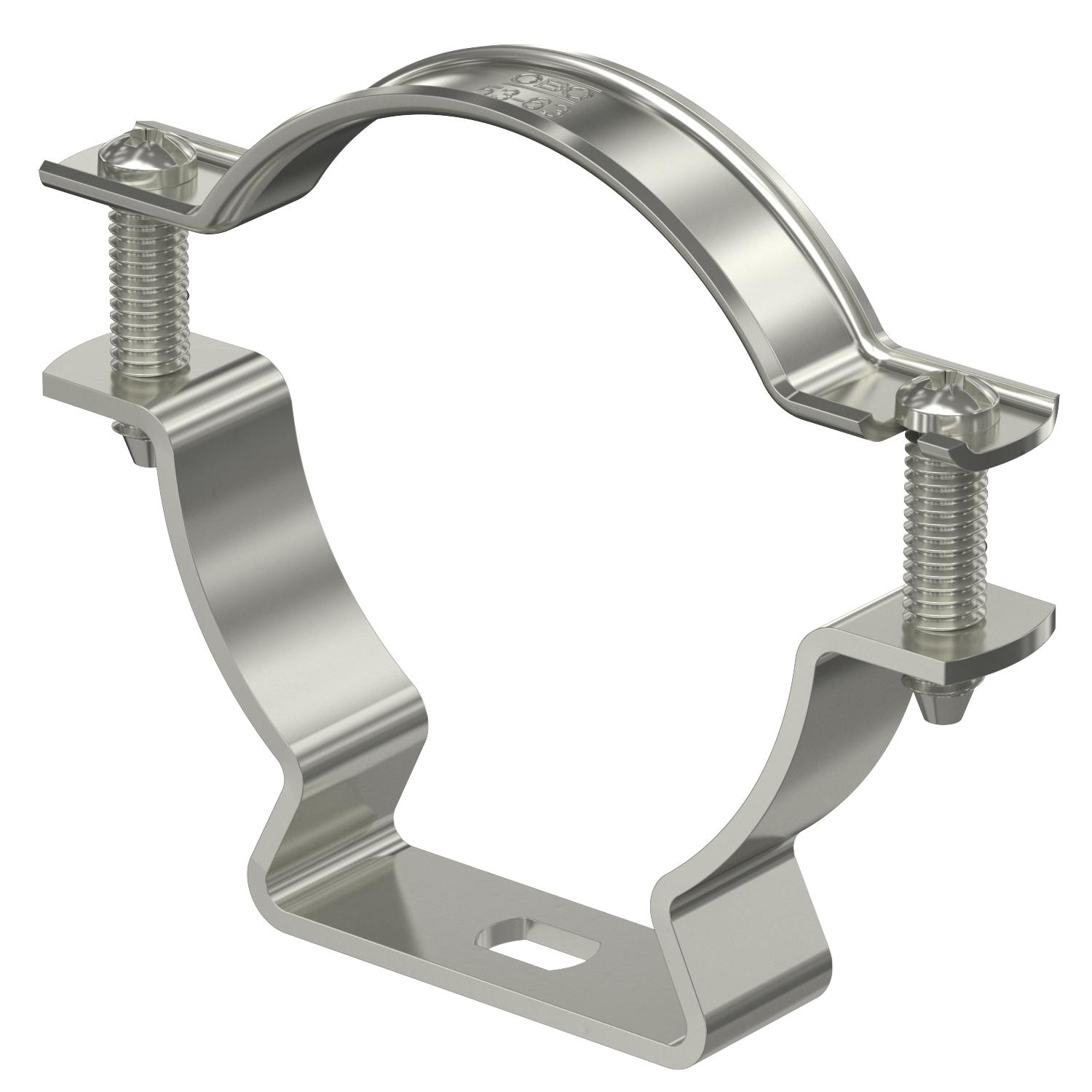

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
- Technical data
-
Technical data

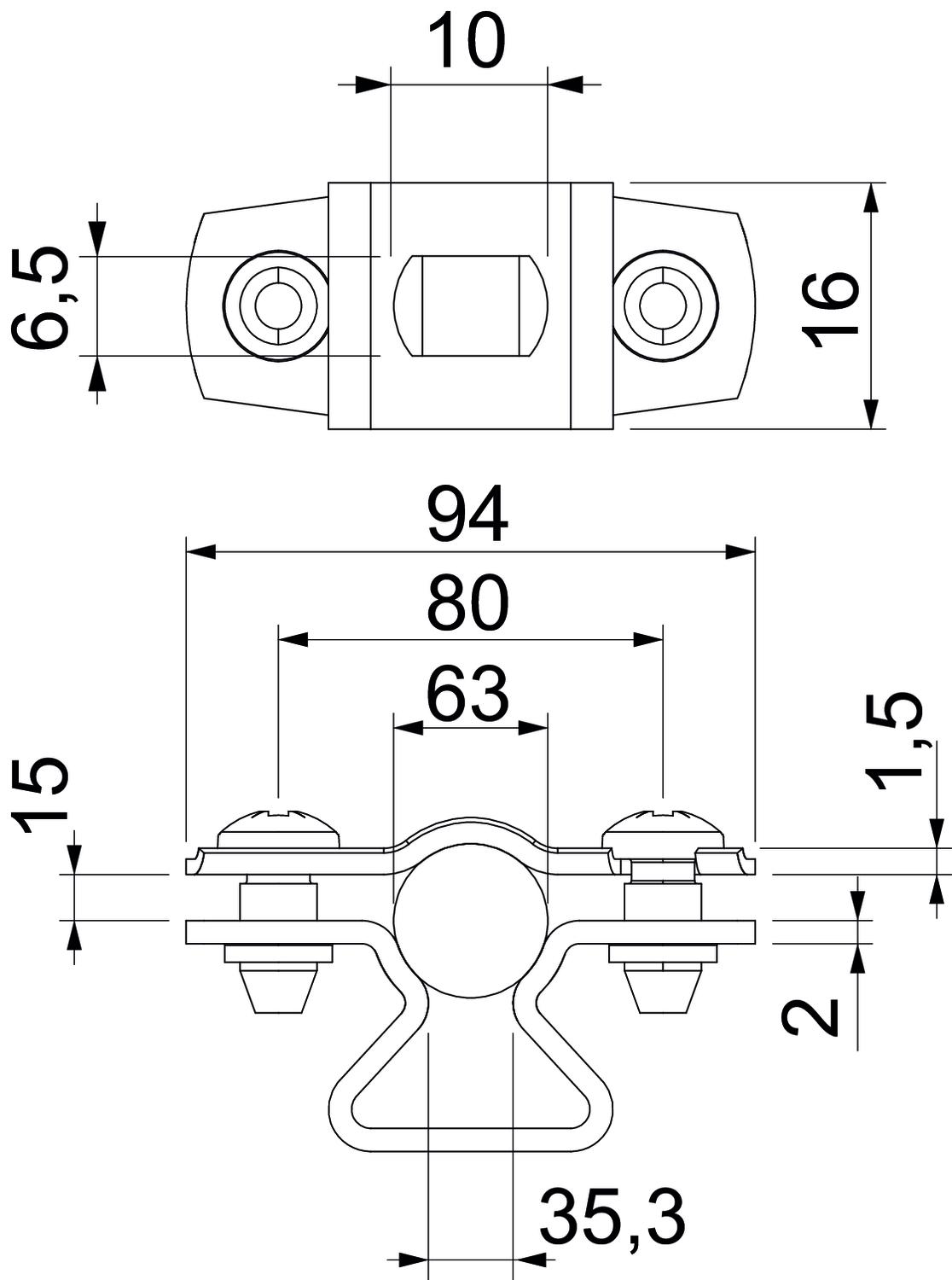

Clamping range D, max. 63 mm Clamping range D, min. 53 mm Dimension 53-63mm Dimension A 94 mm Dimension B 80 mm Dimension b 16 mm Dimension D 63 mm Dimension d max. 63 mm Dimension d min. 53 mm Dimension L 10 mm Dimension s 35,3 mm Dimension t1 (mm) 1,5 Dimension t2 (mm) 2 Dimension x 15 mm Distance to the wall yes Fastening type Screw hole For diameter 53 - 63 Halogen-free yes Material Stainless steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes UV-resistant yes Version for Closed - All types
-
All types
