Spacer clip 733 ALU
Item no. 1362830 | EAN 4012196600212
- Product description
-

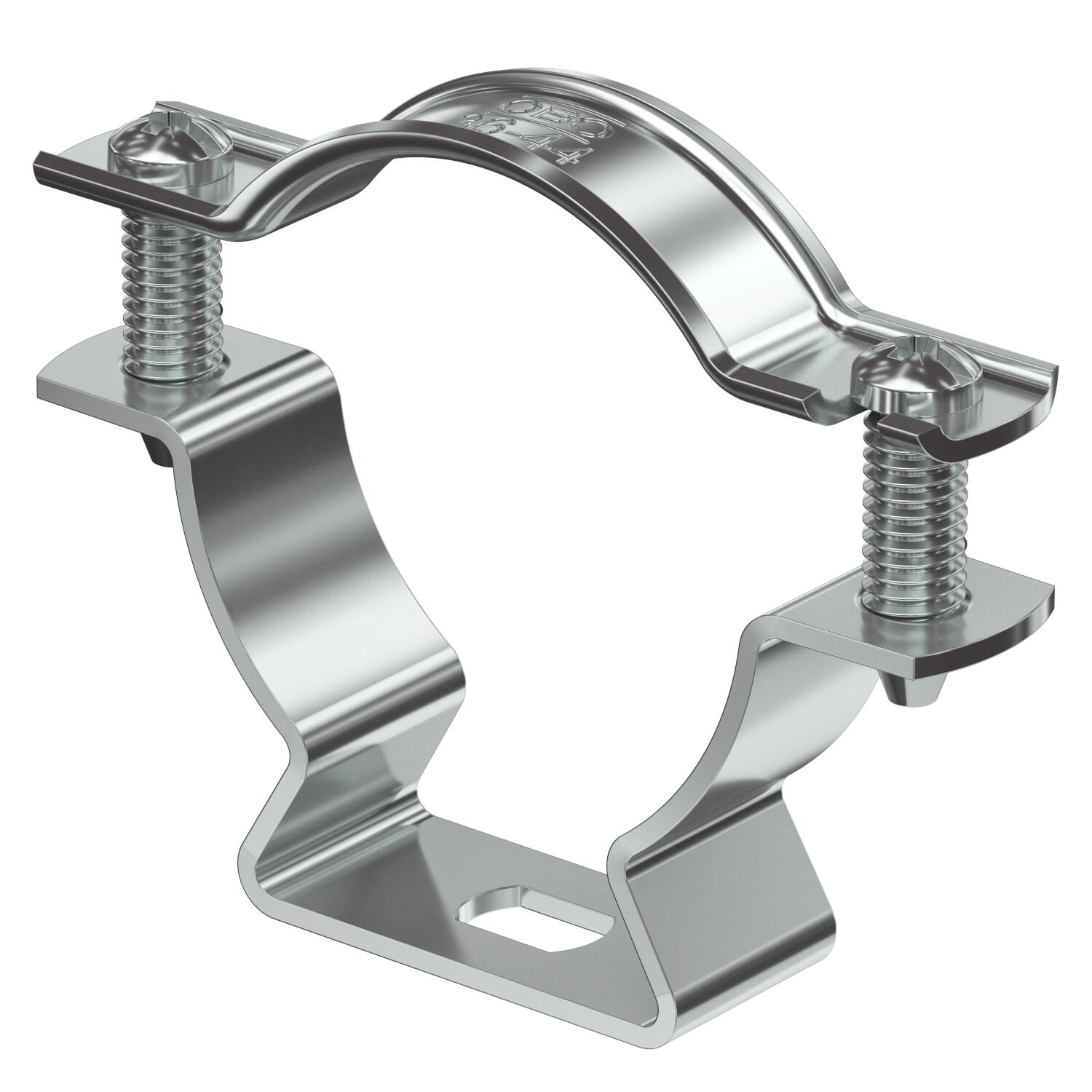

Product descriptionSpacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking upper part. Fastening via slot. From the clip size of 20 suitable for installation with a nail device or bolt-firing device.
Approved for the maintenance of electrical function to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90 (except ALU).
-
- Technical data
-
Technical data

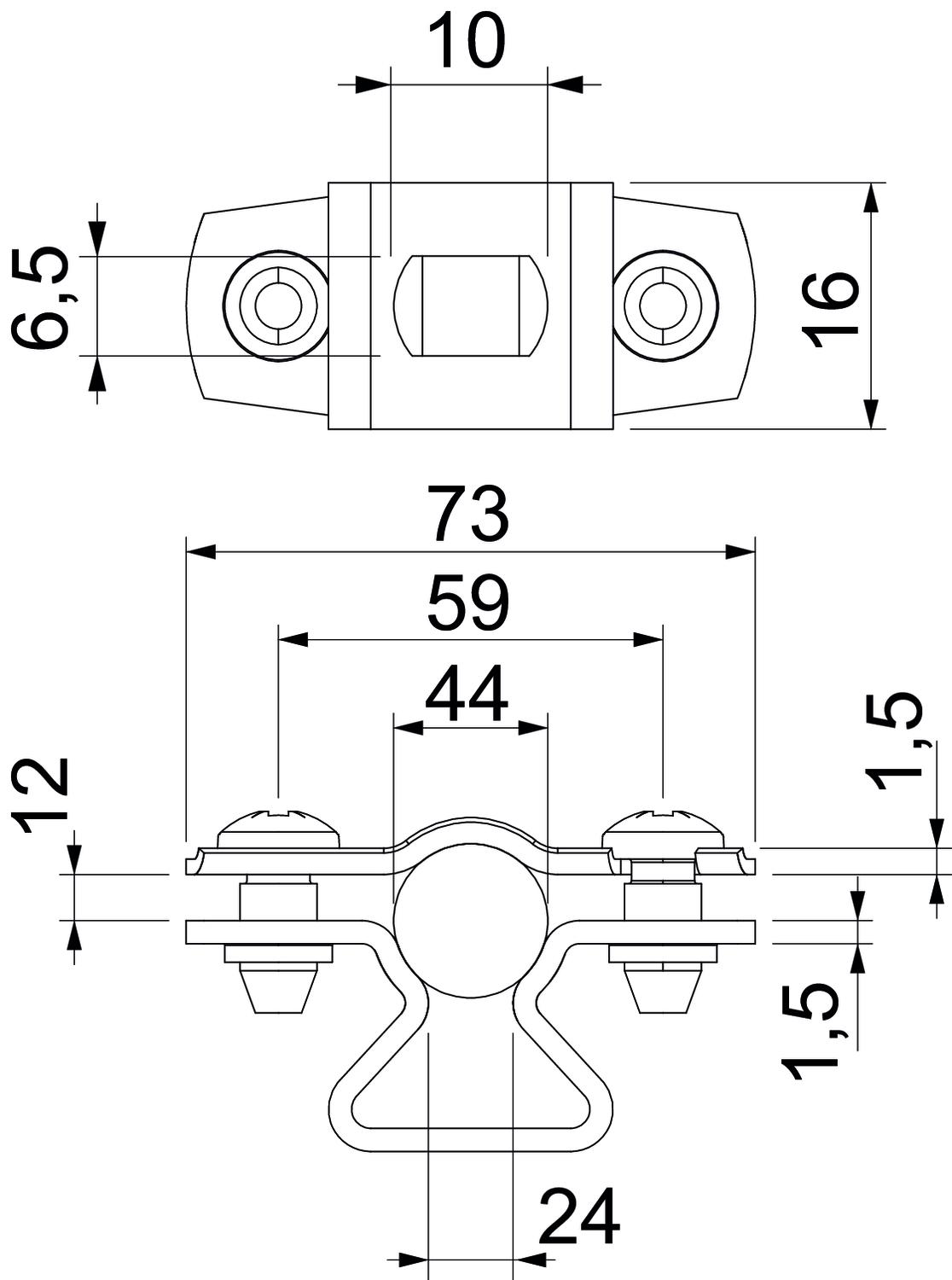

Clamping range D, max. 44 mm Clamping range D, min. 36 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,2941 kg CO₂e / 1 Piece Dimension 36-44mm Dimension A 73 mm Dimension b 16 mm Dimension B 59 mm Dimension D 44 mm Dimension d max. 44 mm Dimension d min. 36 mm Dimension L 10 mm Dimension s 24 mm Dimension t1 (mm) 1,5 Dimension t2 (mm) 1,5 Dimension x 12 mm Distance to the wall yes Fastening type Screw hole For diameter 36 - 44 Halogen-free yes Material Aluminium Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no UV-resistant yes Version for Closed - All types
-
All types
