Product description

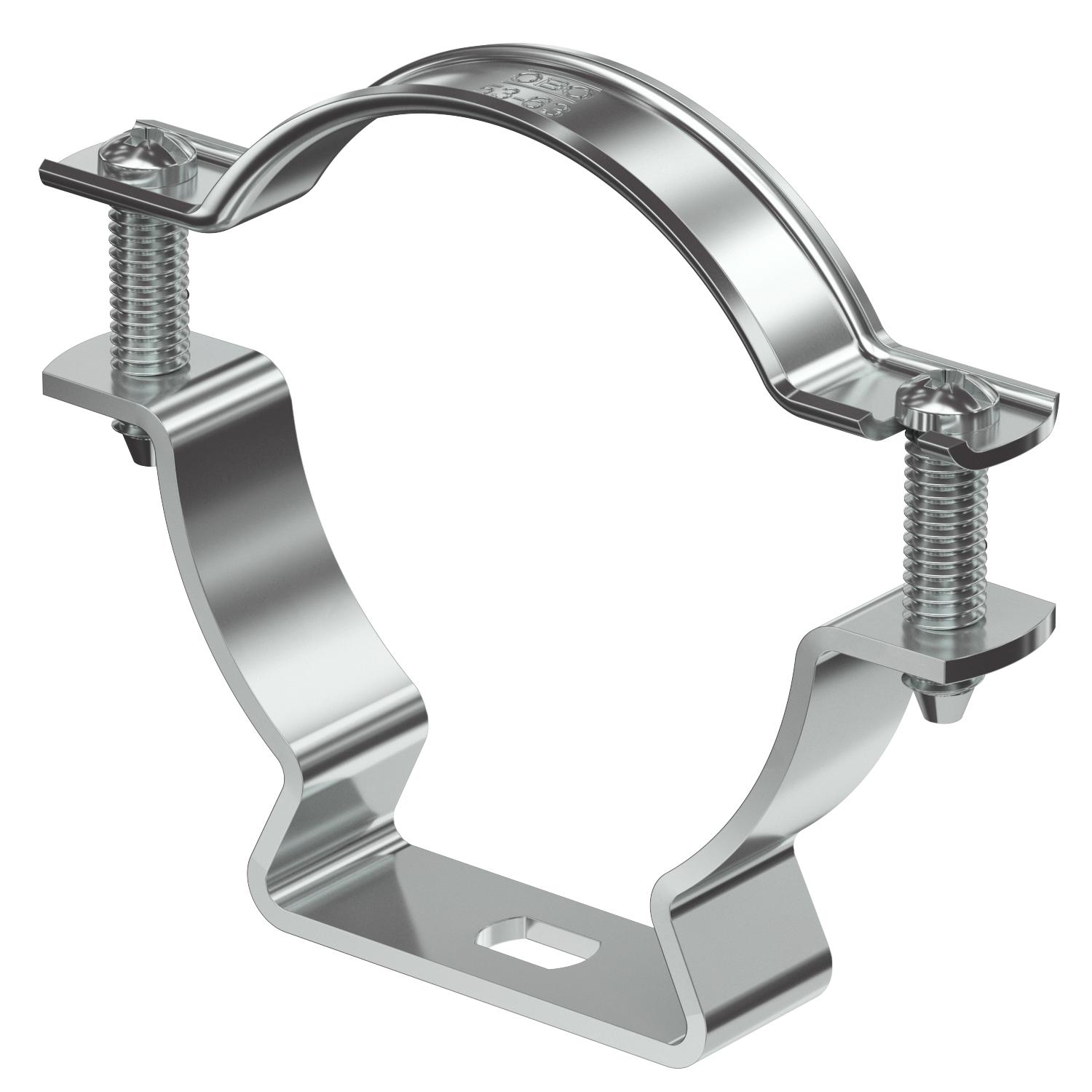

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking upper part. Fastening via slot. From the clip size of 20 suitable for installation with a nail device or bolt-firing device.
Approved for the maintenance of electrical function to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90 (except ALU).
- Technical data
-
Technical data

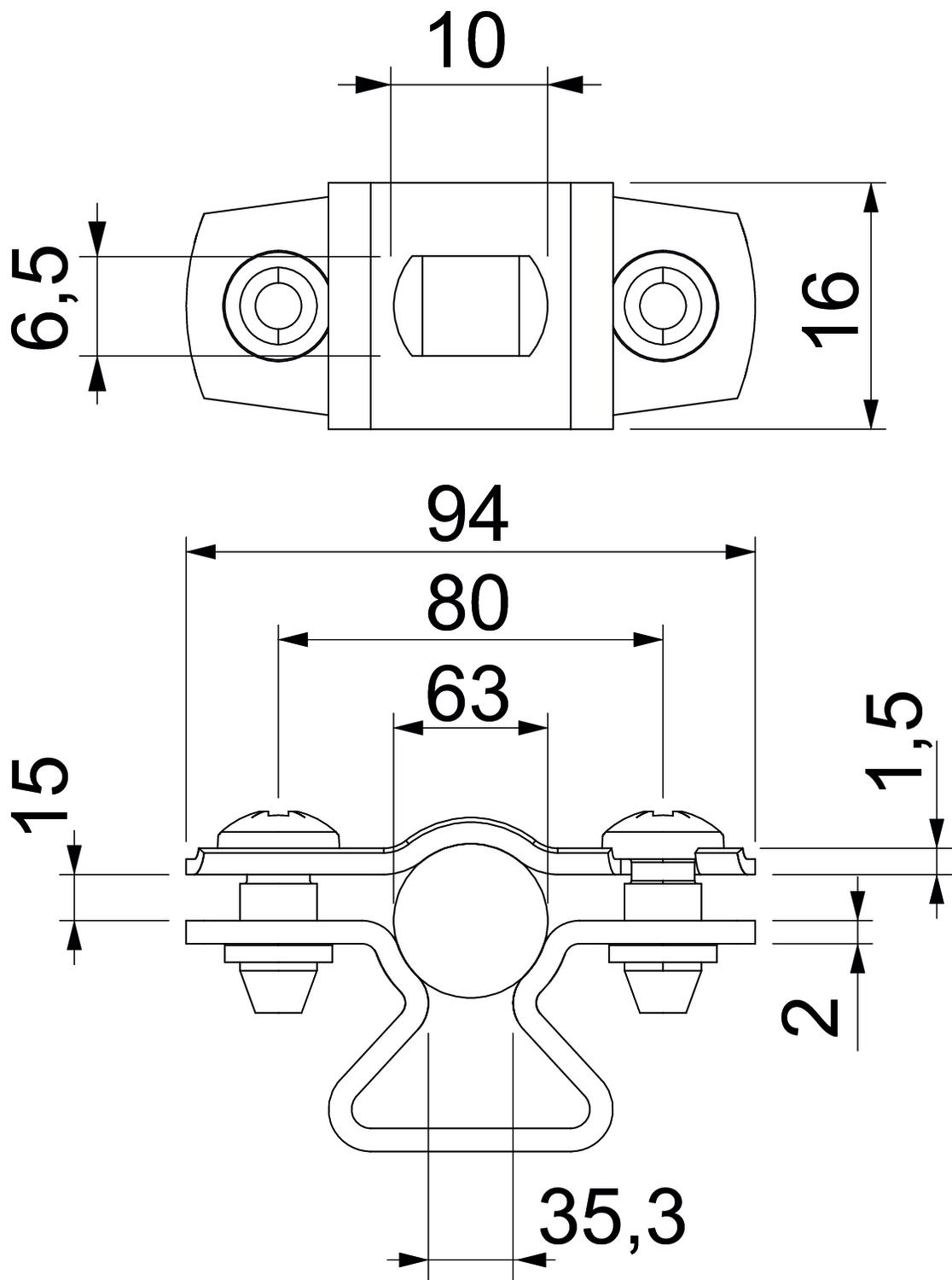

Clamping range D, max. 63 mm Clamping range D, min. 53 mm Dimension 53-63mm Dimension A 94 mm Dimension B 80 mm Dimension b 16 mm Dimension D 63 mm Dimension d max. 63 mm Dimension d min. 53 mm Dimension L 10 mm Dimension s 35,3 mm Dimension t1 (mm) 1,5 Dimension t2 (mm) 2 Dimension x 15 mm Distance to the wall yes Fastening type Screw hole For diameter 53 - 63 Halogen-free yes Material Aluminium Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASL 733 63 ALU / 1362838 , 0.20MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity ASL 733 63 ALU / 1362838 , 0.13MB , pdfREACH Declaration of conformity ASL 733 63 ALU / 1362838 , 0.12MB , pdfRoHS Declaration of conformity ASL 733 63 ALU / 1362838 , 0.12MB , pdf
