Product description

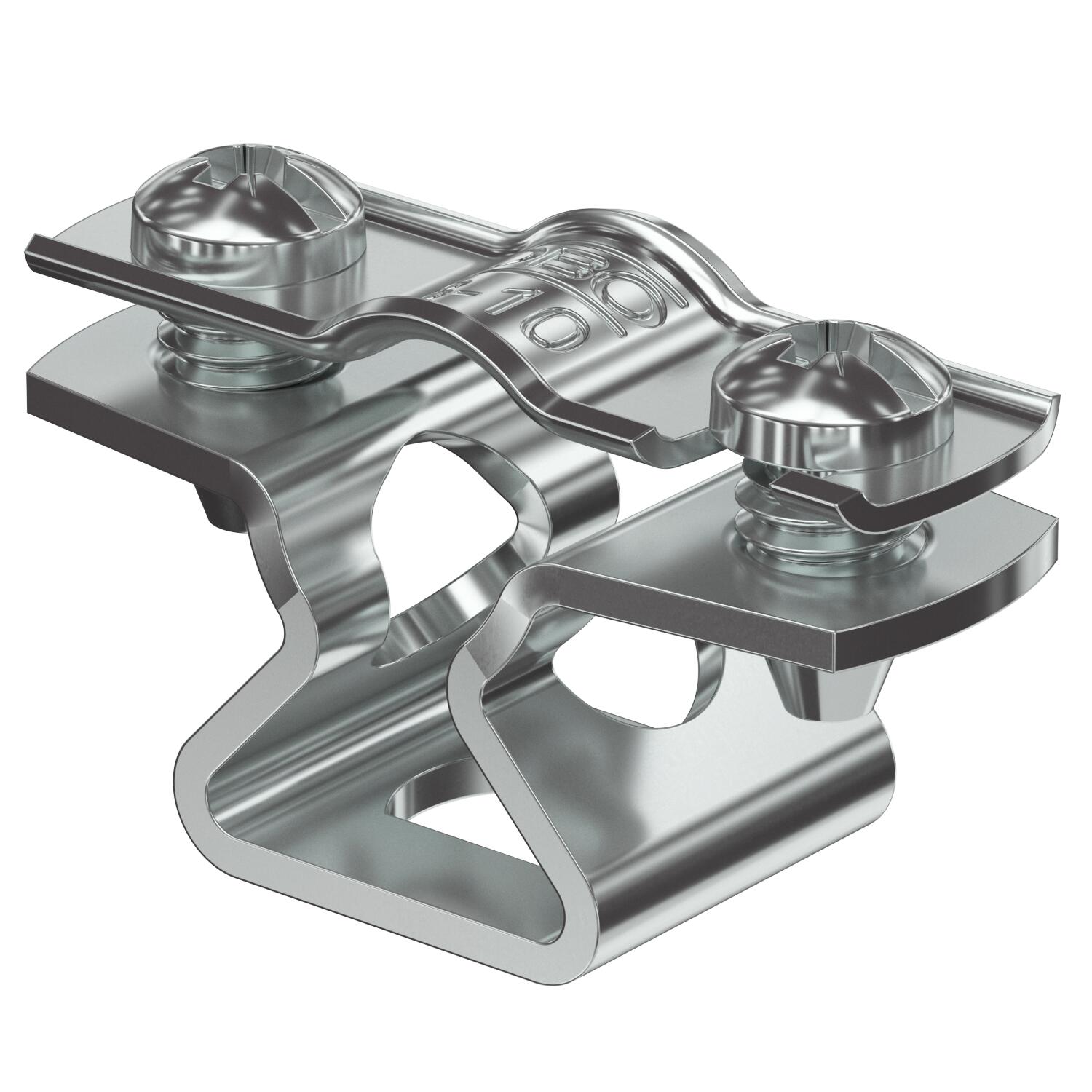

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking upper part. Fastening via slot. From the clip size of 20 suitable for installation with a nail device or bolt-firing device.
Approved for the maintenance of electrical function to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90 (except ALU).
- Technical data
-
Technical data

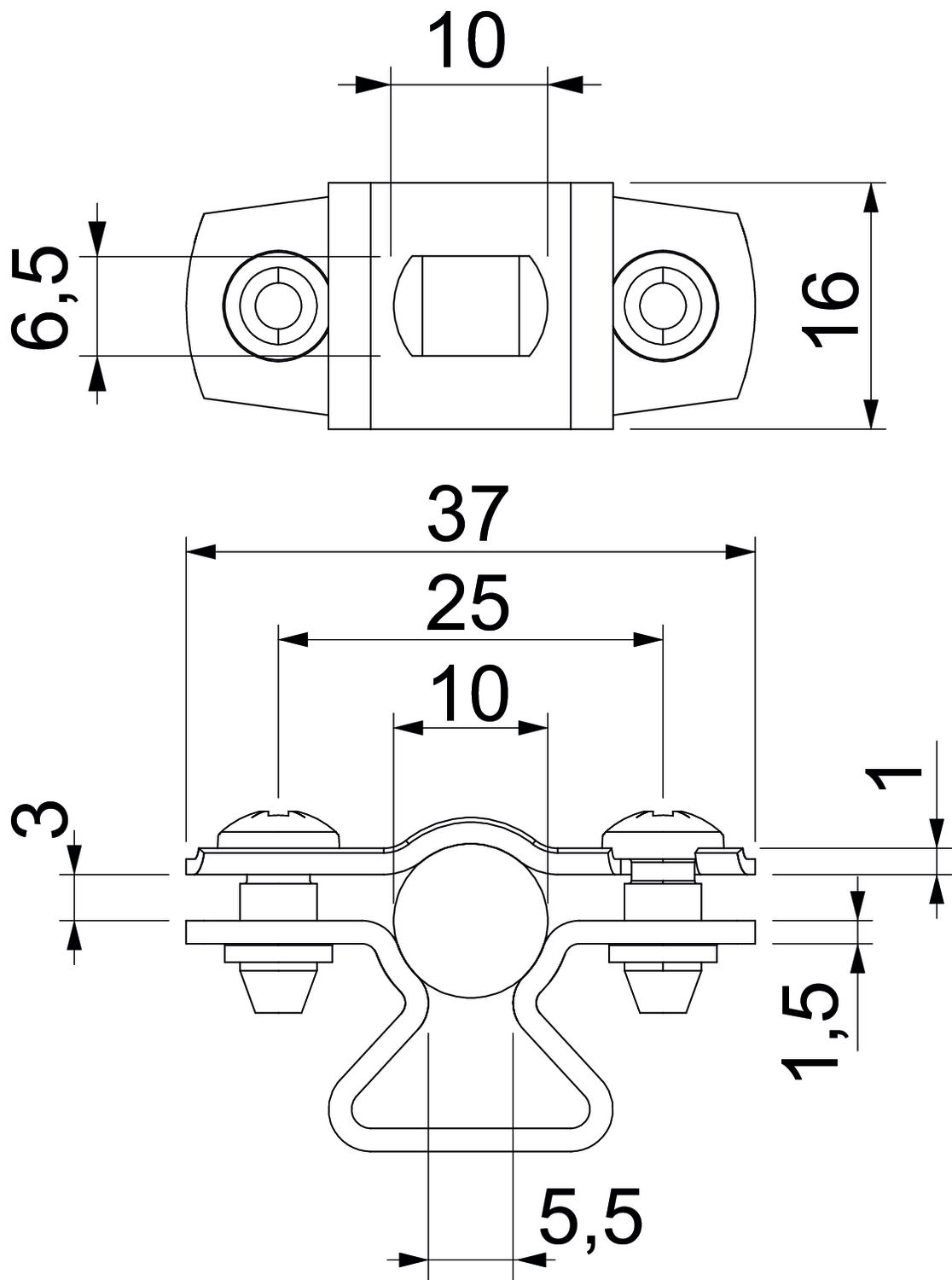

Clamping range D, max. 10 mm Clamping range D, min. 8 mm Dimension 8-10mm Dimension A 37 mm Dimension b 16 mm Dimension B 25 mm Dimension D 10 mm Dimension d max. 10 mm Dimension d min. 8 mm Dimension L 10 mm Dimension s 5,5 mm Dimension t1 (mm) 1 Dimension t2 (mm) 1,5 Dimension x 3 mm Distance to the wall yes Fastening type Screw hole For diameter 8 - 10 Halogen-free yes Material Aluminium Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no UV-resistant yes Version for Closed - All types
-
All types
