- Product description
-

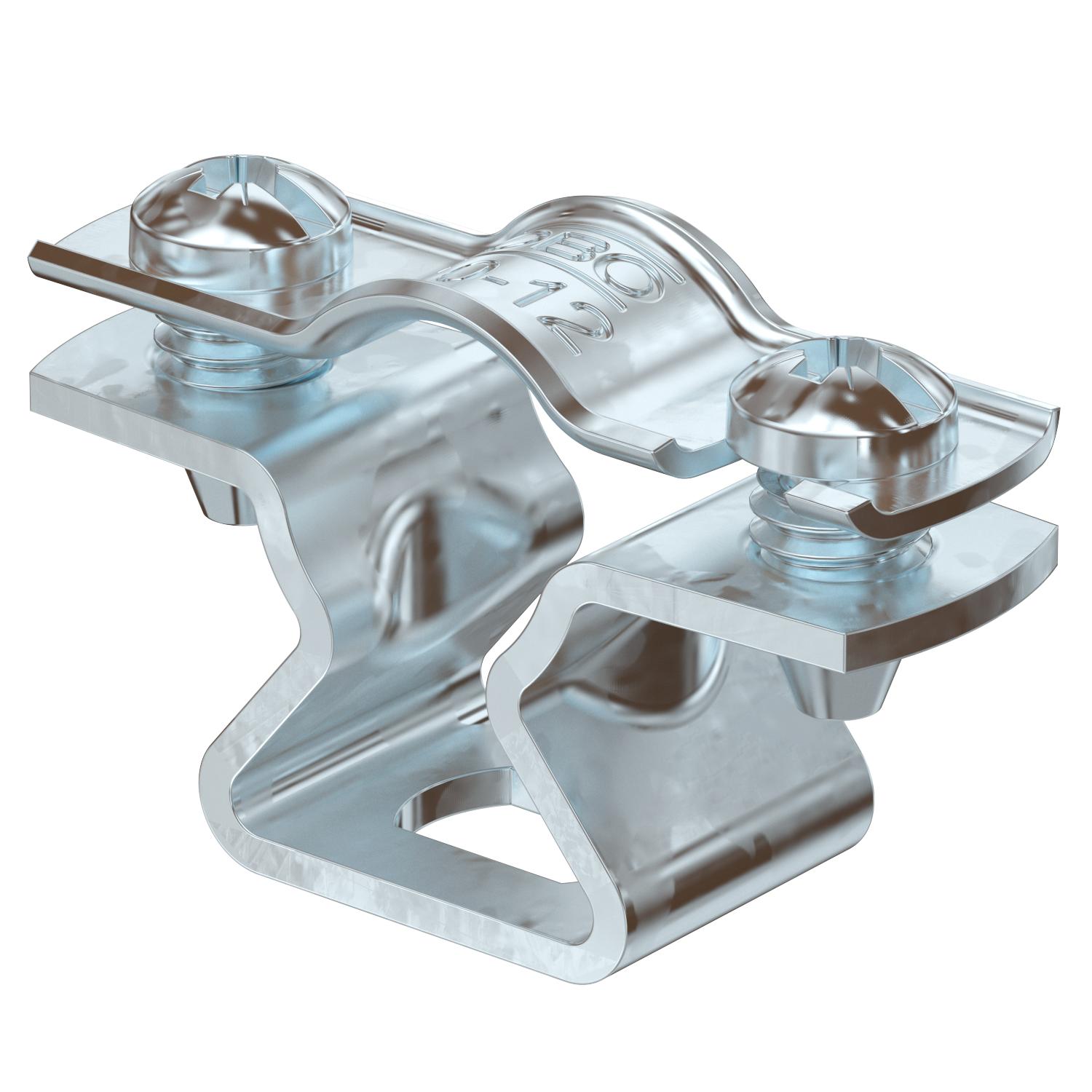

Product descriptionSpacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
- Technical data
-
Technical data

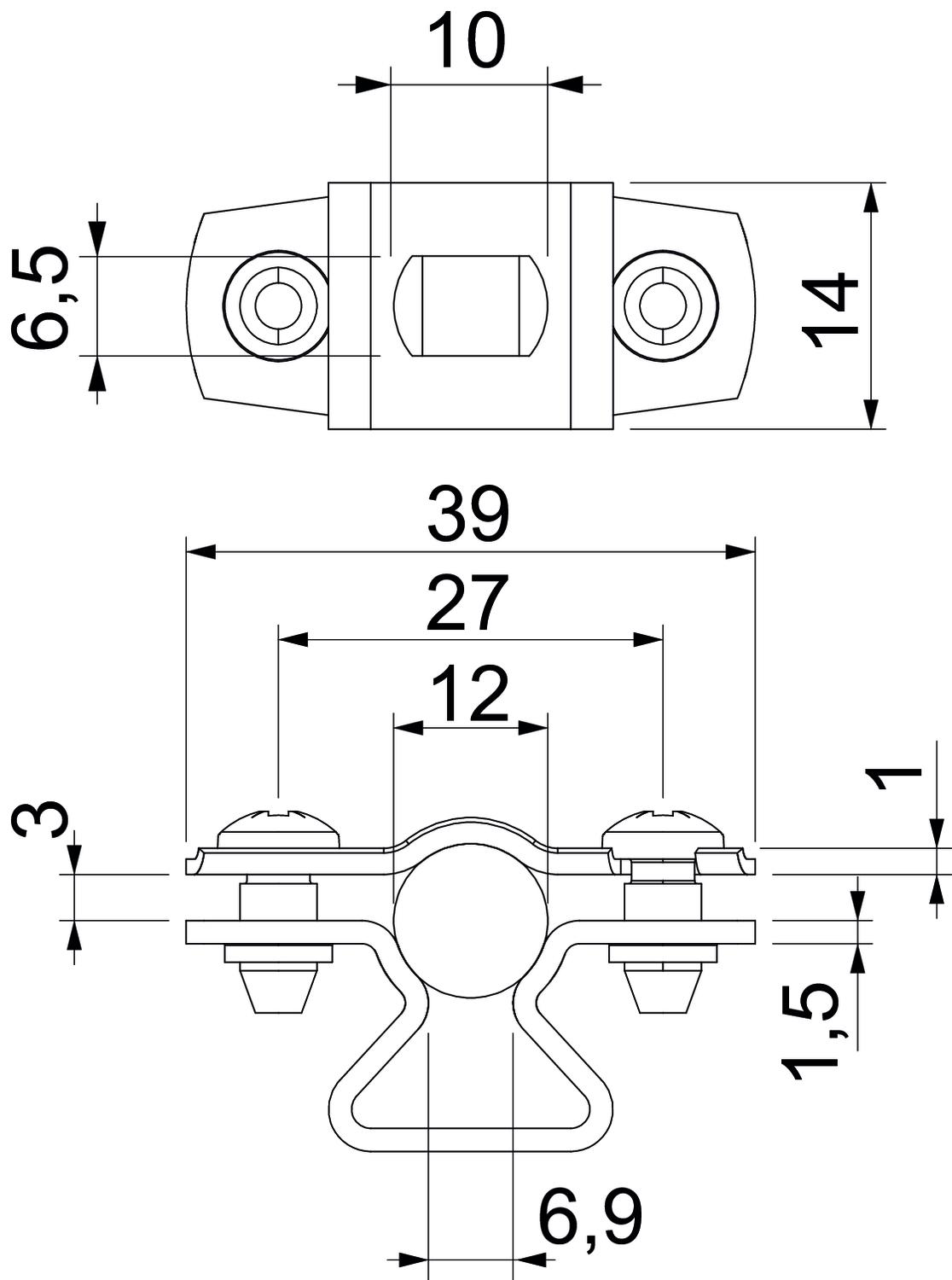

Clamping range D, max. 12 mm Clamping range D, min. 10 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,054 kg CO₂e / 1 Piece Dimension 10-12mm Dimension A 39 mm Dimension B 27 mm Dimension b 14 mm Dimension D 12 mm Dimension d max. 12 mm Dimension d min. 10 mm Dimension L 10 mm Dimension s 6,9 mm Dimension t1 (mm) 1 Dimension t2 (mm) 1,5 Dimension x 3 mm Distance to the wall yes Fastening type Screw hole For diameter 10 - 12 Halogen-free yes Material Steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Hot-dip galvanised UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASL 733 12 FT / 1362706 , 0.28MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity ASL 733 12 FT / 1362706 , 0.13MB , pdfUK Declaration of Conformity ASL 733 12 FT / 1362706 , 0.14MB , pdfREACH Declaration of conformity ASL 733 12 FT / 1362706 , 0.12MB , pdfRoHS Declaration of conformity ASL 733 12 FT / 1362706 , 0.12MB , pdf
