Spacer clip 733 FT

Item no. 1362718 | EAN 4012196599936

1.5 mm
Steel
Hot-dip galvanised
Product description
Product description
Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.

Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

Clamping range D, max. 25 mm
Clamping range D, min. 20 mm
CO₂ Footprint (GWP) Cradle-to-Gate 0,0619 kg CO₂e / 1 Piece
Dimension 20-25mm

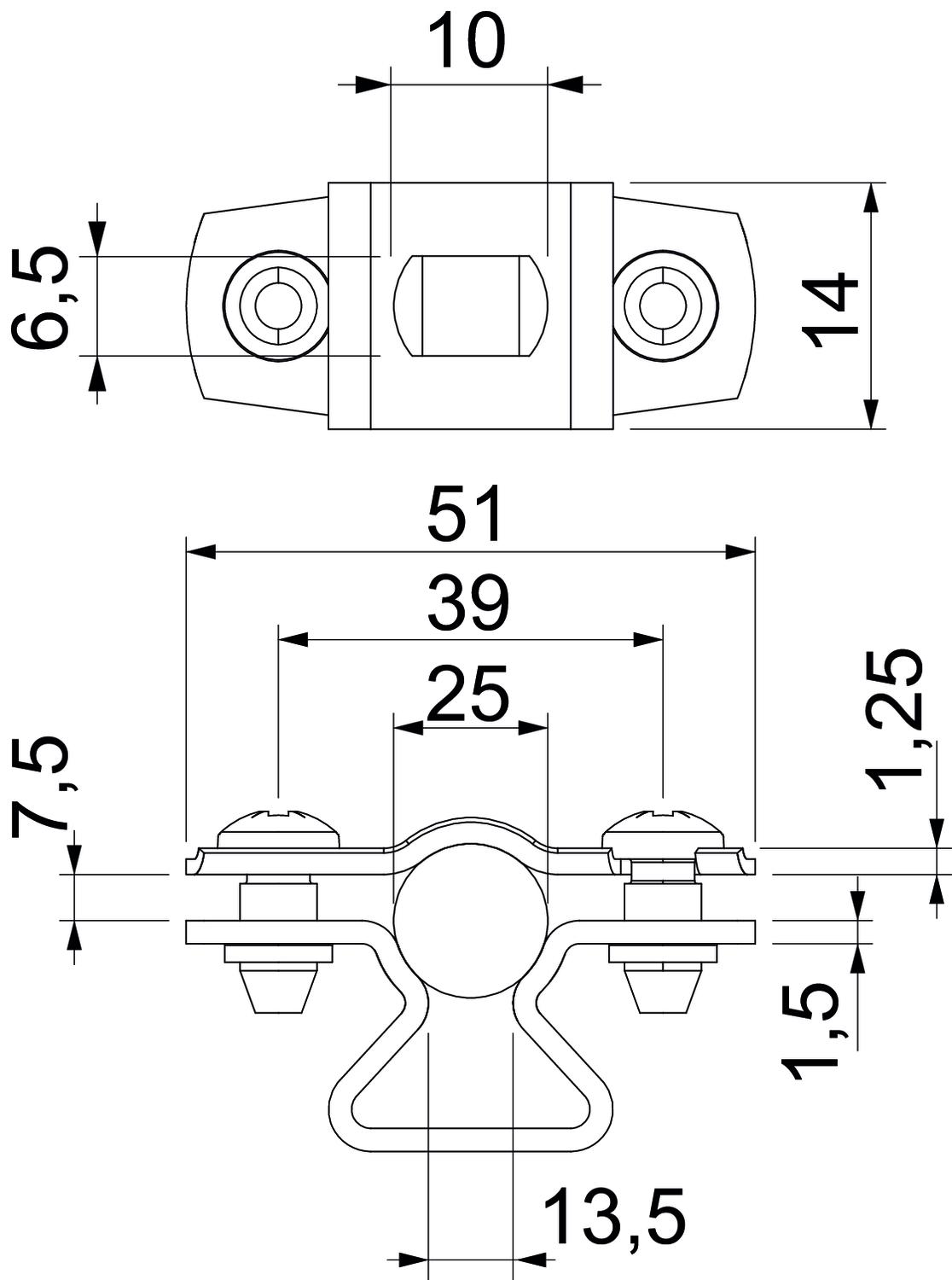

Dimension A 51 mm
Dimension B 39 mm
Dimension b 14 mm
Dimension D 25 mm
Dimension d max. 25 mm
Dimension d min. 20 mm
Dimension L 10 mm
Dimension s 13,5 mm
Dimension t1 (mm) 1,25
Dimension t2 (mm) 1,5
Dimension x 7,5 mm
Distance to the wall yes
Fastening type Screw hole
For diameter 20 - 25
Halogen-free yes
Material Steel
Material thickness 1,5 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area yes
Surface Hot-dip galvanised
UV-resistant yes
Version for Closed
All types

All types

Types Material thickness Clamping range D, min. Clamping range D, max. Material Surface Item no. Quantity SSU
ASL 733 10 FT 1.5 mm 8 mm 10 mm Steel Hot-dip galvanised 1362704
25 piece
ASL 733 12 FT 1.5 mm 10 mm 12 mm Steel Hot-dip galvanised 1362706
25 piece
ASL 733 14 FT 1.5 mm 12 mm 14 mm Steel Hot-dip galvanised 1362708
25 piece
ASL 733 17 FT 1.5 mm 14 mm 17 mm Steel Hot-dip galvanised 1362712
25 piece
ASL 733 20 FT 1.5 mm 17 mm 20 mm Steel Hot-dip galvanised 1362714
25 piece
ASL 733 25 FT 1.5 mm 20 mm 25 mm Steel Hot-dip galvanised 1362718
25 piece
ASL 733 30 FT 1.5 mm 25 mm 30 mm Steel Hot-dip galvanised 1362722
20 piece
ASL 733 36 FT 1.5 mm 30 mm 36 mm Steel Hot-dip galvanised 1362726
20 piece
ASL 733 44 FT 1.5 mm 36 mm 44 mm Steel Hot-dip galvanised 1362730
20 piece
ASL 733 53 FT 1.5 mm 44 mm 53 mm Steel Hot-dip galvanised 1362734
20 piece
ASL 733 63 FT 1.5 mm 53 mm 63 mm Steel Hot-dip galvanised 1362738
20 piece
