Spacer clip 733 FT 1.5 | | 25 | 30 | Steel | Hot-dip galvanised

Spacer clip 733 FT

Item no. 1362722 | EAN 4012196599943

Item no. / Types

Material thickness	1.5 mm

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

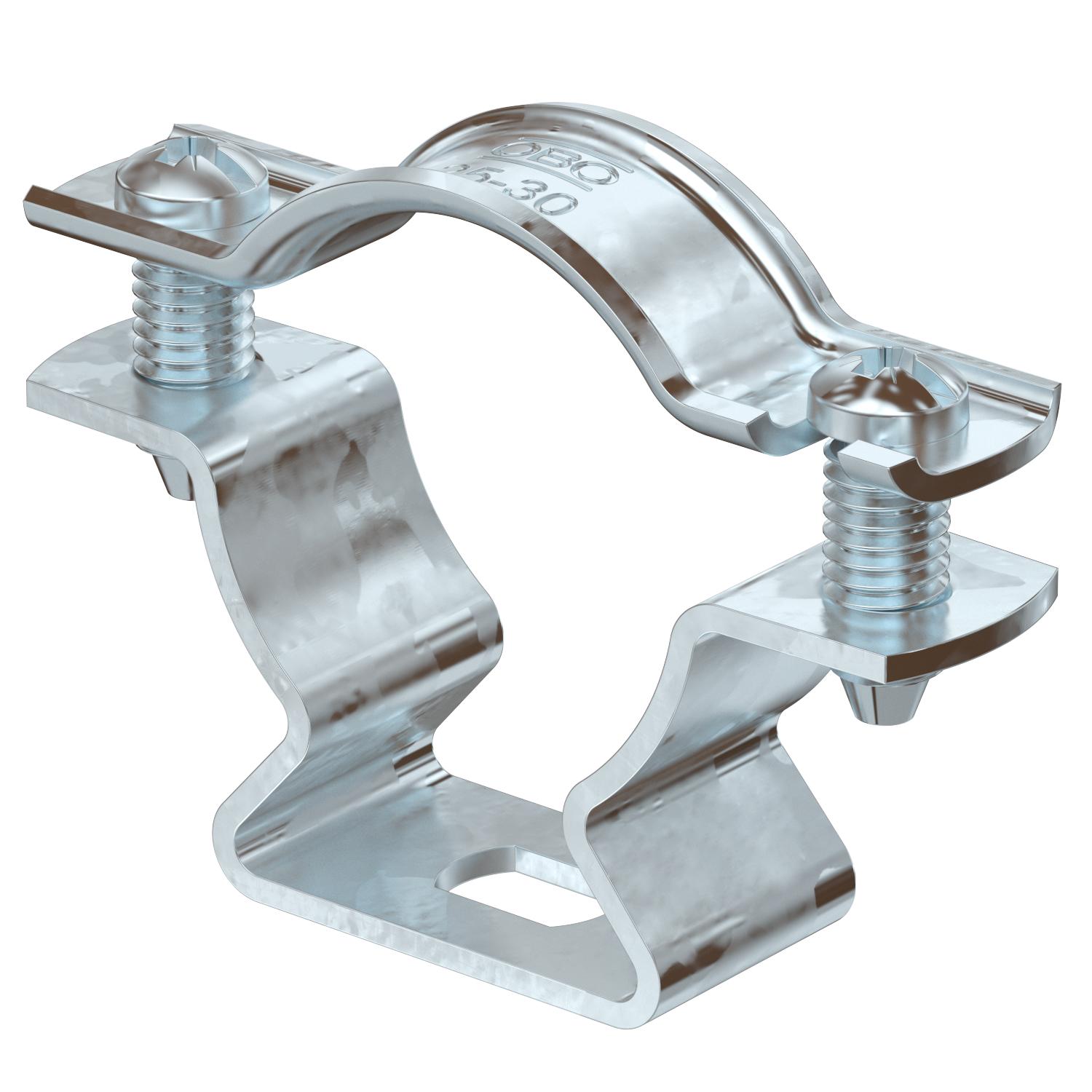

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.

Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.

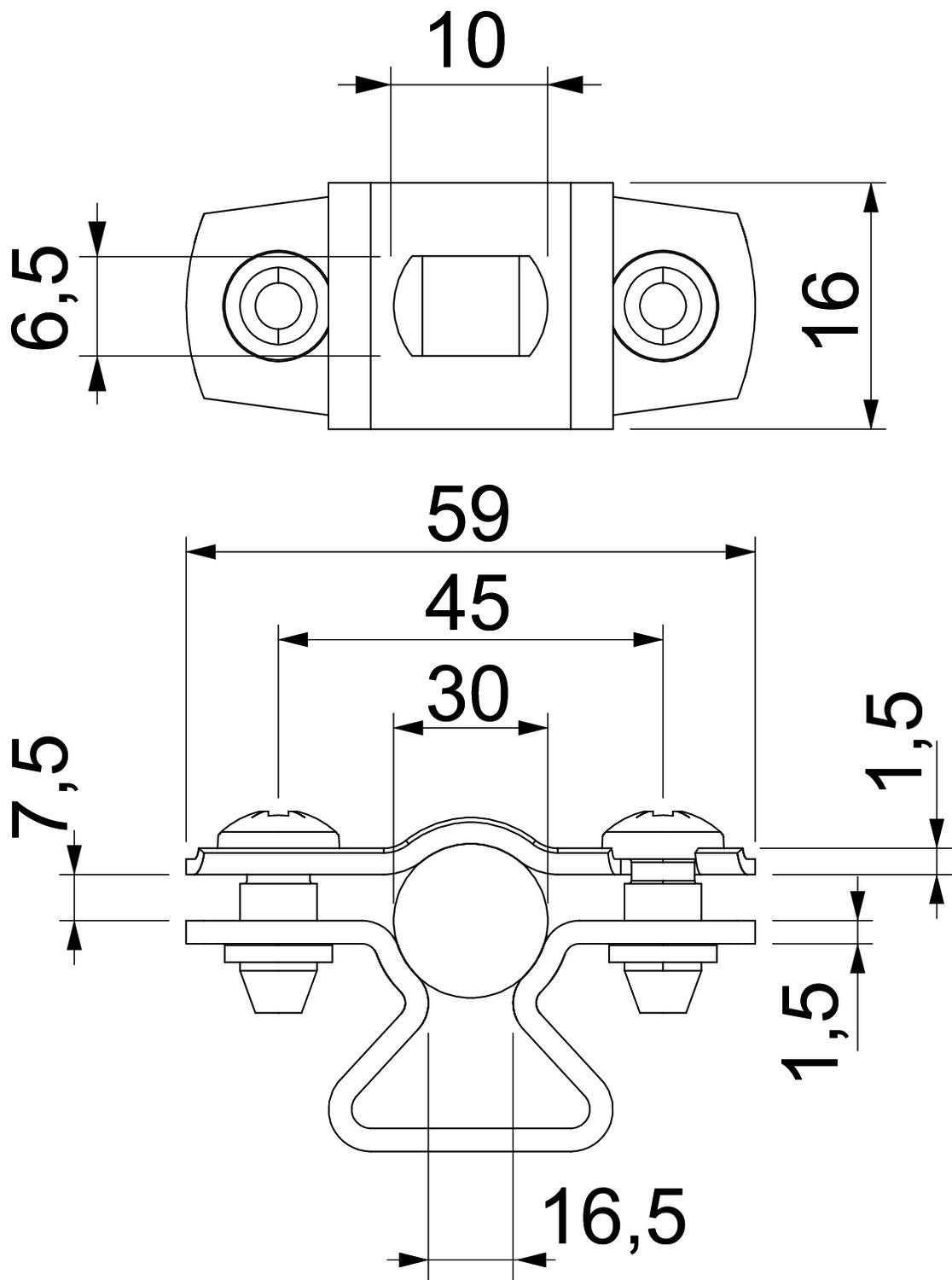

Technical data

Technical data

Clamping range D, max.	30 mm
Clamping range D, min.	25 mm
Dimension	25-30mm
Dimension A	59 mm
Dimension B	45 mm
Dimension b	16 mm
Dimension D	30 mm
Dimension d max.	30 mm
Dimension d min.	25 mm
Dimension L	10 mm
Dimension s	16,5 mm
Dimension t1 (mm)	1,5
Dimension t2 (mm)	1,5

Dimension x	7,5 mm
Distance to the wall	yes
Fastening type	Screw hole
For diameter	25 - 30
Halogen-free	yes
Material	Steel
Material thickness	1,5 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	yes
Surface	Hot-dip galvanised
UV-resistant	yes
Version for	Closed

All types

All types

Types	Material thickness	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
ASL 733 10 FT	1.5 mm	8 mm	10 mm	Steel	Hot-dip galvanised	1362704	piece	25 piece
ASL 733 12 FT	1.5 mm	10 mm	12 mm	Steel	Hot-dip galvanised	1362706	piece	25 piece
ASL 733 14 FT	1.5 mm	12 mm	14 mm	Steel	Hot-dip galvanised	1362708	piece	25 piece
ASL 733 17 FT	1.5 mm	14 mm	17 mm	Steel	Hot-dip galvanised	1362712	piece	25 piece
ASL 733 20 FT	1.5 mm	17 mm	20 mm	Steel	Hot-dip galvanised	1362714	piece	25 piece
ASL 733 25 FT	1.5 mm	20 mm	25 mm	Steel	Hot-dip galvanised	1362718	piece	25 piece
ASL 733 30 FT	1.5 mm	25 mm	30 mm	Steel	Hot-dip galvanised	1362722	piece	20 piece
ASL 733 36 FT	1.5 mm	30 mm	36 mm	Steel	Hot-dip galvanised	1362726	piece	20 piece
ASL 733 44 FT	1.5 mm	36 mm	44 mm	Steel	Hot-dip galvanised	1362730	piece	20 piece
ASL 733 53 FT	1.5 mm	44 mm	53 mm	Steel	Hot-dip galvanised	1362734	piece	20 piece
ASL 733 63 FT	1.5 mm	53 mm	63 mm	Steel	Hot-dip galvanised	1362738	piece	20 piece
