Spacer clip 733 FT
Item no. 1362730 | EAN 4012196599998
- Product description
-

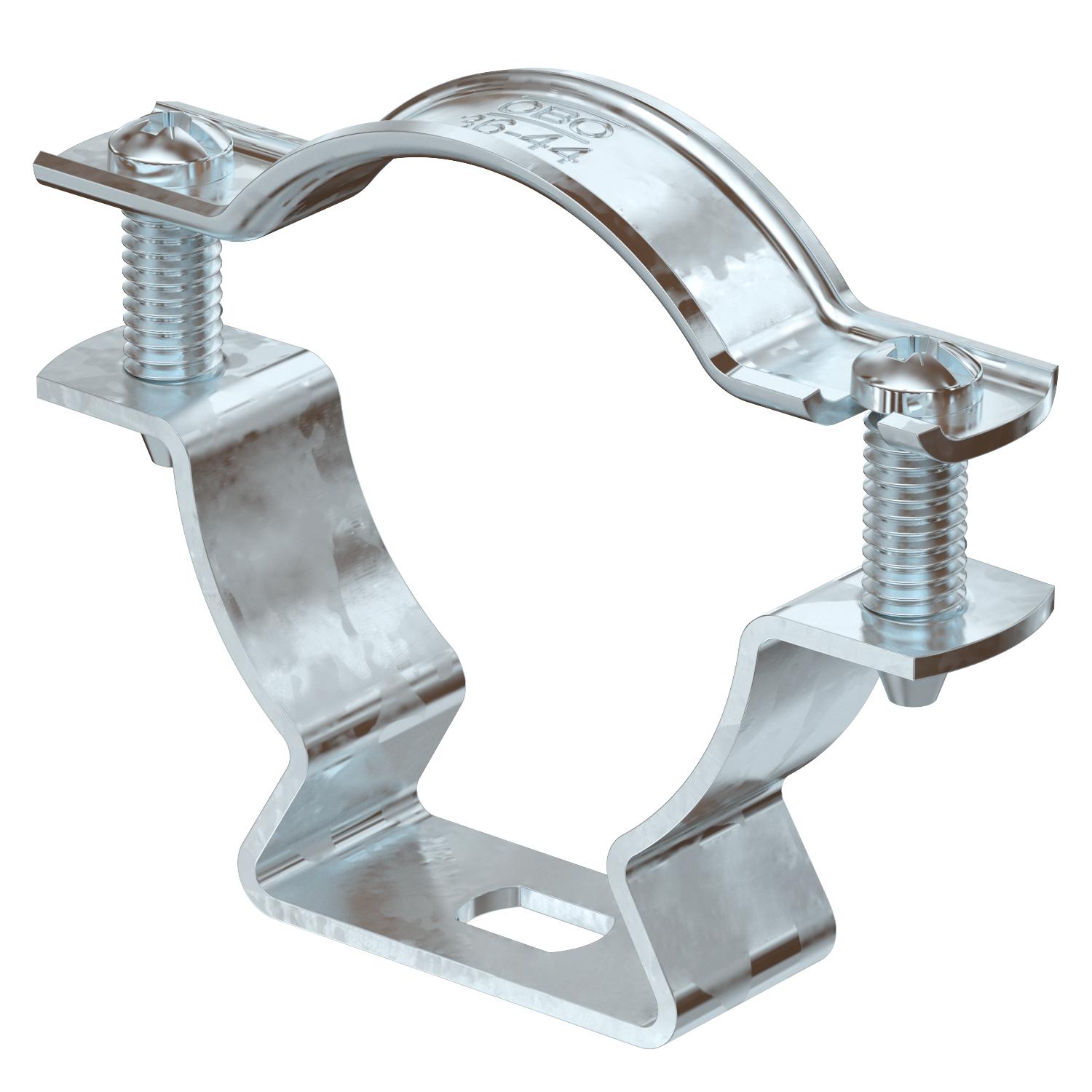

Product descriptionSpacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
-
- Technical data
-
Technical data

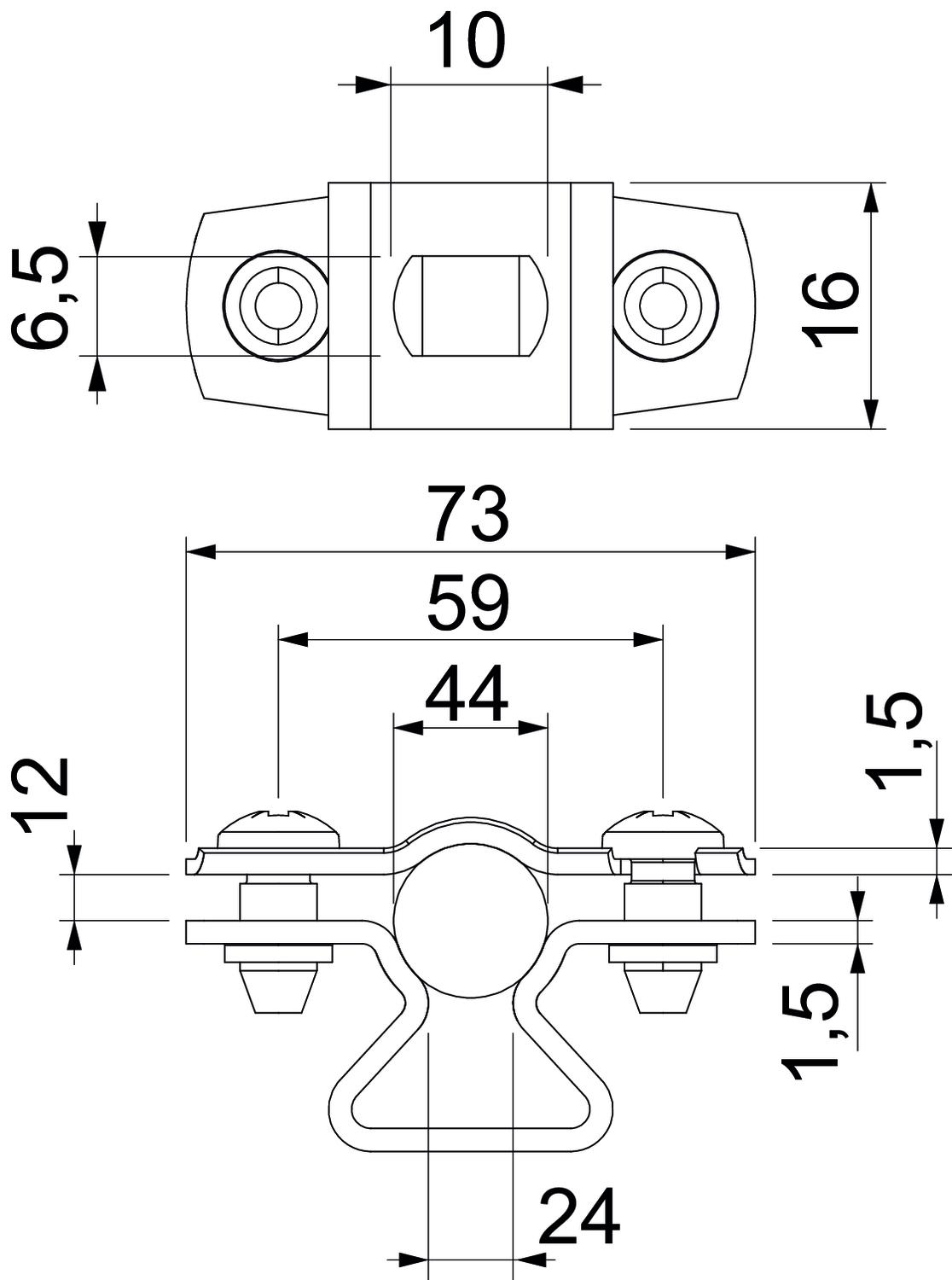

Clamping range D, max. 44 mm Clamping range D, min. 36 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,109 kg CO₂e / 1 Piece Dimension 36-44mm Dimension A 73 mm Dimension B 59 mm Dimension b 16 mm Dimension D 44 mm Dimension d max. 44 mm Dimension d min. 36 mm Dimension L 10 mm Dimension s 24 mm Dimension t1 (mm) 1,5 Dimension t2 (mm) 1,5 Dimension x 12 mm Distance to the wall yes Fastening type Screw hole For diameter 36 - 44 Halogen-free yes Material Steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes Surface Hot-dip galvanised UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASL 733 44 FT / 1362730 , 0.23MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity ASL 733 44 FT / 1362730 , 0.13MB , pdfUK Declaration of Conformity ASL 733 44 FT / 1362730 , 0.14MB , pdfREACH Declaration of conformity ASL 733 44 FT / 1362730 , 0.12MB , pdfRoHS Declaration of conformity ASL 733 44 FT / 1362730 , 0.12MB , pdf
