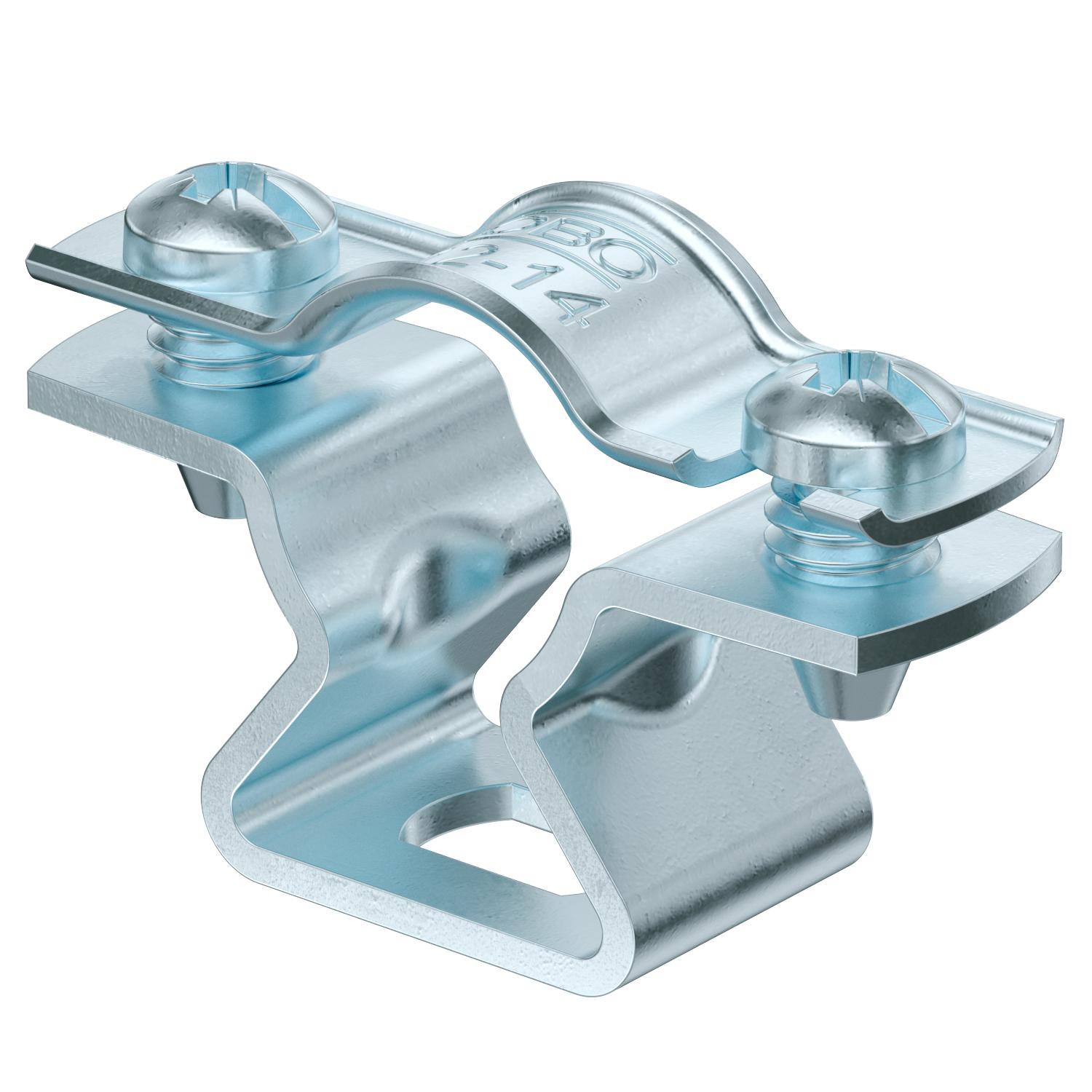

Spacer clip 733 G

Item no. 1362758 | EAN 4012196600045

1.5 mm
Steel
Electrogalvanized
Product description

Product description

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.

Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

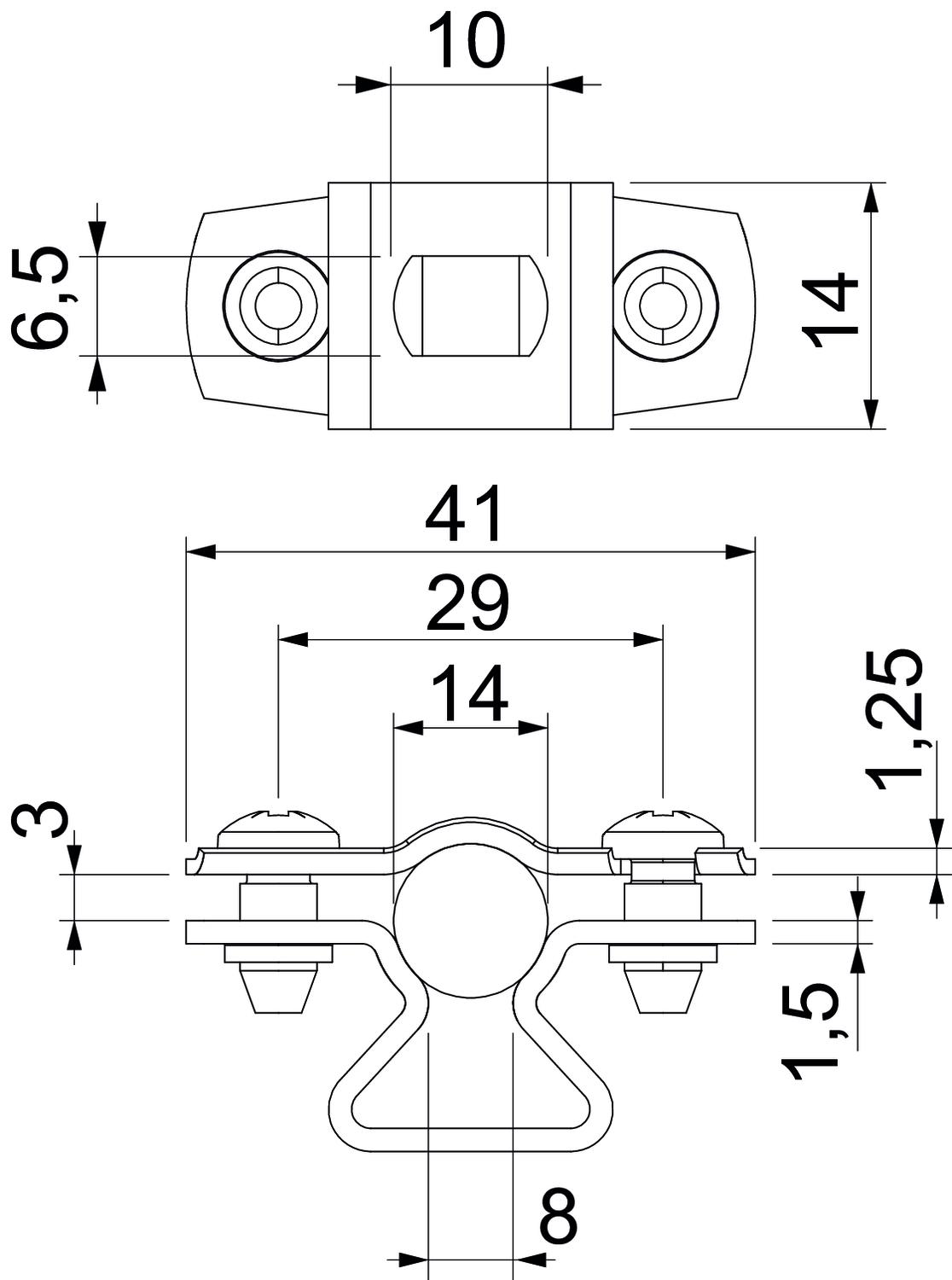

Clamping range D, max. 14 mm
Clamping range D, min. 12 mm
Dimension 12-14mm
Dimension A 41 mm
Dimension B 29 mm
Dimension b 14 mm
Dimension D 14 mm
Dimension d max. 14 mm
Dimension d min. 12 mm
Dimension L 10 mm
Dimension s 8 mm
Dimension t1 (mm) 1,25
Dimension t2 (mm) 1,5
Dimension x 3 mm
Distance to the wall yes
Fastening type Screw hole
For diameter 12 - 14
Halogen-free yes
Material Steel
Material thickness 1,5 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
Surface Electrogalvanized
UV-resistant yes
Version for Closed
All types

All types

Types Material thickness Clamping range D, min. Clamping range D, max. Material Surface Item no. Quantity SSU
ASL 733 10 G 1.5 mm 8 mm 10 mm Steel Electrogalvanized 1362754
25 piece
ASL 733 12 G 1.5 mm 10 mm 12 mm Steel Electrogalvanized 1362756
25 piece
ASL 733 14 G 1.5 mm 12 mm 14 mm Steel Electrogalvanized 1362758
25 piece
ASL 733 17 G 1.5 mm 14 mm 17 mm Steel Electrogalvanized 1362762
25 piece
ASL 733 20 G 1.5 mm 17 mm 20 mm Steel Electrogalvanized 1362764
25 piece
ASL 733 25 G 1.5 mm 20 mm 25 mm Steel Electrogalvanized 1362768
25 piece
ASL 733 30 G 1.5 mm 25 mm 30 mm Steel Electrogalvanized 1362772
20 piece
ASL 733 36 G 1.5 mm 30 mm 36 mm Steel Electrogalvanized 1362776
20 piece
ASL 733 44 G 1.5 mm 36 mm 44 mm Steel Electrogalvanized 1362780
20 piece
ASL 733 53 G 1.5 mm 44 mm 53 mm Steel Electrogalvanized 1362784
20 piece
ASL 733 63 G 1.5 mm 53 mm 63 mm Steel Electrogalvanized 1362788
20 piece
