Spacer clip 733 G 1.5 | | 36 | 44 | Steel | Electrogalvanized

Spacer clip 733 G

Item no. 1362780 | EAN 4012196600106

Item no. / Types

Material thickness	1.5 mm

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Electrogalvanized

Product description

Product description

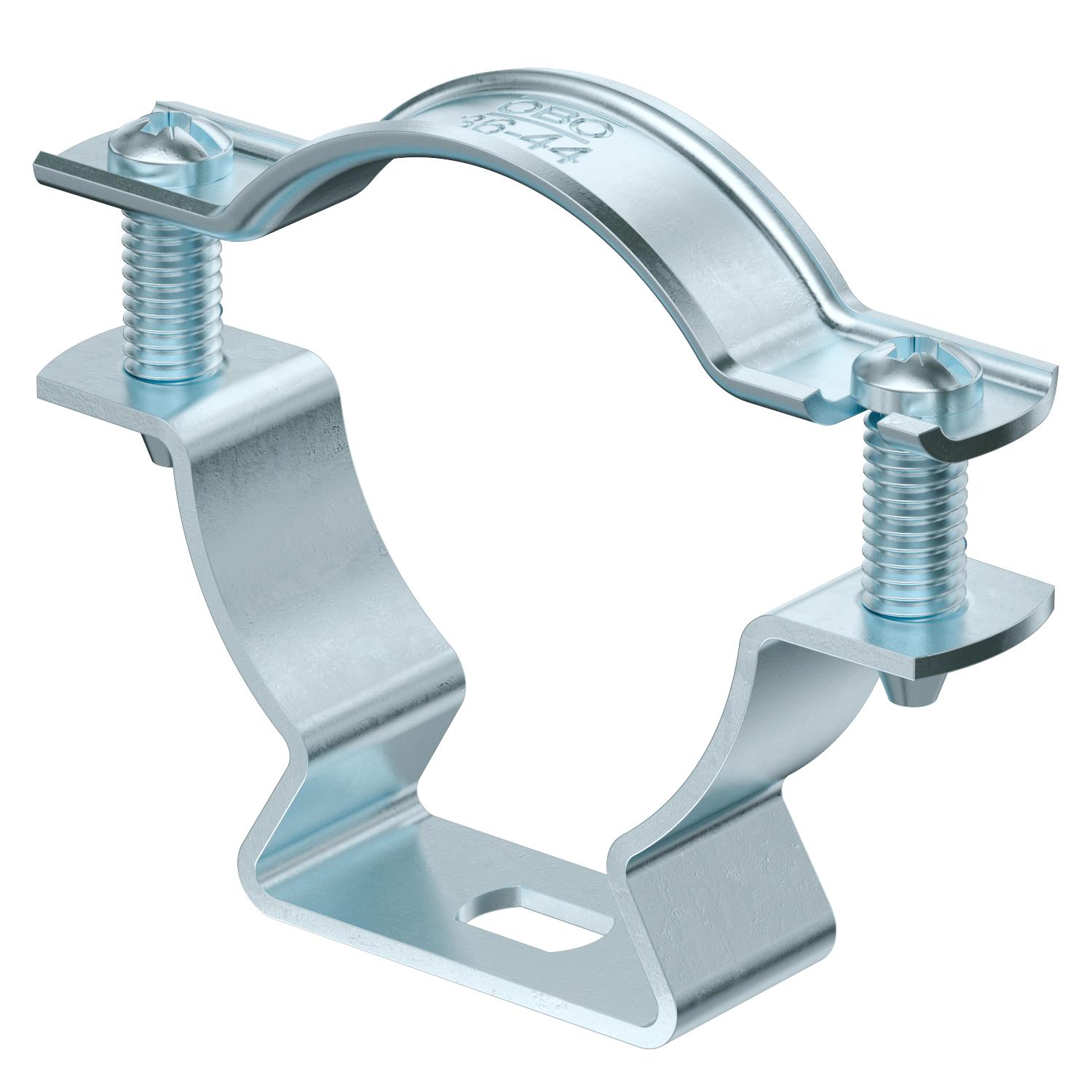

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.

Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.

Technical data

Technical data

Clamping range D, max.	44 mm
Clamping range D, min.	36 mm
Dimension	36-44mm
Dimension A	73 mm
Dimension B	59 mm
Dimension b	16 mm
Dimension D	44 mm
Dimension d max.	44 mm
Dimension d min.	36 mm
Dimension L	10 mm
Dimension s	24 mm
Dimension t1 (mm)	1,5
Dimension t2 (mm)	1,5

Dimension x	12 mm
Distance to the wall	yes
Fastening type	Screw hole
For diameter	36 - 44
Halogen-free	yes
Material	Steel
Material thickness	1,5 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	yes
Surface	Electrogalvanized
UV-resistant	yes
Version for	Closed

All types

All types

Types	Material thickness	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
ASL 733 10 G	1.5 mm	8 mm	10 mm	Steel	Electrogalvanized	1362754	piece	25 piece
ASL 733 12 G	1.5 mm	10 mm	12 mm	Steel	Electrogalvanized	1362756	piece	25 piece
ASL 733 14 G	1.5 mm	12 mm	14 mm	Steel	Electrogalvanized	1362758	piece	25 piece
ASL 733 17 G	1.5 mm	14 mm	17 mm	Steel	Electrogalvanized	1362762	piece	25 piece
ASL 733 20 G	1.5 mm	17 mm	20 mm	Steel	Electrogalvanized	1362764	piece	25 piece
ASL 733 25 G	1.5 mm	20 mm	25 mm	Steel	Electrogalvanized	1362768	piece	25 piece
ASL 733 30 G	1.5 mm	25 mm	30 mm	Steel	Electrogalvanized	1362772	piece	20 piece
ASL 733 36 G	1.5 mm	30 mm	36 mm	Steel	Electrogalvanized	1362776	piece	20 piece
ASL 733 44 G	1.5 mm	36 mm	44 mm	Steel	Electrogalvanized	1362780	piece	20 piece
ASL 733 53 G	1.5 mm	44 mm	53 mm	Steel	Electrogalvanized	1362784	piece	20 piece
ASL 733 63 G	1.5 mm	53 mm	63 mm	Steel	Electrogalvanized	1362788	piece	20 piece
