Spacer for flat conductor, with polyamide base 60 | max. FL30
morepic-1 morepic-2 video-1

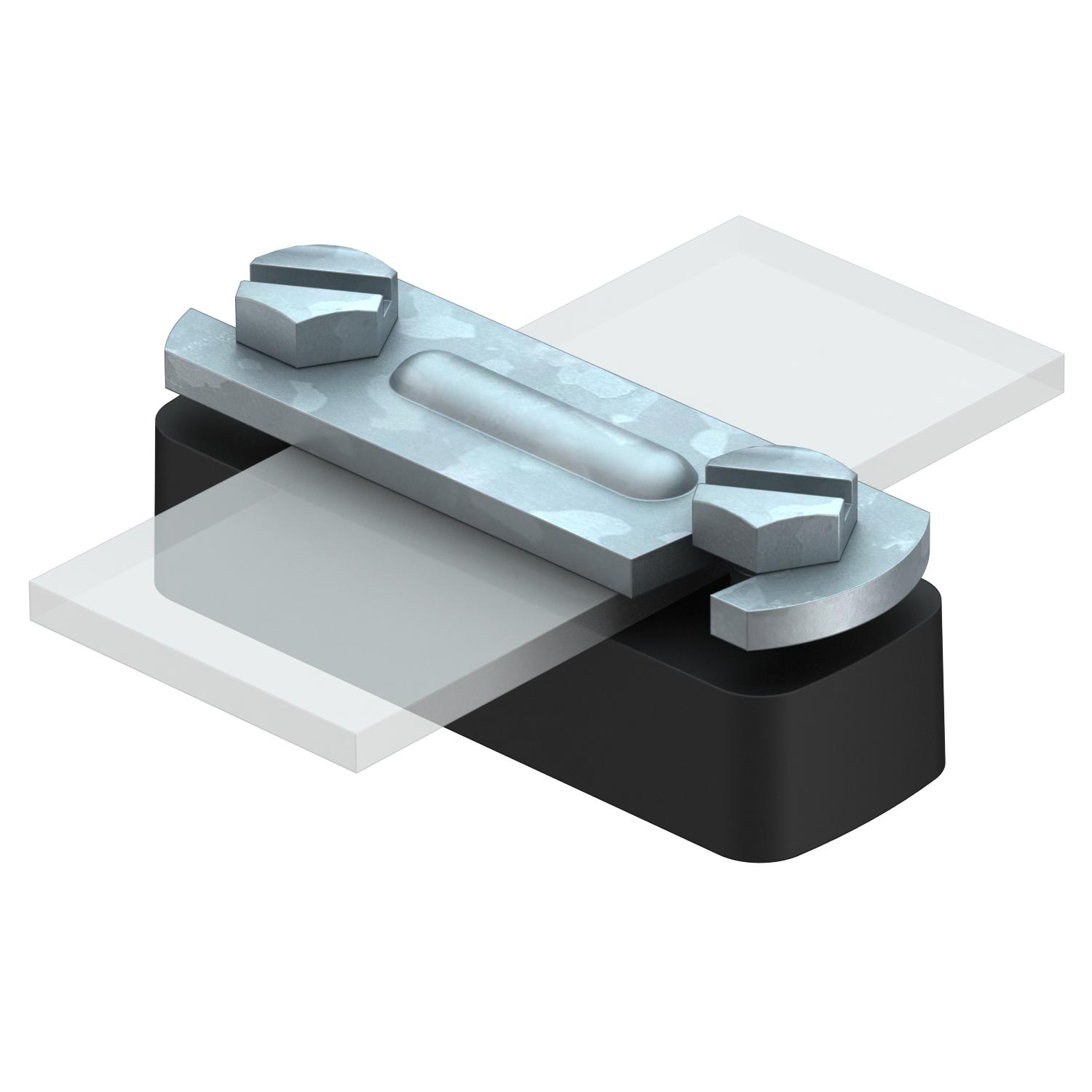

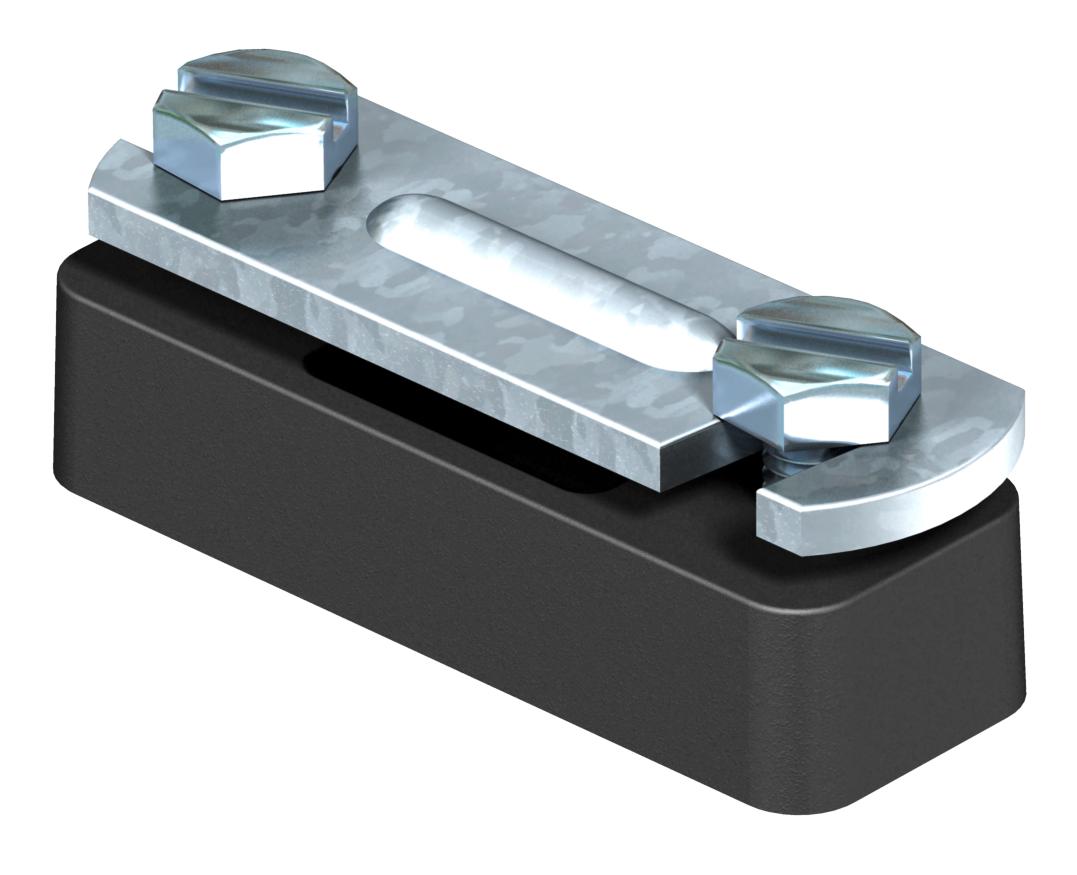

Spacer for flat conductor, with polyamide base

Item no. 5033039 | EAN 4012195384434

5033039 / 833 35
60 mm
max. FL30 mm
Product description
Product description
• Fit: FL 30
• With mounting hole 6.2 x 22 mm
• With 2 cylinder bolts M6 x 16 and over-piece from hot-dip galvanised steel
• Bottom section from polyamide, black
Technical data

Technical data

Dimension 35mm
Dimension B 60 mm
Fit max. FL30 mm
Intermediate plate no
Material Steel
Surface Hot-dip galvanised
All types

All types

Types Dimension B Fit Item no. Quantity SSU
833 35 60 mm max. FL30 mm 5033039
25 piece
