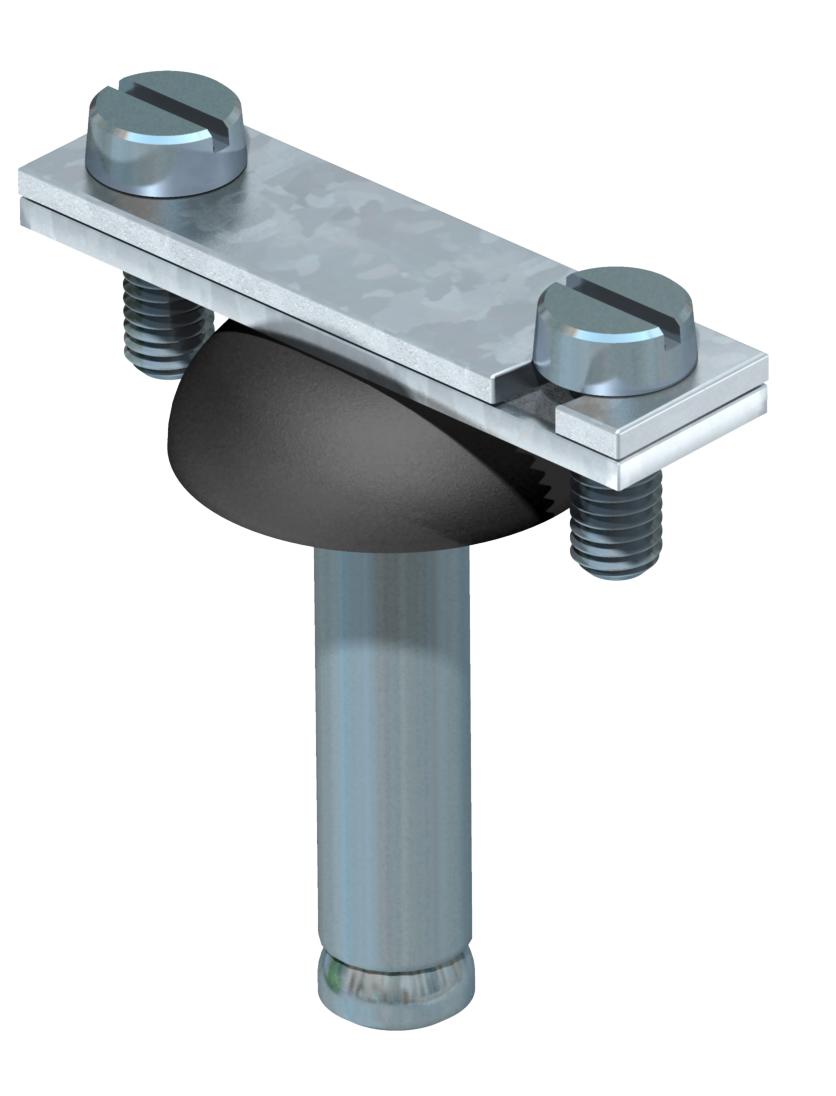

Spacer for flat conductor, with steel spreading anchor Ø 10

Item no. / Types

Fit

Product description

Product description

• Fit: FL 30 and FL 40
• With steel straddling dowel Ø 10 mm, spacer and 2 cylinder bolts M5 x 14 (G)

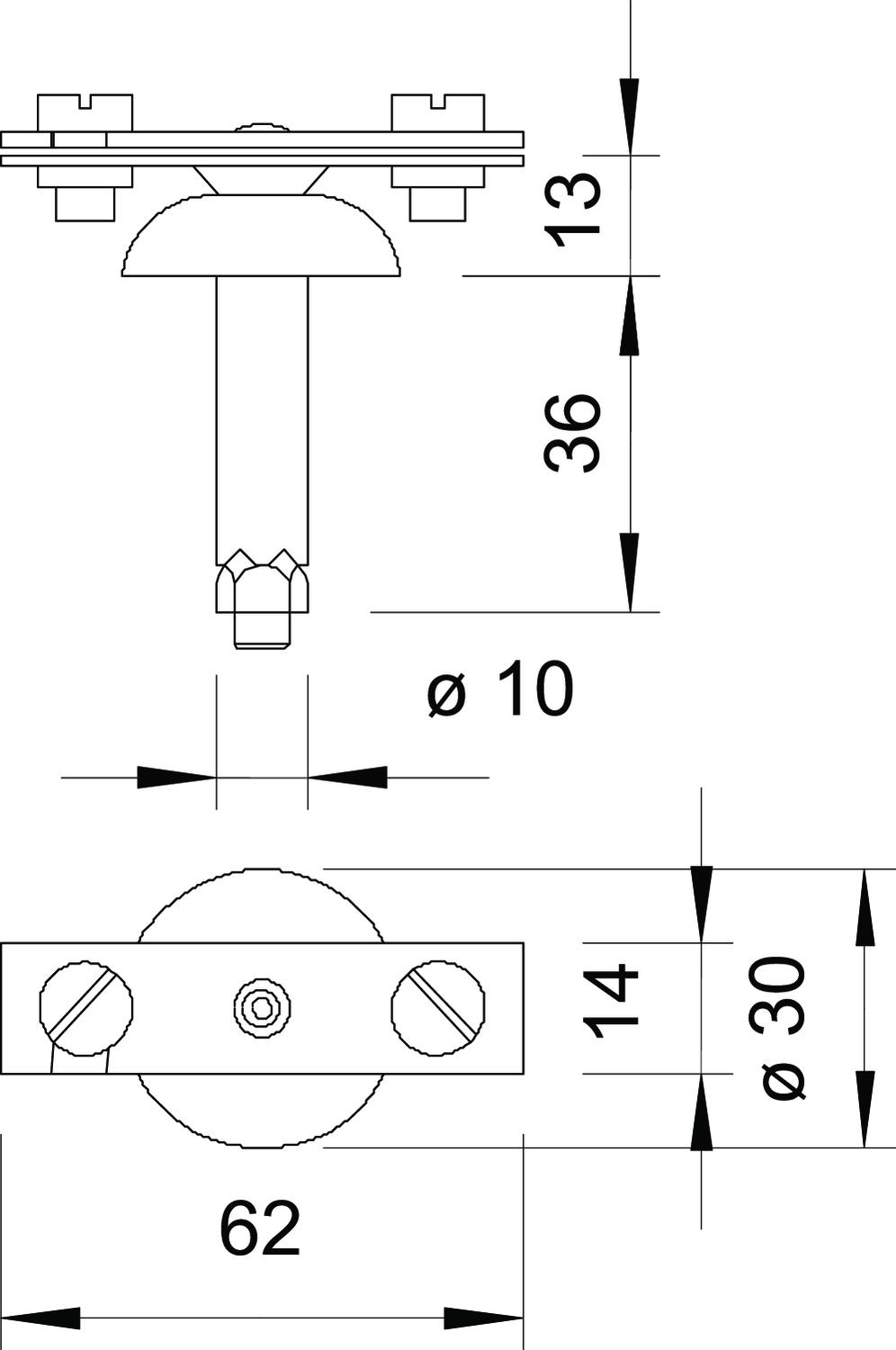

Technical data

Dimension	40mm
Fit	max. FL40 mm

Material	Steel
Surface	Electrogalvanized

Dimension B	62 mm

All types

Types	Fit	Item no.	Quantity	SSU
710 30	max. FL30 mm	5028035	piece	25 piece
710 40	max. FL40 mm	5028043	piece	25 piece

Downloads

Data sheet 710 40 / 5028043 , 0.19MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

710 40 / 5028043
