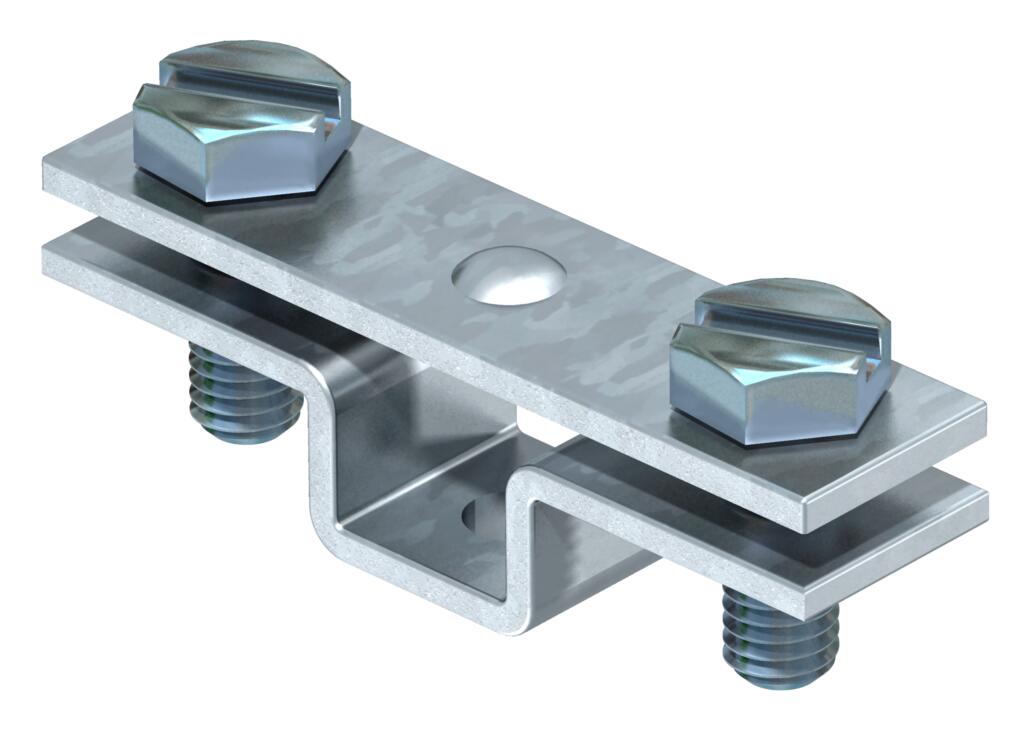

Spacer for flat conductor, with threaded connection M6
Item no. 5032237 | EAN 4012195383956
- Product description
-
Product description• Fit: FL 30 and FL 40
• With attaching thread M6 and 2 hexagonal bolts M6 x 16 (F)
- Technical data
-
Technical data

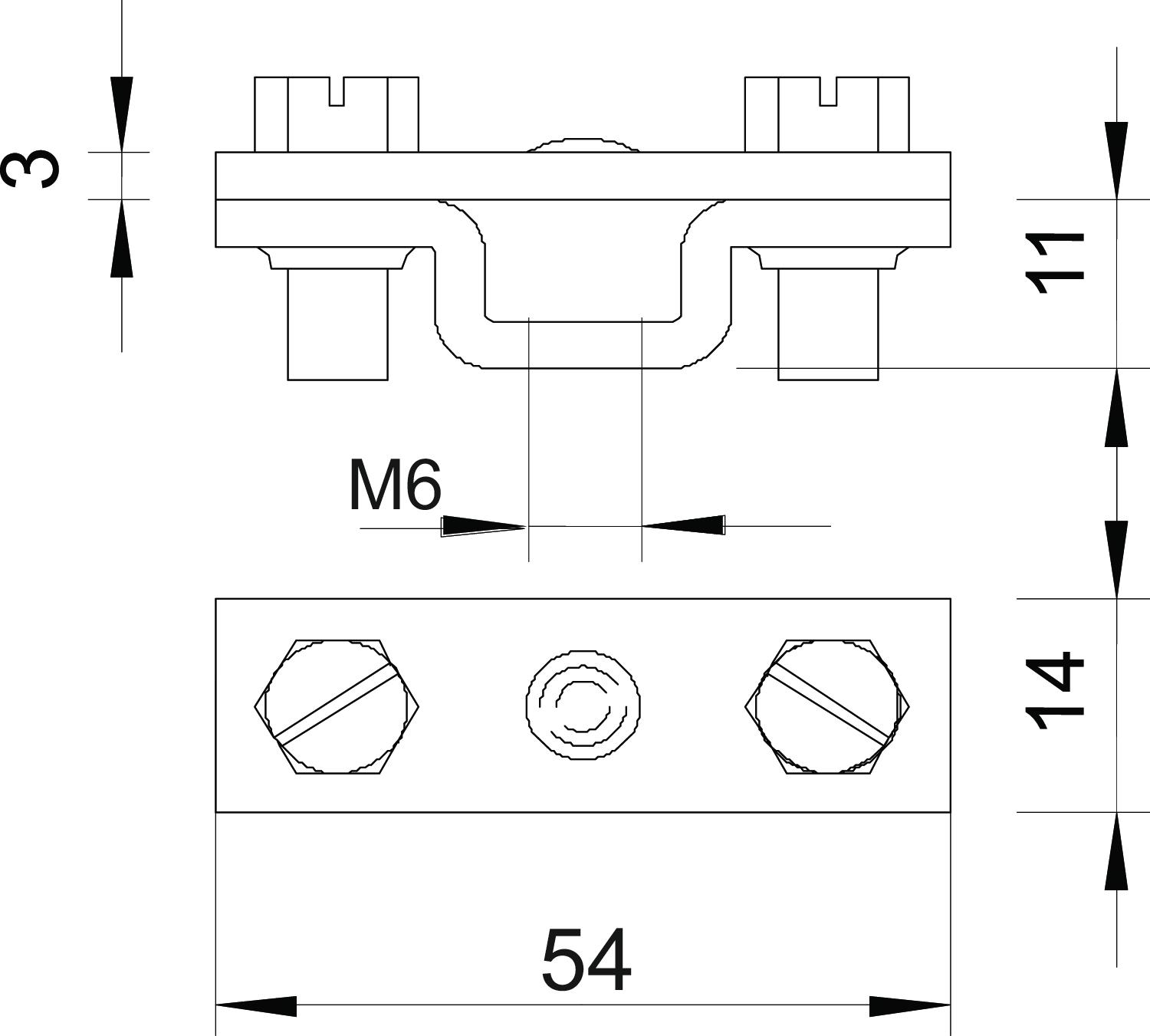

Dimension 30mm Dimension B 54 mm Fit max. FL30 mm Intermediate plate no Material Steel Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet 831 30 M6 / 5032237 , 0.16MB , pdfEU declaration of conformity 831 30 M6 / 5032237 , 0.06MB , pdf
