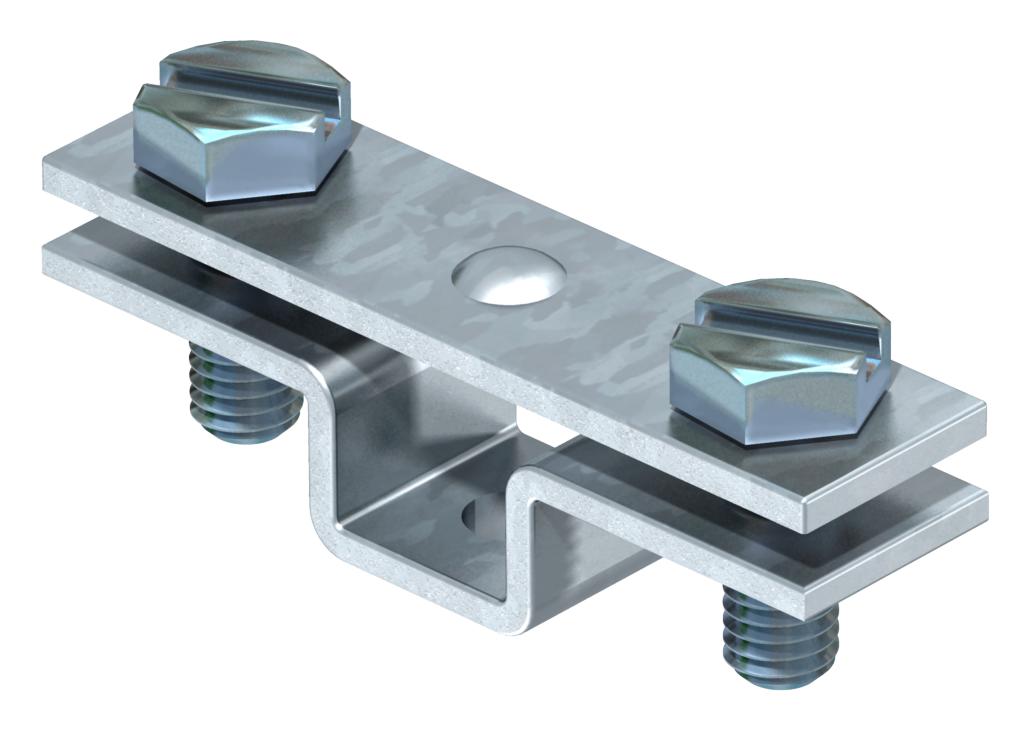

Spacer for flat conductor, with threaded connection M6

Item no. 5032245 | EAN 4012195384014

Product description

Product description

• Fit: FL 30 and FL 40
• With attaching thread M6 and 2 hexagonal bolts M6 x 16 (F)
Technical data

Technical data

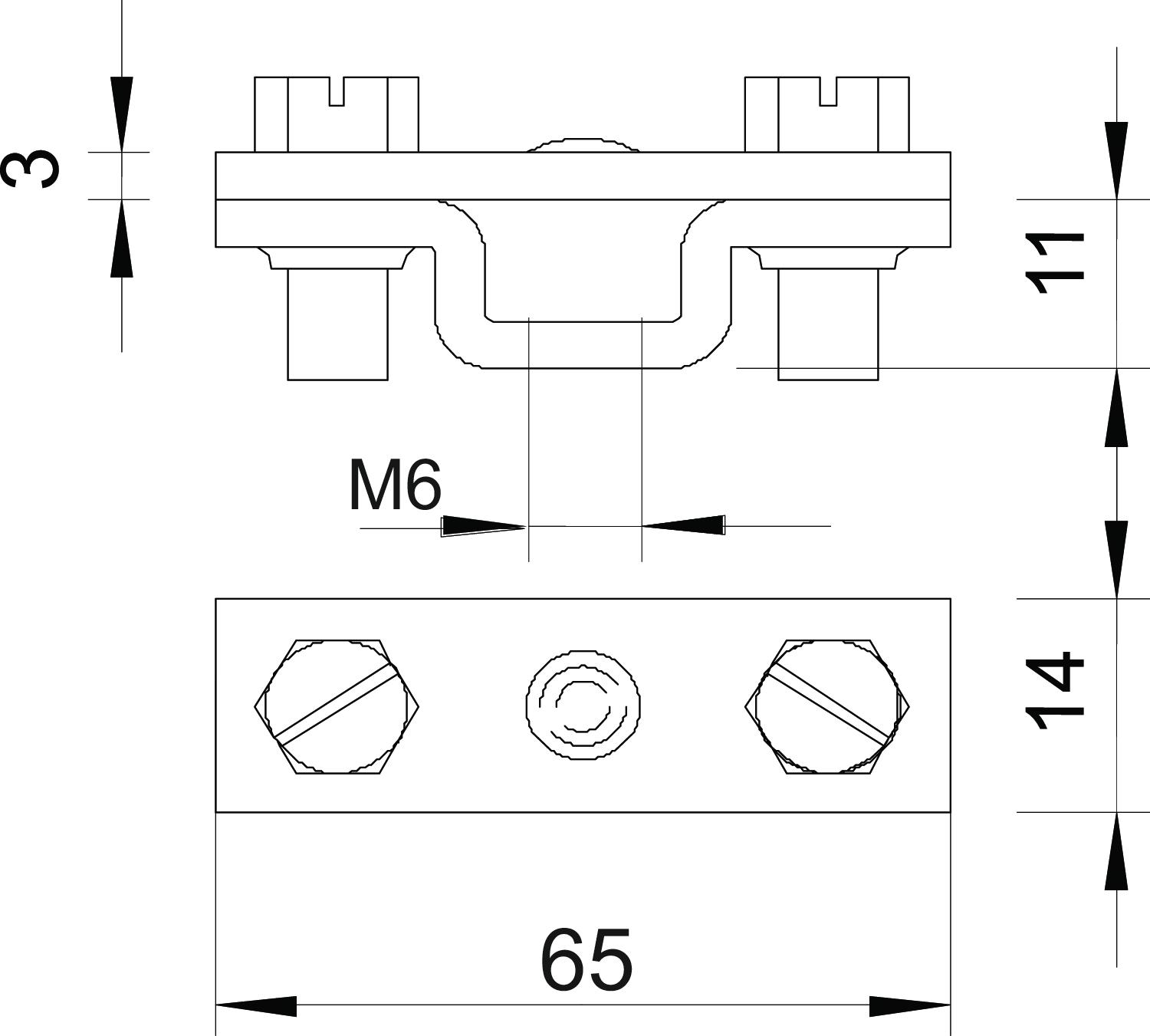

Dimension 40mm
Dimension B 65 mm
Fit max. FL40 mm
Intermediate plate no
Material Steel
Surface Hot-dip galvanised
All types

All types

Types Dimension B Fit Item no. Quantity SSU
831 30 M6 54 mm max. FL30 mm 5032237
25 piece
831 40 M6 65 mm max. FL40 mm 5032245
25 piece
