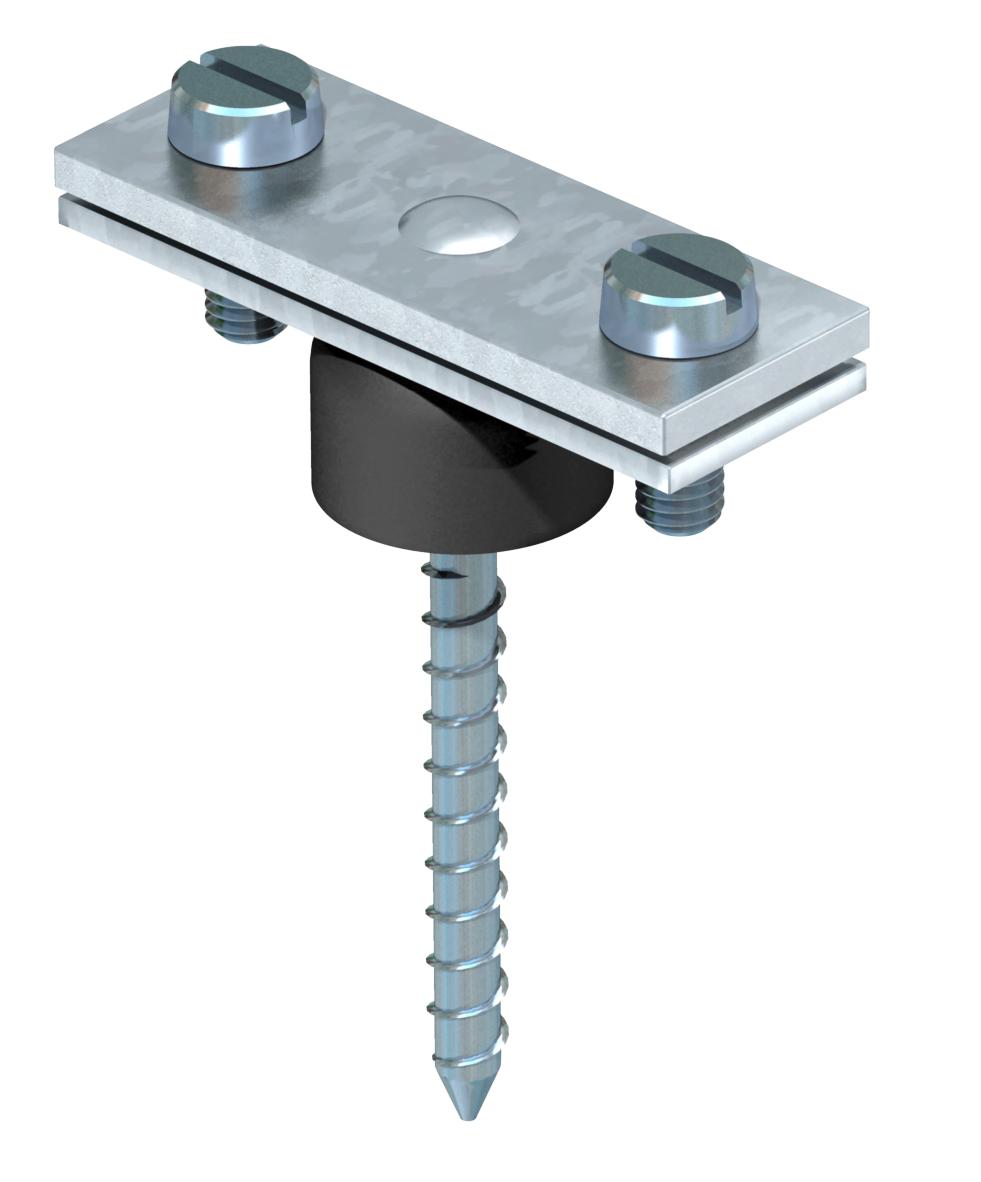

Spacer for flat conductor, with wood screw and spacer piece

Item no. 5025206 | EAN 4012195382690

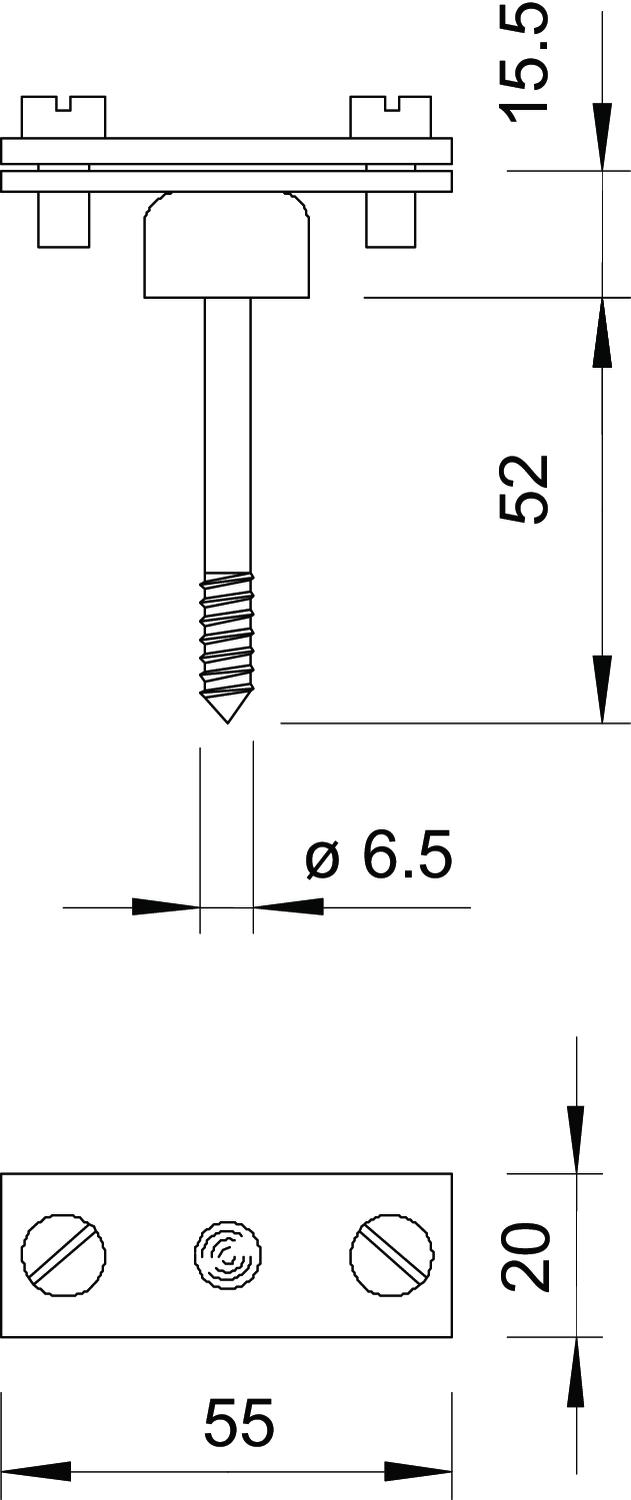

5025206 / 370 H
55 mm
max. FL30 mm
Product description
Product description
• Fit: FL 30
• With spacer and cylinder bolts M6 x 16 (G)
• With wood bolts
Technical data

Technical data

Dimension 55mm
Dimension B 55 mm
Fit max. FL30 mm
Intermediate plate no
Material Steel
Surface Hot-dip galvanised
All types

All types

Types Dimension B Fit Item no. Quantity SSU
370 H 55 mm max. FL30 mm 5025206
100 piece
