Spacer sleeve 50 | 10 | M6

morepic-1

morepic-2

Spacer sleeve

Item no. 3415120 | EAN 4012195303794

Item no. / Types

Length

WAF

Thread

Product description

Product description

Continuous internal thread.

Technical data

Technical data

Continuous thread	yes
Dimension	M6x50mm
Dimension 1, metric	6
Dimension 2, metric	6
Dimension L	50 mm
Hexagonal	yes

Length	50 mm
Material	Die-cast zinc
Shape	Hexagonal
Surface	Electrogalvanized
Thread	M6
WAF	10

All types

All types

Types	Length	WAF	Thread	Item no.	Quantity	SSU
965 M6X20 G	20 mm	10	M6	3415031	piece	100 piece
965 M6X25 G	25 mm	10	M6	3415066	piece	100 piece
965 M6X30 G	30 mm	10	M6	3415082	piece	100 piece
965 M6X40 G	40 mm	10	M6	3415104	piece	100 piece
965 M6X50 G	50 mm	10	M6	3415120	piece	100 piece
965 M8X20 G	20 mm	13	M8	3415147	piece	100 piece
965 M8X30 G	30 mm	13	M8	3415163	piece	100 piece

Downloads

Data sheet 965 M6X50 G / 3415120 , 0.18MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 965 M6X50 G / 3415120 , 0.05MB , pdf

Download

Product graphic 965 M6X50 G / 3415120, 46.32 kB, jpg

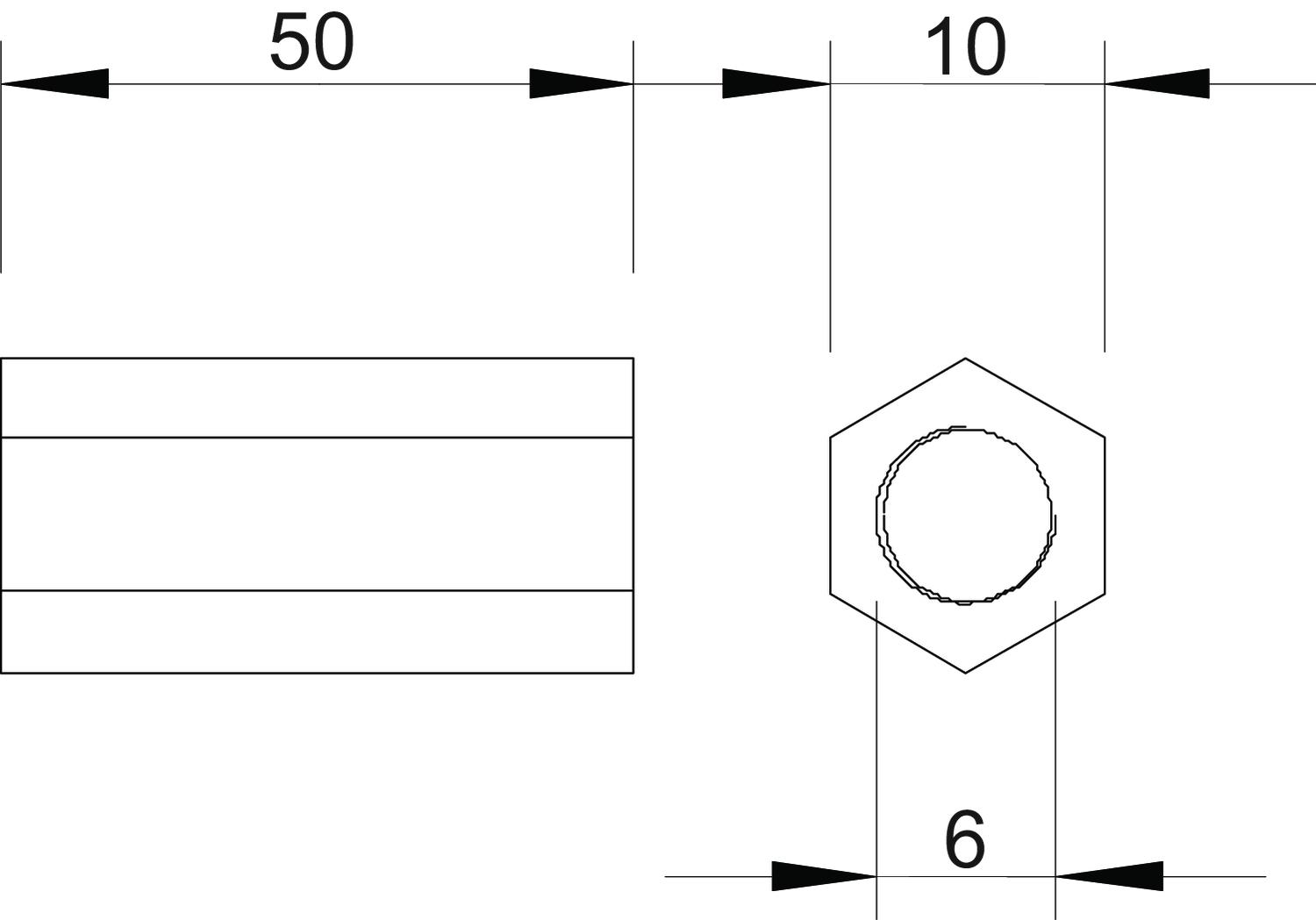

Scale drawing 965 M6X50 G / 3415120, 45.26 kB, jpg

965 M6X50 G / 3415120
