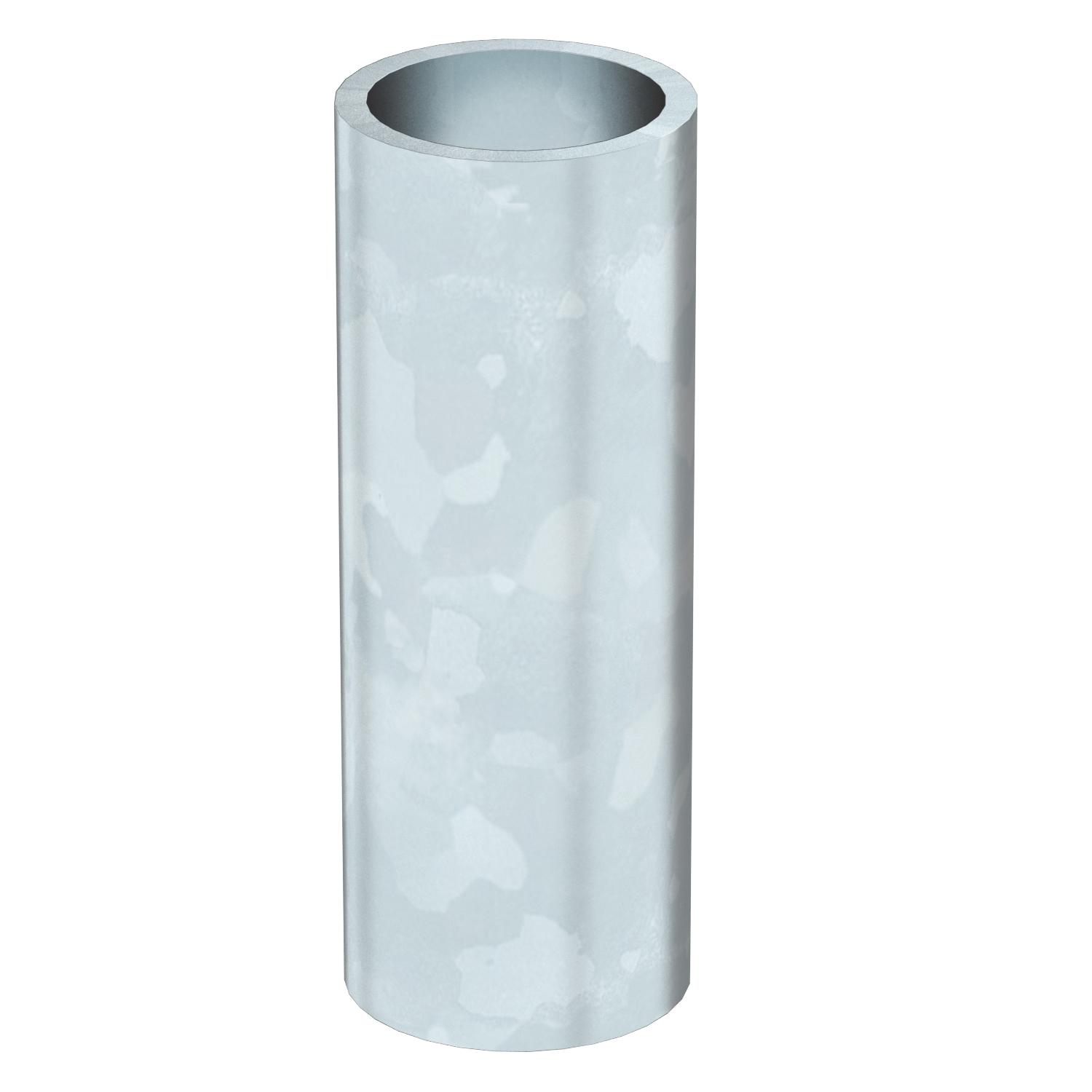

Spacer sleeve for insulated ceilings

Item no. 7205900 | EAN 4012196397228

Item no. / Types

Length

Product description

Product description

The spacer sleeves for mounting suspension brackets under insulated ceilings prevent the insulation from denting when the fastening screws are tightened.

Burr-free, galvanised internally and externally.

Technical data

Technical data

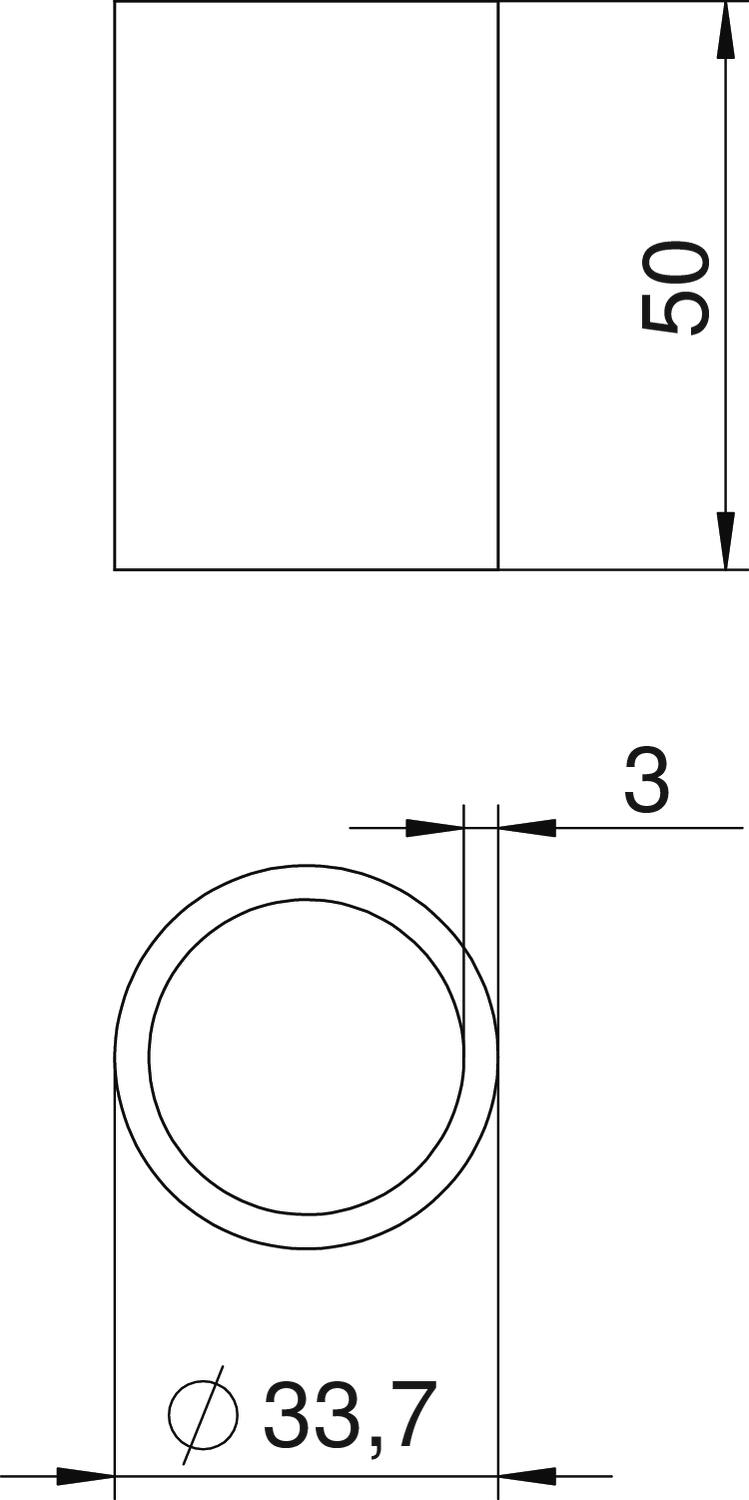

Dimension	33,7x50x3mm
Dimension L	50 mm
External diameter	33,7 mm
Inner diameter	27,7 mm

Length	50 mm
Material	Steel
Surface	Hot-dip galvanised

All types

All types

Types	Length	Item no.	Quantity	SSU
DHI 050	50 mm	7205900	piece	30 piece
DHI 060	60 mm	7205901	piece	24 piece
DHI 070	70 mm	7205902	piece	20 piece
DHI 080	80 mm	7205903	piece	20 piece
DHI 090	90 mm	7205904	piece	14 piece
DHI 100	100 mm	7205905	piece	14 piece
DHI 110	110 mm	7205906	piece	12 piece
DHI 120	120 mm	7205907	piece	12 piece
DHI 130	130 mm	7205908	piece	12 piece
DHI 140	140 mm	7205909	piece	12 piece
DHI 150	150 mm	7205910	piece	12 piece
