- Product description
-

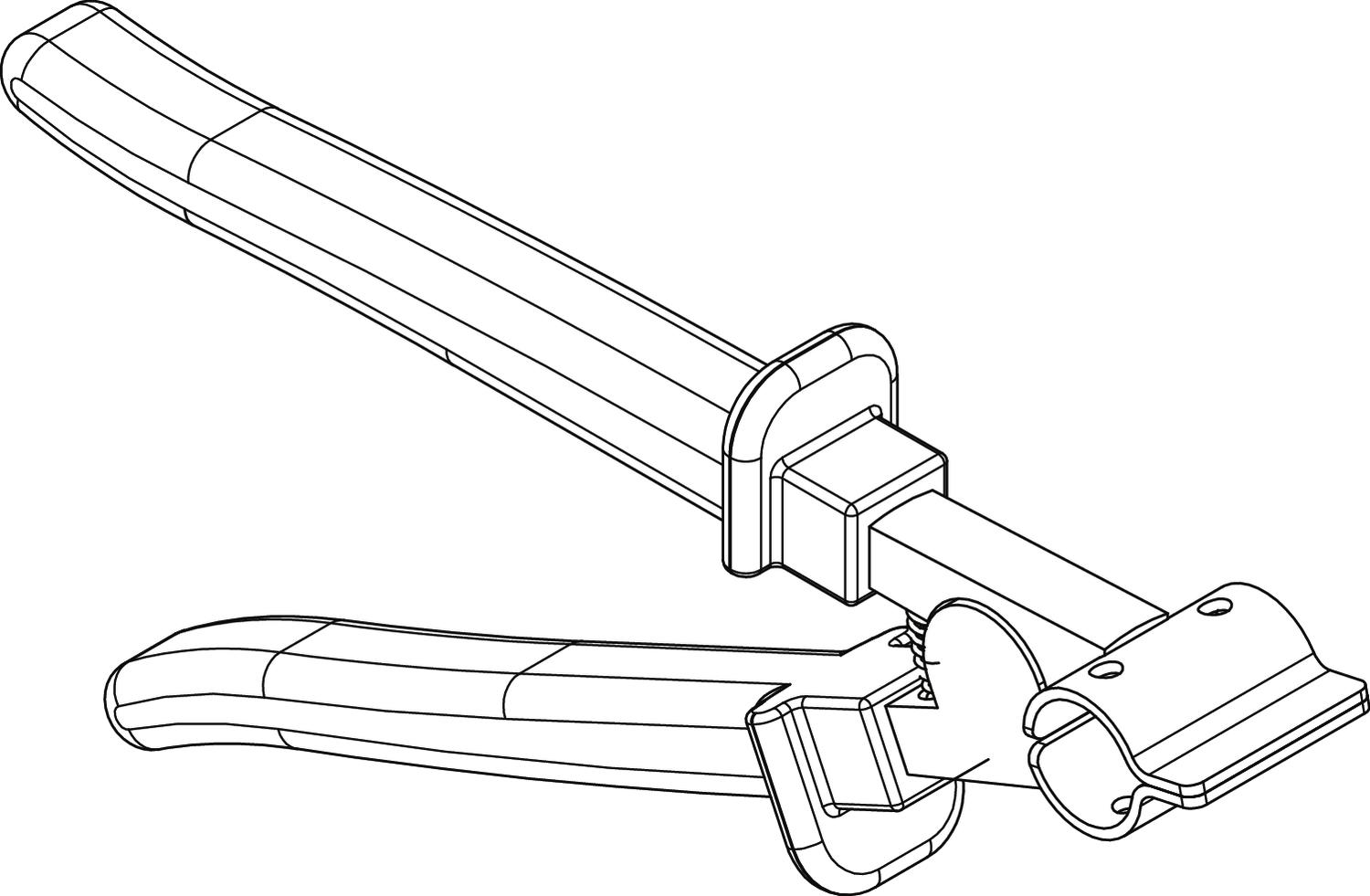

Product descriptionThe ideal aiding tool is the pair of spreading pliers which can be used to open the sealing insert. With this tool, inserting the individual cables is quick and easy.
Place the cable in the spreading pliers, insert the spreading pliers into the sealing separation and then open them. Now the cable can easily be placed into the seal.

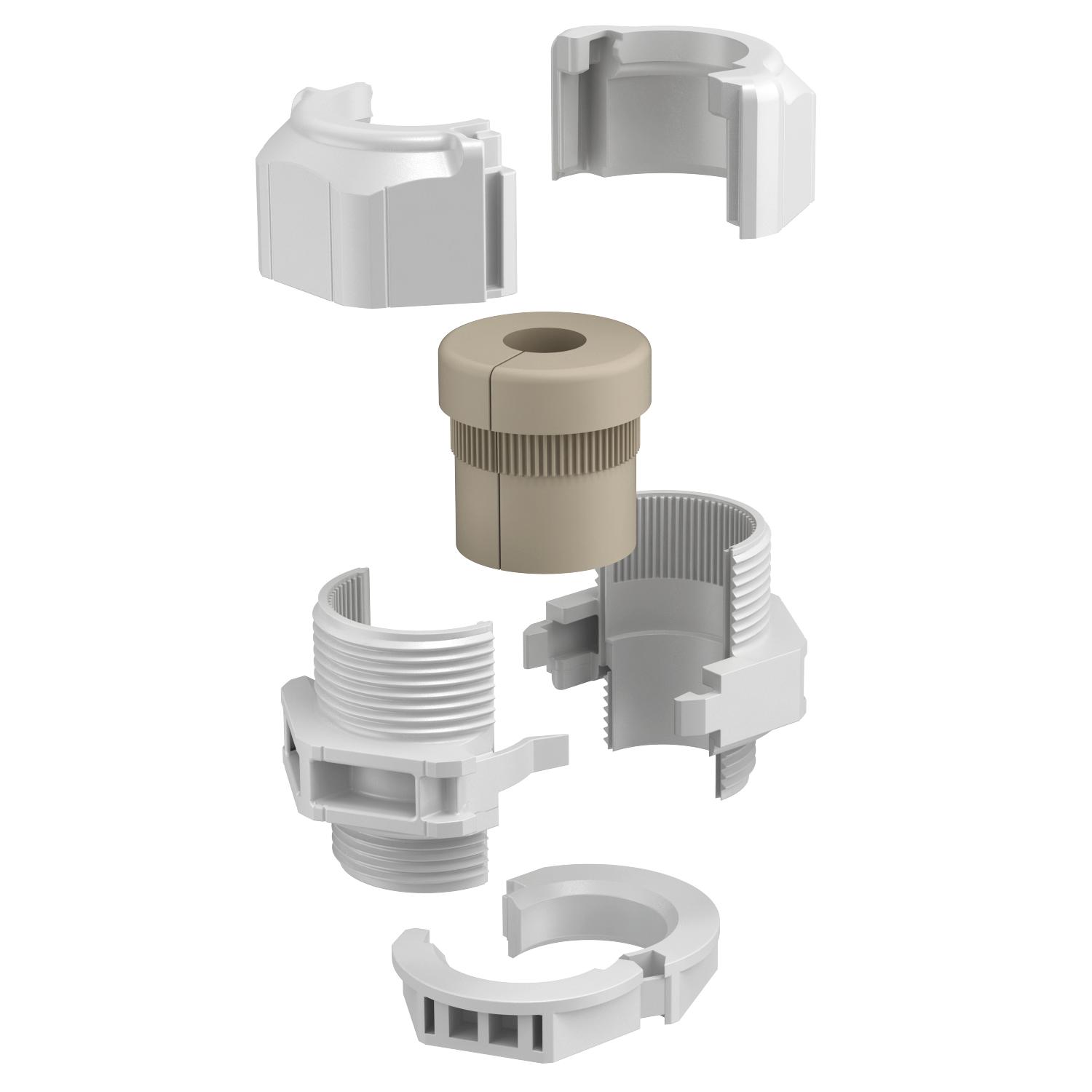

The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.
- Technical data
-
Technical data
Bend protection no Dimension M25 explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Length 215 mm Permitted temperature range, max. 80 °C Permitted temperature range, min. -20 °C Protection rating IP67 Sealing insert, multiple no Splittable gland yes Strain relief option no Thread increase 1,5 mm Thread type Metric Type of seal Sealing ring Version for Straight With locknut yes - All types
- Downloads
-
Data sheet V-TEC TBZ / 2024900 , 0.20MB , pdfEU declaration of conformity V-TEC TBZ / 2024900 , 0.05MB , pdfREACH Declaration of conformity V-TEC TBZ / 2024900 , 0.27MB , pdfRoHS Declaration of conformity V-TEC TBZ / 2024900 , 0.28MB , pdfMounting instructions Mounting instructions, V-TEC TB , 1.34MB , pdf
