Sprint screw, with Philips screw 7.5 | Panhead | 4 | 20

Sprint screw, with Philips screw

Item no. 3195228 | EAN 4012195275299

Item no. / Types

Head diameter

Head shape	Panhead

Dimension D

Dimension L

Product description

Product description

Hardened steel, electrogalvanised and Hostaflon-coated. Pan head with combined Phillips and slotted head (Pozidriv size 2 except Ø 6 mm Pozidriv size 3).

The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable advantage comes from the point with the first thread, which leads on to the double thread beyond.

Areas of use: wood, chipboard, Rigips panels, plastic anchors.

Technical data

Technical data

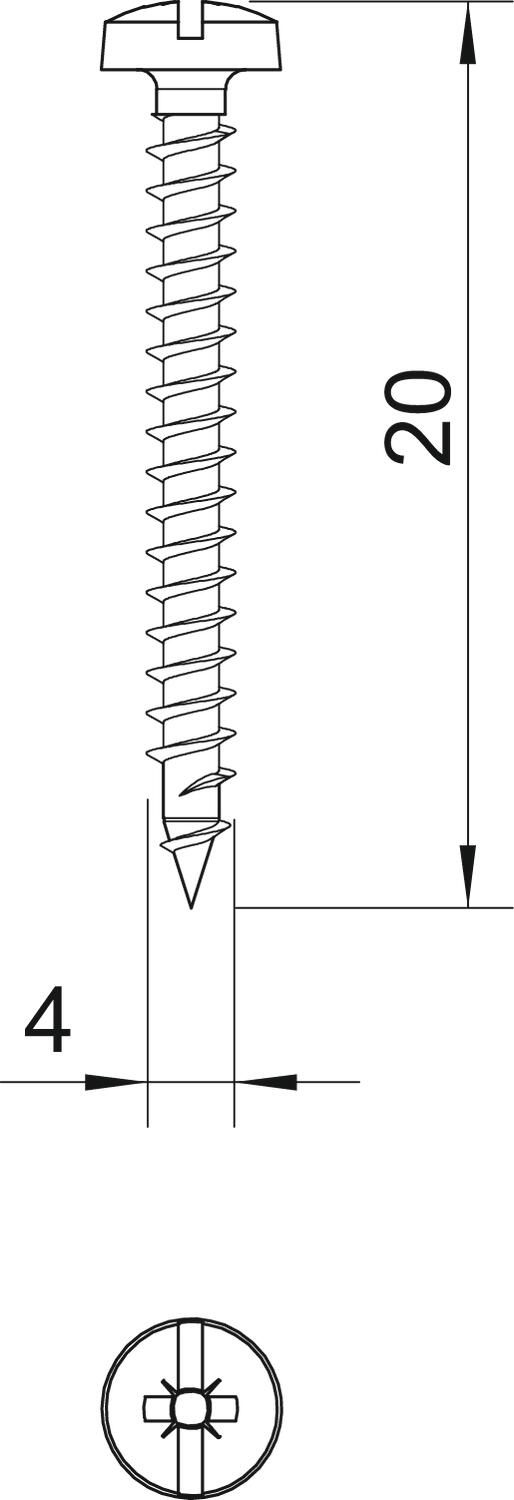

Dimension	4x20mm
Dimension D	4 mm
Dimension L	20 mm
Hardened	yes
Head diameter	7,5 mm
Head shape	Panhead

Length	20 mm
Material	Steel
Screw system	Combination slot
Surface	Electrogalvanized
Thickness	4 mm
Two-compartment	yes

All types

All types

Types	Head diameter	Head shape	Dimension D	Dimension L	Item no.	Quantity	SSU
4758 3.5x15	6.5 mm	Panhead	3.5 mm	15 mm	3195007	piece	200 piece
4758 3.5x20	6.5 mm	Panhead	3.5 mm	20 mm	3195015	piece	200 piece
4758 3.5x25	6.5 mm	Panhead	3.5 mm	25 mm	3195023	piece	200 piece
4758 3.5x30	6.5 mm	Panhead	3.5 mm	30 mm	3195031	piece	200 piece
4758 3.5x35	6.5 mm	Panhead	3.5 mm	35 mm	3195058	piece	200 piece
4758 3.5x40	6.5 mm	Panhead	3.5 mm	40 mm	3195066	piece	200 piece
4758 3.5x45	6.5 mm	Panhead	3.5 mm	45 mm	3195074	piece	200 piece
4758 3.5x50	6.5 mm	Panhead	3.5 mm	50 mm	3195082	piece	200 piece
4758 4.0x15	7.5 mm	Panhead	4 mm	15 mm	3195201	piece	200 piece
4758 4.0x20	7.5 mm	Panhead	4 mm	20 mm	3195228	piece	200 piece
4758 4.0x25	7.5 mm	Panhead	4 mm	25 mm	3195236	piece	200 piece
4758 4.0x30	7.5 mm	Panhead	4 mm	30 mm	3195244	piece	200 piece
4758 4.0x35	7.5 mm	Panhead	4 mm	35 mm	3195252	piece	200 piece
4758 4.0x40	7.5 mm	Panhead	4 mm	40 mm	3195260	piece	200 piece
4758 4.0x45	7.5 mm	Panhead	4 mm	45 mm	3195279	piece	200 piece
4758 4.0x50	7.5 mm	Panhead	4 mm	50 mm	3195287	piece	200 piece
4758 4.5x25	8.2 mm	Panhead	4.5 mm	25 mm	3195422	piece	200 piece
4758 4.5x30	8.2 mm	Panhead	4.5 mm	30 mm	3195430	piece	200 piece
4758 4.5x35	8.2 mm	Panhead	4.5 mm	35 mm	3195449	piece	200 piece
4758 4.5x40	8.2 mm	Panhead	4.5 mm	40 mm	3195457	piece	200 piece
4758 4.5x45	8.2 mm	Panhead	4.5 mm	45 mm	3195465	piece	200 piece
4758 4.5x50	8.2 mm	Panhead	4.5 mm	50 mm	3195473	piece	200 piece
4758 5.0x30	9.5 mm	Panhead	5 mm	30 mm	3195635	piece	200 piece
4758 5.0x35	9.5 mm	Panhead	5 mm	35 mm	3195643	piece	200 piece
4758 5.0x40	9.5 mm	Panhead	5 mm	40 mm	3195651	piece	200 piece
4758 5.0x45	9.5 mm	Panhead	5 mm	45 mm	3195678	piece	200 piece
4758 5.0x50	9.5 mm	Panhead	5 mm	50 mm	3195686	piece	200 piece
4758 5.0x60	9.5 mm	Panhead	5 mm	60 mm	3195694	piece	200 piece
4758 6.0x30	12 mm	Panhead	6 mm	30 mm	3195910	piece	200 piece
4758 6.0x40	12 mm	Panhead	6 mm	40 mm	3195929	piece	200 piece
4758 6.0x50	12 mm	Panhead	6 mm	50 mm	3195937	piece	200 piece
4758 6.0x60	12 mm	Panhead	6 mm	60 mm	3195945	piece	200 piece
