Sprint screw, with Philips slot 8.3 | Countersunk head | 4.5 | 50

Sprint screw, with Philips slot

Item no. 3192377 | EAN 4012195272953

Item no. / Types

Head diameter

Head shape	Countersunk head

Dimension D

Dimension L

Product description

Product description

Hardened steel, electrogalvanised and Hostaflon-coated. Countersunk head with Phillips head (Pozidriv size 2 except Ø 6 mm Pozidriv size 3).

The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable benefit is achieved by the point with the first thread, which leads onto the double thread beyond.

Areas of use: wood, chipboard, Rigips panels, plastic anchors.

Technical data

Technical data

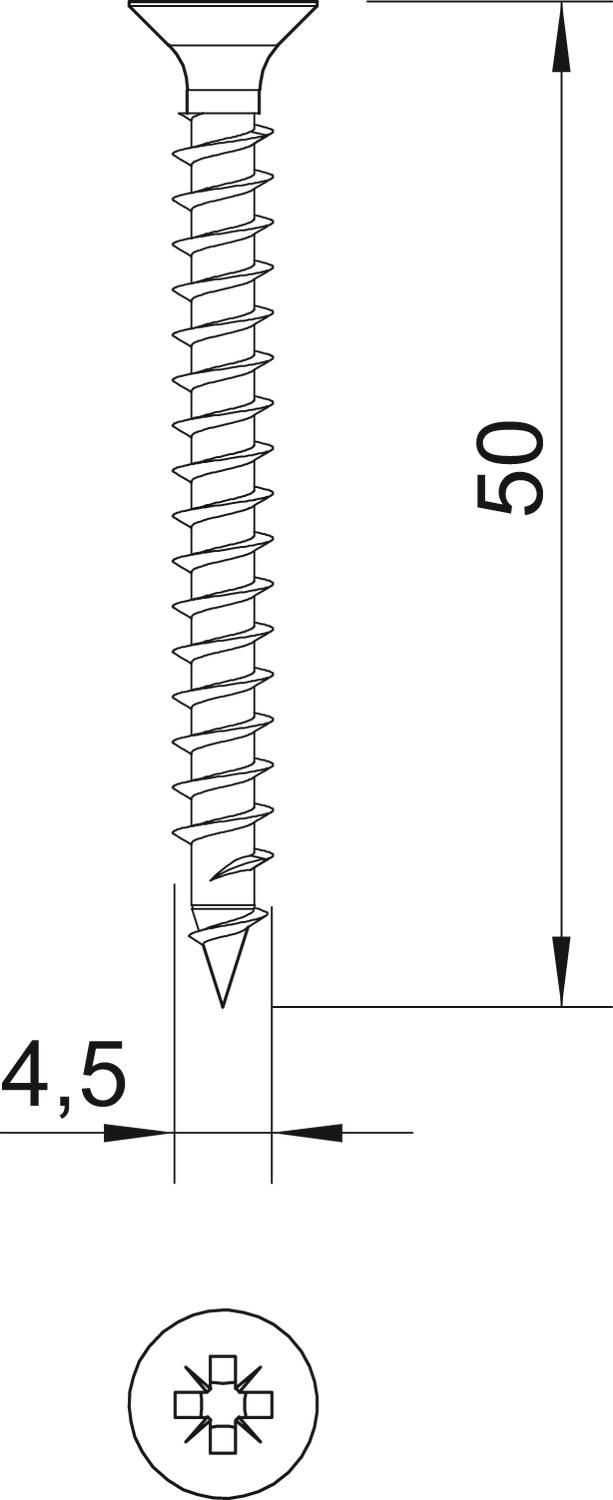

Dimension	4,5x50mm
Dimension D	4,5 mm
Dimension L	50 mm
Hardened	yes
Head diameter	8,3 mm

Head shape	Countersunk head
Length	50 mm
Material	Steel
Screw system	Pozidrive PZ
Surface	Electrogalvanized

All types

All types

Types	Head diameter	Head shape	Dimension D	Dimension L	Item no.	Quantity	SSU
4759 3.0x15	5.6 mm	Countersunk head	3 mm	15 mm	3192055	piece	200 piece
4759 3.0x20	5.6 mm	Countersunk head	3 mm	20 mm	3192059	piece	200 piece
4759 3.0x25	5.6 mm	Countersunk head	3 mm	25 mm	3192063	piece	200 piece
4759 3.0x30	5.6 mm	Countersunk head	3 mm	30 mm	3192067	piece	200 piece
4759 3.5x15	6.5 mm	Countersunk head	3.5 mm	15 mm	3192091	piece	200 piece
4759 3.5x20	6.5 mm	Countersunk head	3.5 mm	20 mm	3192105	piece	200 piece
4759 3.5x25	6.5 mm	Countersunk head	3.5 mm	25 mm	3192113	piece	200 piece
4759 3.5x30	6.5 mm	Countersunk head	3.5 mm	30 mm	3192121	piece	200 piece
4759 3.5x35	6.5 mm	Countersunk head	3.5 mm	35 mm	3192148	piece	200 piece
4759 3.5x40	6.5 mm	Countersunk head	3.5 mm	40 mm	3192156	piece	200 piece
4759 3.5x45	6.5 mm	Countersunk head	3.5 mm	45 mm	3192164	piece	200 piece
4759 3.5x50	6.5 mm	Countersunk head	3.5 mm	50 mm	3192172	piece	200 piece
4759 4.0x15	7.5 mm	Countersunk head	4 mm	15 mm	3192199	piece	200 piece
4759 4.0x20	7.5 mm	Countersunk head	4 mm	20 mm	3192202	piece	200 piece
4759 4.0x25	7.5 mm	Countersunk head	4 mm	25 mm	3192210	piece	200 piece
4759 4.0x30	7.5 mm	Countersunk head	4 mm	30 mm	3192229	piece	200 piece
4759 4.0x35	7.5 mm	Countersunk head	4 mm	35 mm	3192237	piece	200 piece
4759 4.0x40	7.5 mm	Countersunk head	4 mm	40 mm	3192245	piece	200 piece
4759 4.0x45	7.5 mm	Countersunk head	4 mm	45 mm	3192253	piece	200 piece
4759 4.0x50	7.5 mm	Countersunk head	4 mm	50 mm	3192261	piece	200 piece
4759 4.5x30	8.3 mm	Countersunk head	4.5 mm	30 mm	3192334	piece	200 piece
4759 4.5x35	8.3 mm	Countersunk head	4.5 mm	35 mm	3192342	piece	200 piece
4759 4.5x40	8.3 mm	Countersunk head	4.5 mm	40 mm	3192350	piece	200 piece
4759 4.5x45	8.3 mm	Countersunk head	4.5 mm	45 mm	3192369	piece	200 piece
4759 4.5x50	8.3 mm	Countersunk head	4.5 mm	50 mm	3192377	piece	200 piece
4759 5.0x30	9.2 mm	Countersunk head	5 mm	30 mm	3192415	piece	200 piece
4759 5.0x35	9.2 mm	Countersunk head	5 mm	35 mm	3192423	piece	200 piece
4759 5.0x40	9.2 mm	Countersunk head	5 mm	40 mm	3192431	piece	200 piece
4759 5.0x45	9.2 mm	Countersunk head	5 mm	45 mm	3192458	piece	200 piece
4759 5.0x50	9.2 mm	Countersunk head	5 mm	50 mm	3192466	piece	200 piece
4759 6.0x40	11 mm	Countersunk head	6 mm	40 mm	3192628	piece	200 piece
4759 6.0x50	11 mm	Countersunk head	6 mm	50 mm	3192636	piece	200 piece
4759 6.0x60	11 mm	Countersunk head	6 mm	60 mm	3192644	piece	200 piece
