Sprint screw, with Torx 6.5 | Panhead | 3.5 | 15

Sprint screw, with Torx

Item no. 3198016 | EAN 4012195552017

Item no. / Types

Head diameter

Head shape	Panhead

Dimension D

Dimension L

Product description

Product description

Hardened steel, electrogalvanised and Hostaflon-coated. Pan head with T bit (Allen head), sizes Ø 3 mm T10, Ø 3.5 mm T15, Ø 4 and 4.5 mm T20, Ø 5 mm T25.

The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable advantage comes from the point with the first thread, which leads on to the double thread beyond.

Areas of use: wood, chipboard, Rigips panels, plastic anchors.

Technical data

Technical data

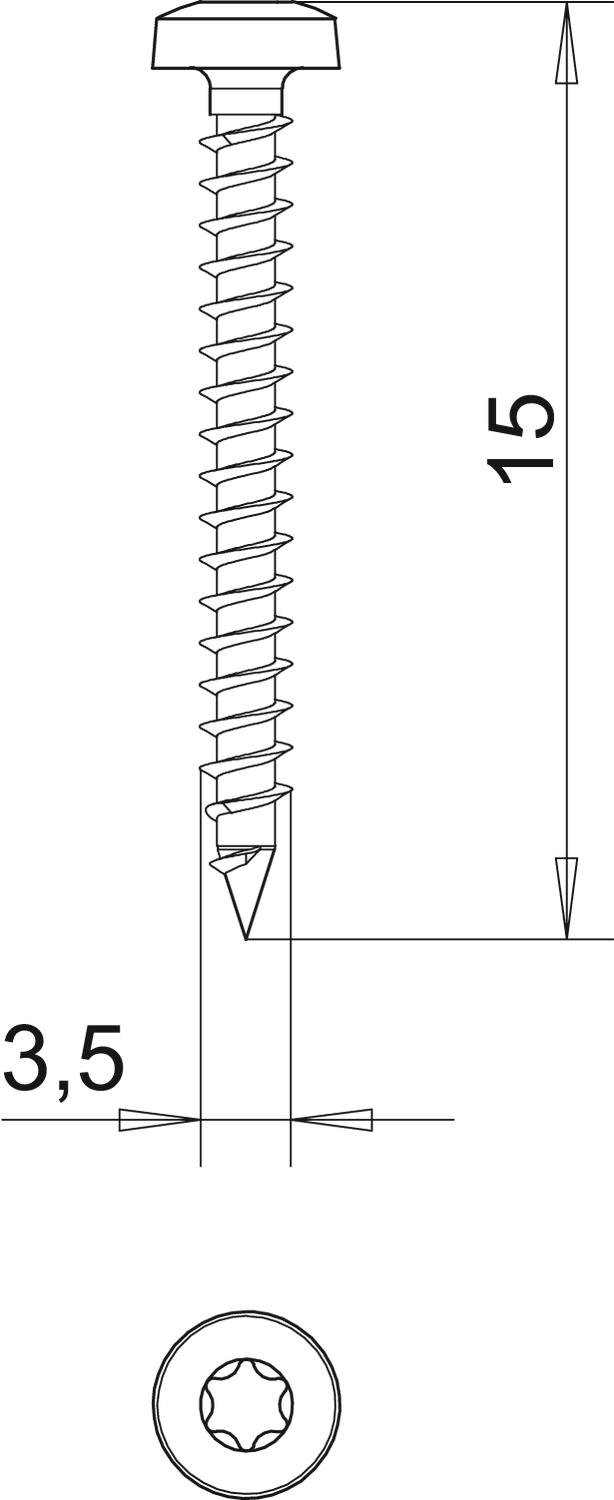

Dimension	3,5x15mm
Dimension D	3,5 mm
Dimension L	15 mm
Hardened	yes
Head diameter	6,5 mm
Head shape	Panhead

Length	15 mm
Material	Steel
Screw system	Torx
Surface	Electrogalvanized
Thickness	3,5 mm
Two-compartment	yes

All types

All types

Types	Head diameter	Head shape	Dimension D	Dimension L	Item no.	Quantity	SSU
4758T 3.5x15	6.5 mm	Panhead	3.5 mm	15 mm	3198016	piece	200 piece
4758T 3.5x20	6.5 mm	Panhead	3.5 mm	20 mm	3198018	piece	200 piece
4758T 3.5x25	6.5 mm	Panhead	3.5 mm	25 mm	3198020	piece	200 piece
4758T 3.5x30	6.5 mm	Panhead	3.5 mm	30 mm	3198022	piece	200 piece
4758T 3.5x35	6.5 mm	Panhead	3.5 mm	35 mm	3198024	piece	200 piece
4758T 3.5x40	6.5 mm	Panhead	3.5 mm	40 mm	3198026	piece	200 piece
4758T 4.0x15	7.5 mm	Panhead	4 mm	15 mm	3198030	piece	200 piece
4758T 4.0x20	7.5 mm	Panhead	4 mm	20 mm	3198032	piece	200 piece
4758T 4.0x25	7.5 mm	Panhead	4 mm	25 mm	3198034	piece	200 piece
4758T 4.0x30	7.5 mm	Panhead	4 mm	30 mm	3198036	piece	200 piece
4758T 4.0x35	7.5 mm	Panhead	4 mm	35 mm	3198038	piece	200 piece
4758T 4.0x40	7.5 mm	Panhead	4 mm	40 mm	3198040	piece	200 piece
4758T 4.0x45	7.5 mm	Panhead	4 mm	45 mm	3198042	piece	200 piece
4758T 4.0x50	7.5 mm	Panhead	4 mm	50 mm	3198044	piece	200 piece
4758T 4.5x30	8.2 mm	Panhead	4.5 mm	30 mm	3198054	piece	200 piece
4758T 4.5x35	8.2 mm	Panhead	4.5 mm	35 mm	3198056	piece	200 piece
4758T 4.5x40	8.2 mm	Panhead	4.5 mm	40 mm	3198058	piece	200 piece
4758T 4.5x45	8.2 mm	Panhead	4.5 mm	45 mm	3198060	piece	200 piece
4758T 4.5x50	8.2 mm	Panhead	4.5 mm	50 mm	3198062	piece	200 piece
4758T 5.0x30	9.5 mm	Panhead	5 mm	30 mm	3198073	piece	200 piece
4758T 5.0x35	9.5 mm	Panhead	5 mm	35 mm	3198075	piece	200 piece
4758T 5.0x40	9.5 mm	Panhead	5 mm	40 mm	3198077	piece	200 piece
4758T 5.0x45	9.5 mm	Panhead	5 mm	45 mm	3198079	piece	200 piece
4758T 5.0x50	9.5 mm	Panhead	5 mm	50 mm	3198081	piece	200 piece
4758T 5.0x60	9.5 mm	Panhead	5 mm	60 mm	3198083	piece	200 piece
4758T 6.0x60	12 mm	Panhead	6 mm	60 mm	3198118	piece	200 piece
