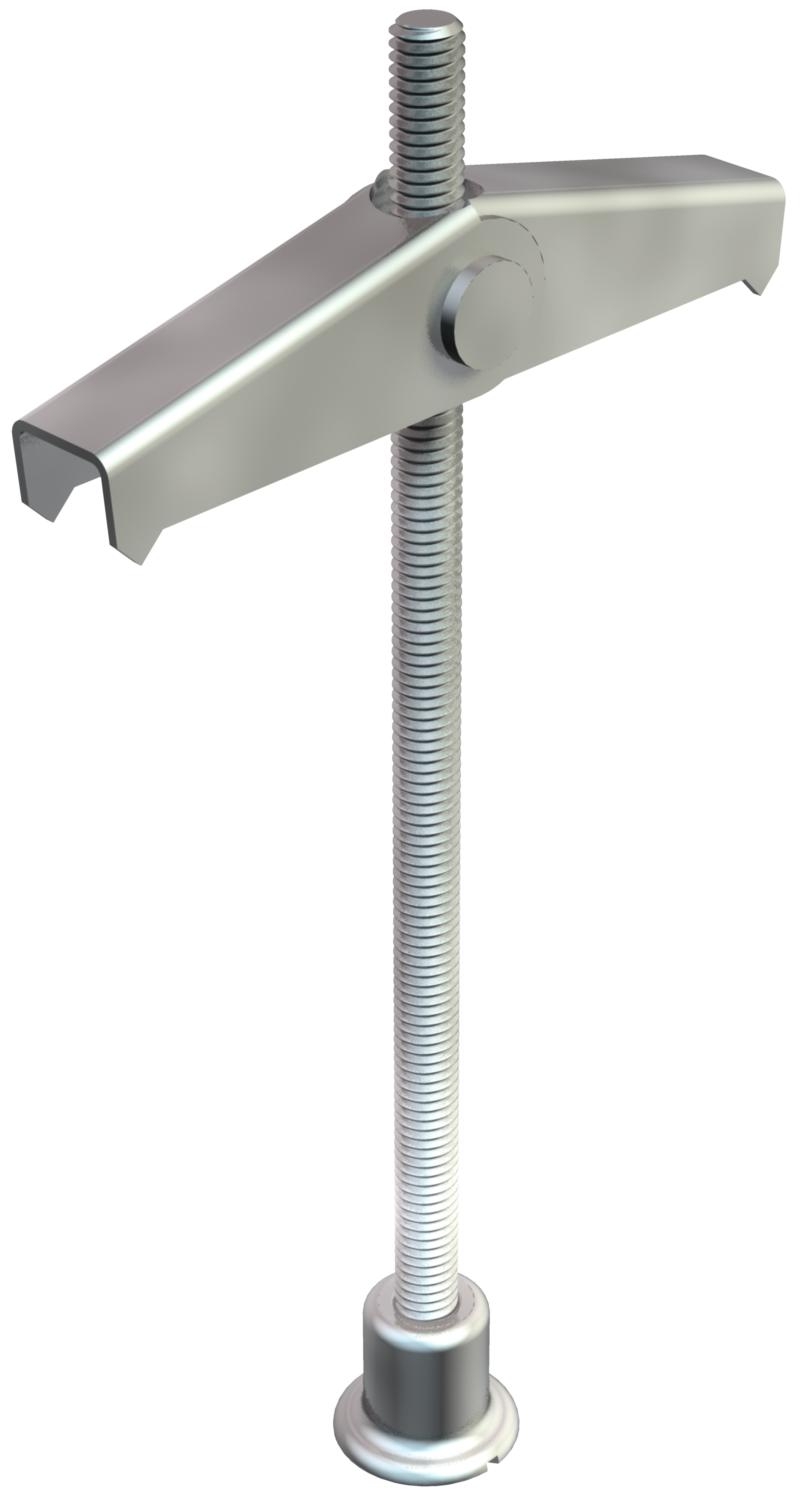

Sprung hinged anchor

Item no. 3481662 | EAN 4012195432852

Product description
Product description
With threaded rod and slotted brass nut, steel axle.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 0,2 kN

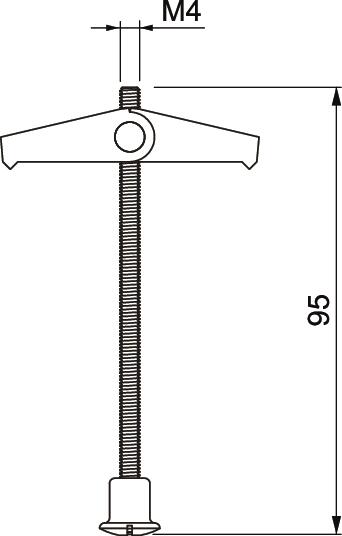

Dimension M4x95mm
Drill hole 14 mm
Drill hole diameter, min. 14 mm
Length 90 mm
Material Steel
Minimum cavity depth 35 mm
Surface Electrogalvanized
Thread M4
Thread type Metric
Version for With threaded shaft
With washer no
All types

All types

Types Item no. Quantity SSU
451 M4x95 G 3481662
50 piece
