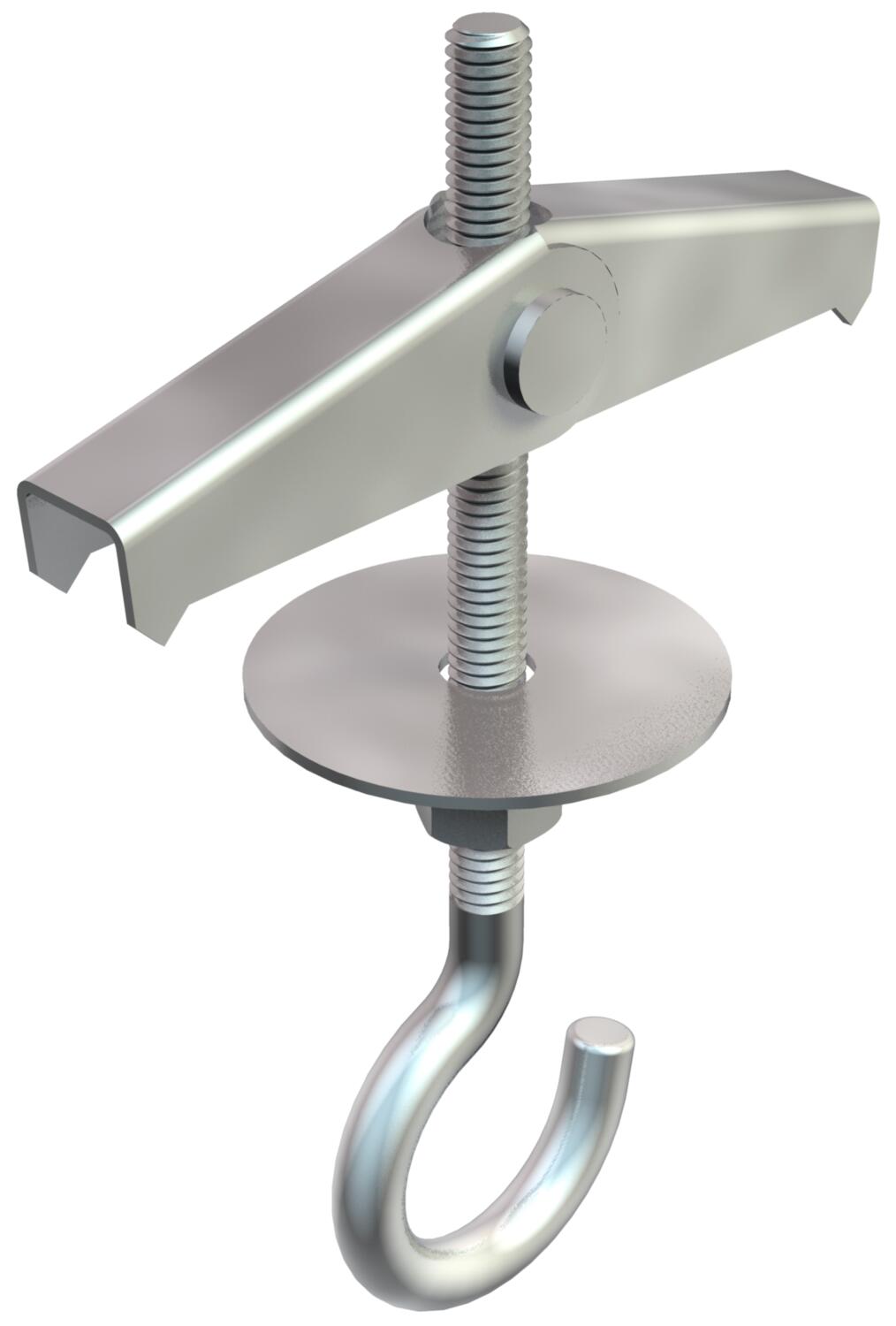

Sprung hinged anchor

Item no. 3481778 | EAN 4012195432975

Product description
Product description
With threaded rod, washer and hexagonal nut, steel axle.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 0,4 kN

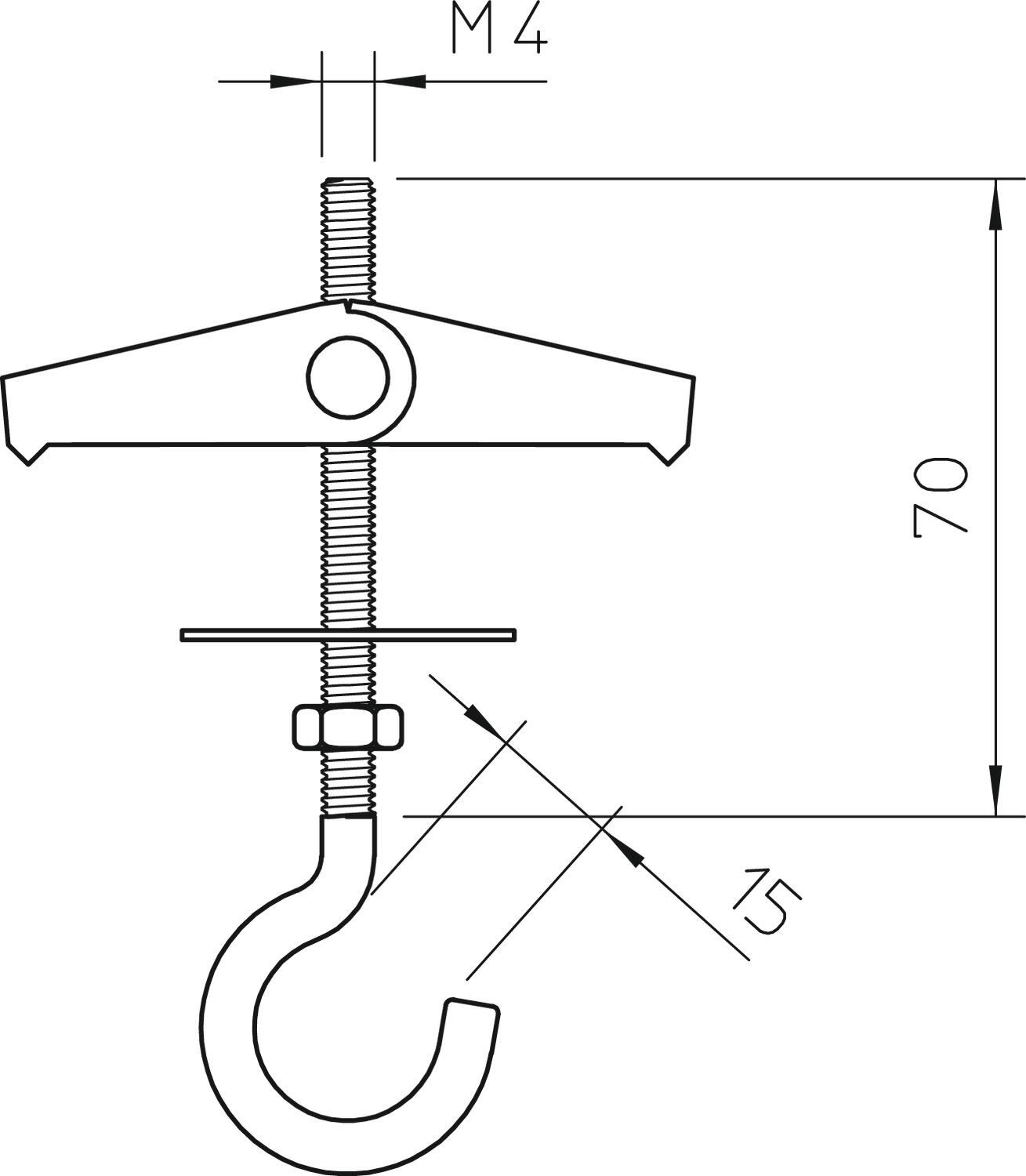

Dimension M4x70mm
Drill hole 14 mm
Drill hole diameter, min. 14 mm
Length 70 mm
Material Steel
Minimum cavity depth 35 mm
Surface Electrogalvanized
Thread M4
Thread type Metric
Version for With ceiling hook
With washer yes
All types

All types

Types Item no. Quantity SSU
452 M4x70 G 3481778
50 piece
