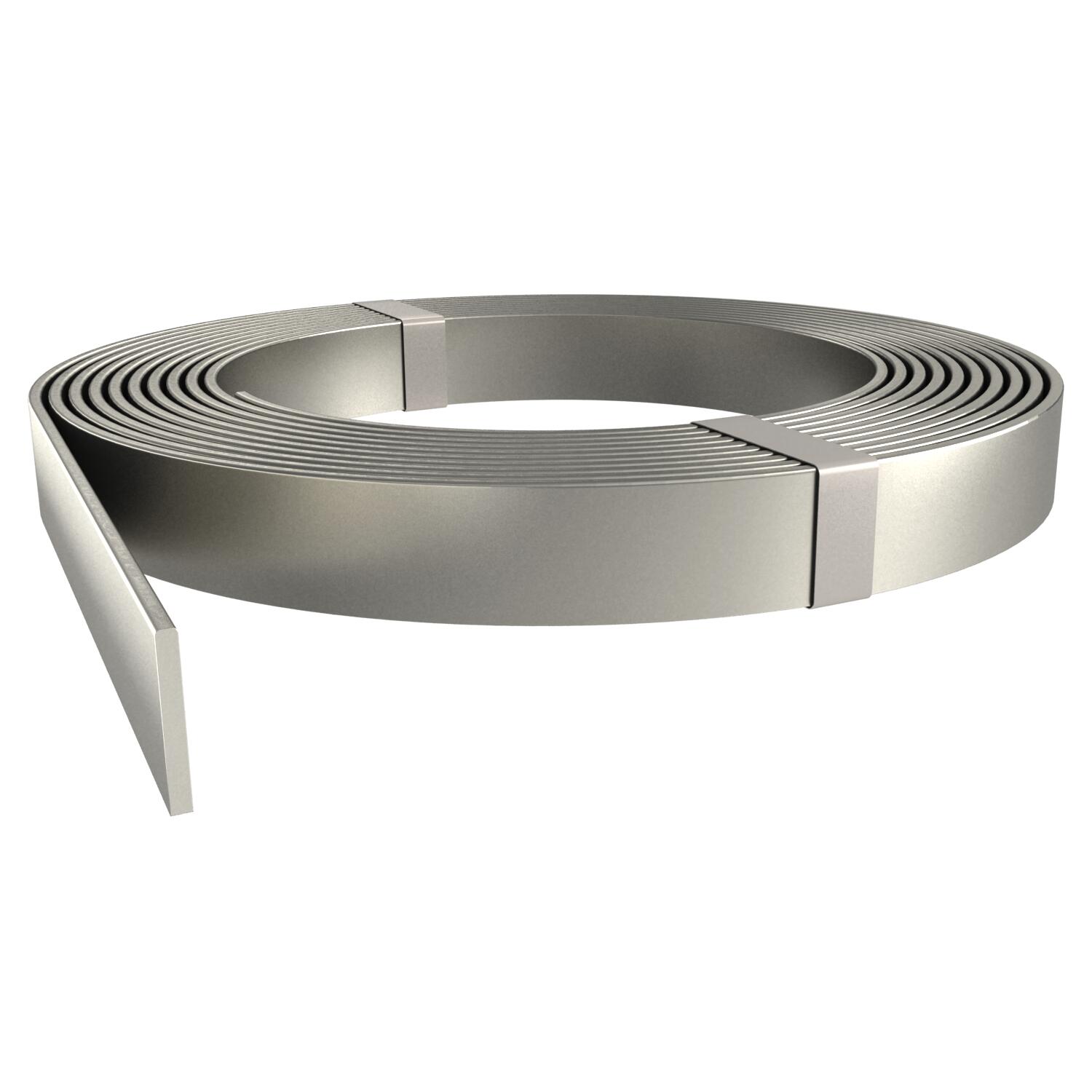

Stainless steel flat conductor

Item no. 5018730 | EAN 4012195022015

Item no. / Types

Width	30 mm

Height	3.5 mm

Product description

Product description

• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• For use in areas at risk of corrosion
• For lightning protection, earthing systems and ring equipotential bonding

Technical data

Technical data

Cross-section	105 mm²

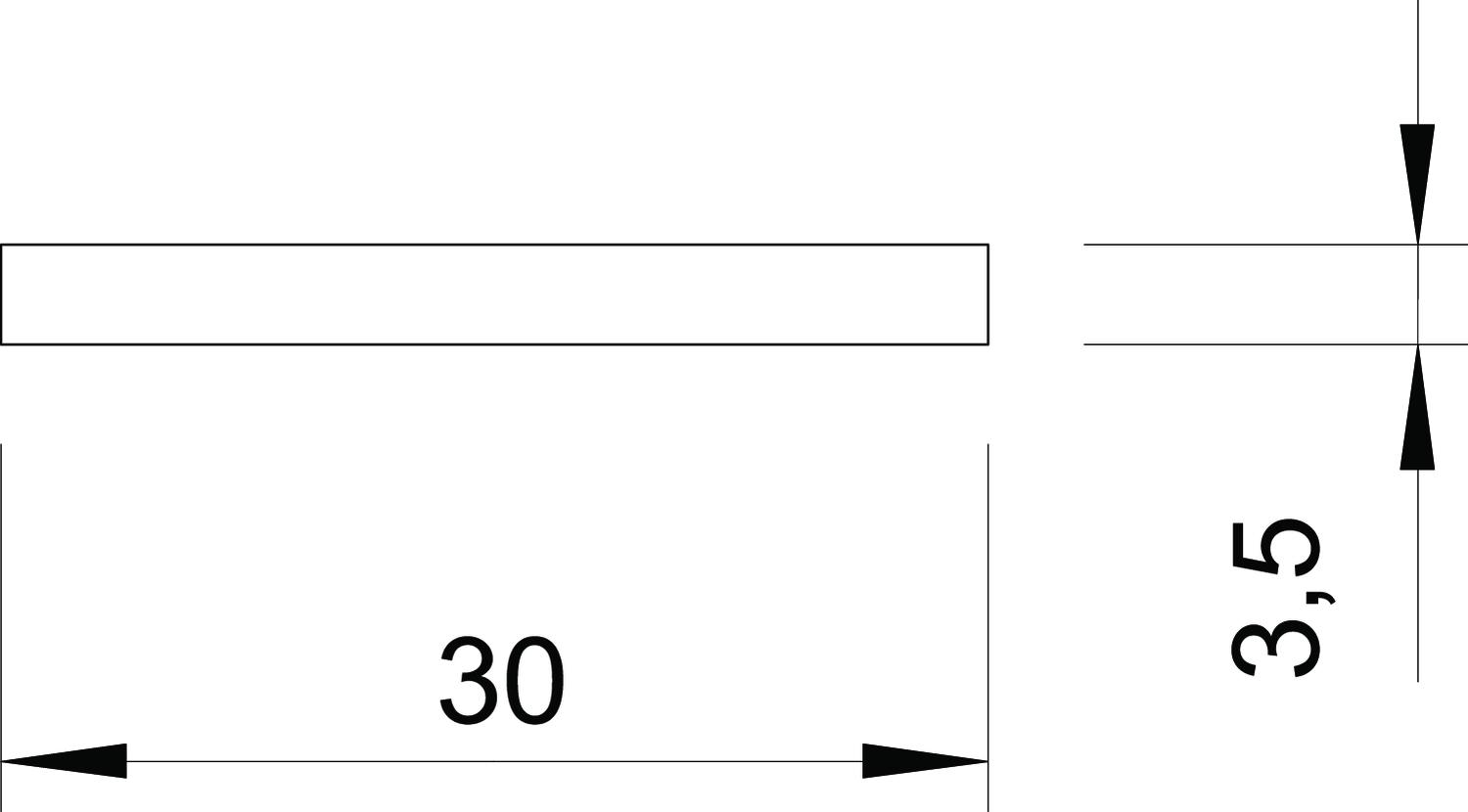

Dimension	30x3,5mm
Dimension B	30 mm
Dimension H	3,5 mm
Height	3,5 mm

Length tolerance ±	5 %
Material	Stainless steel
Nomal ring (approx. m)	25
Normal ring (ca. kg)	21
Width	30 mm

All types

All types

Types	Width	Height	Item no.	Quantity	SSU
5052 V2A 30X3.5	30 mm	3.5 mm	5018501	m	50 m
5052 V4A 30X3.5	30 mm	3.5 mm	5018706	m	50 m
5052 V4A 30X3.5	30 mm	3.5 mm	5018730	m	25 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cross-connector with intermediate plate for Rd 8−10 mm A4	252 8-10 V4A	5312318	piece	10 piece
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4	252 8-10x16 V4A	5312346	piece	10 piece
Cross-connector round/round without intermediate plate A4	253 8-10 V4A	5312582	piece	25 piece
Cross-connector for round conductors and flat conductors A4	252 8-10xFL30V4A	5312656	piece	10 piece

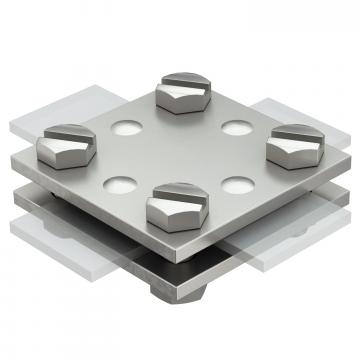

DIN cross-connector for flat conductor A4	256 A-DIN 30 V4A	5314659	piece	10 piece
