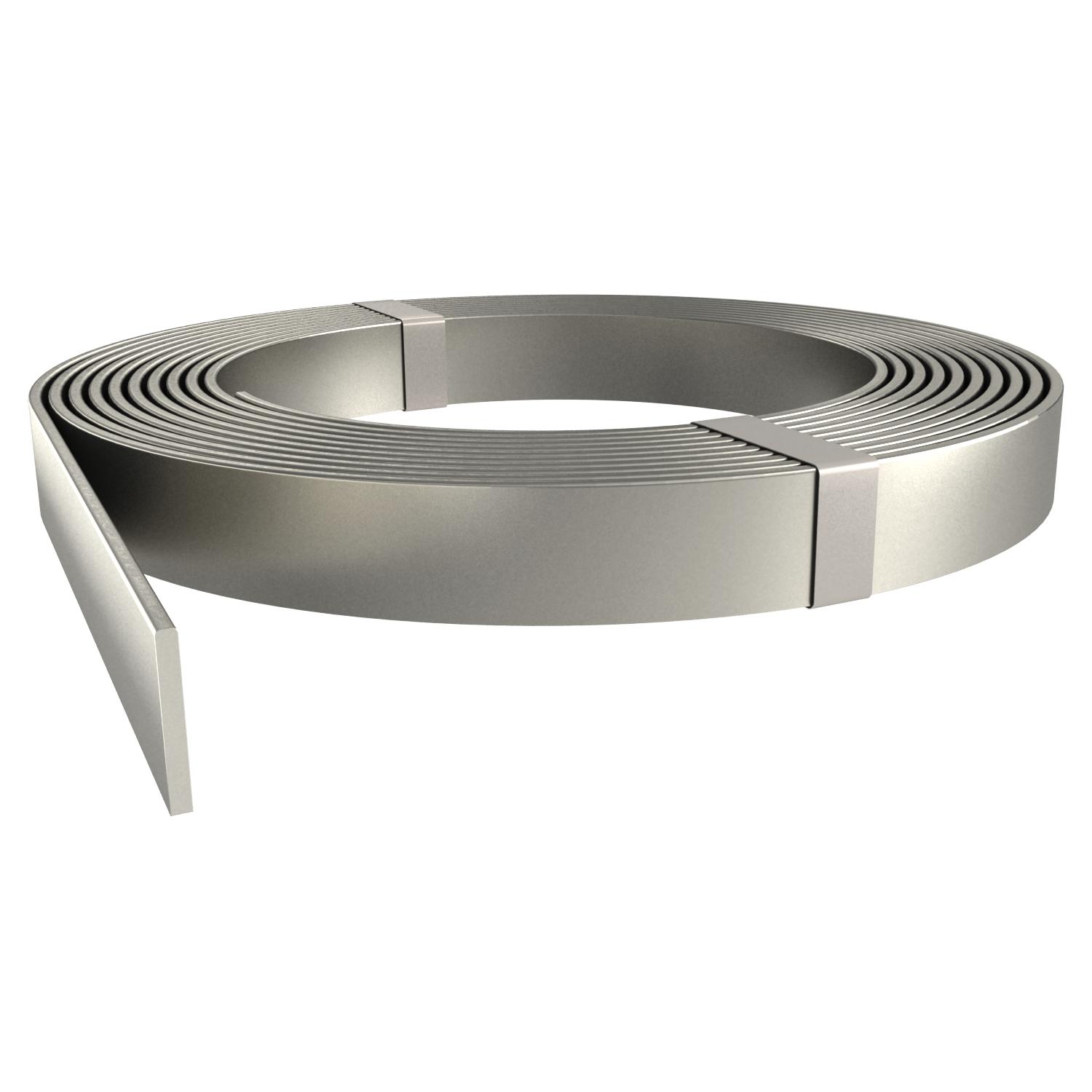

Stainless steel flat conductor A4

Item no. 5018706 | EAN 4012195800477

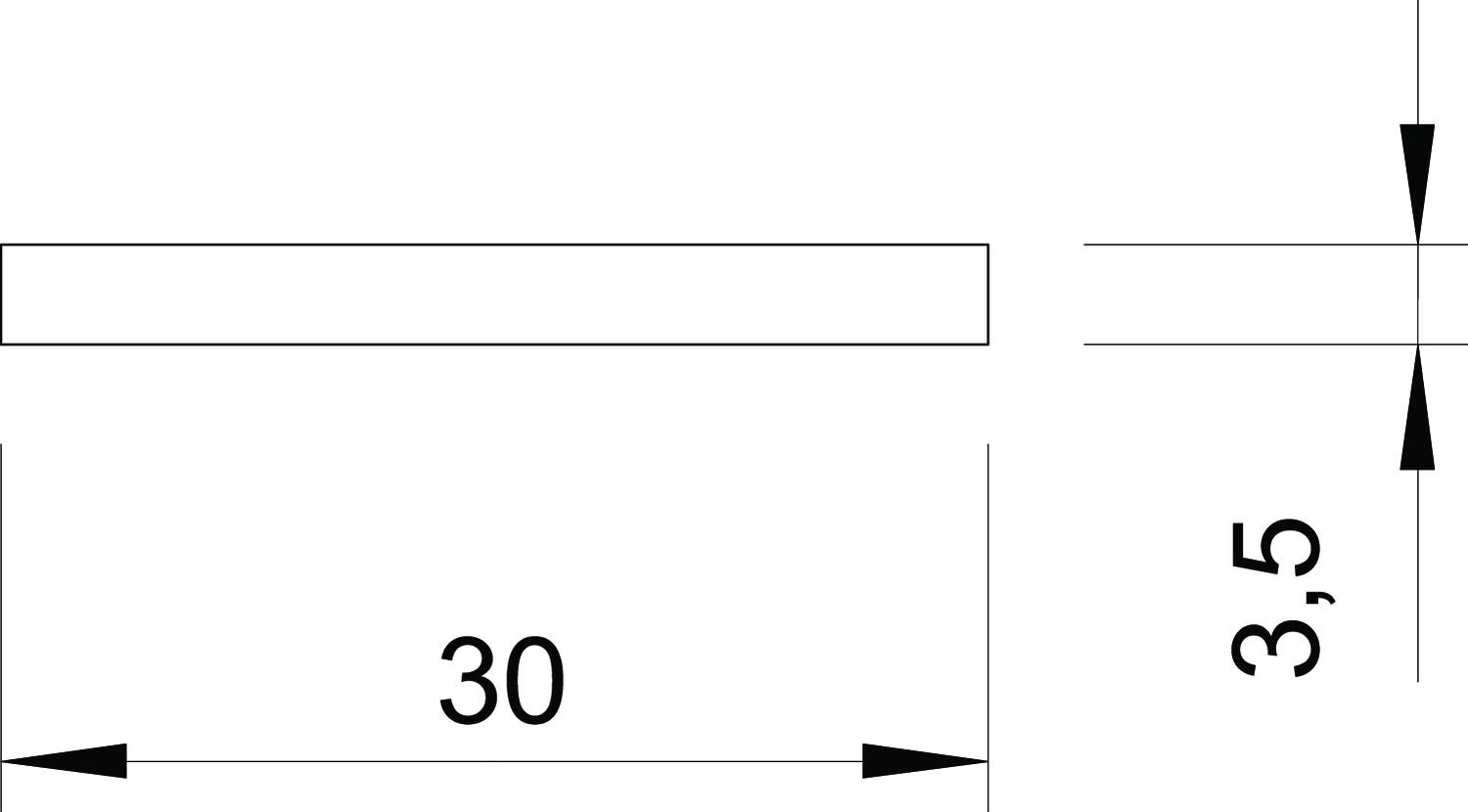

30 mm
3.5 mm
Product description

Product description

• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• For use in areas at risk of corrosion
• For lightning protection, earthing systems and ring equipotential bonding
  • Lightning current-tested
Technical data

Technical data

Cross-section 105 mm²
Dimension 30x3,5mm
Dimension B 30 mm
Dimension H 3,5 mm
Height 3,5 mm
Length tolerance ± 5 %
Material Stainless steel
Nomal ring (approx. m) 50
Normal ring (ca. kg) 42
Width 30 mm
All types

All types

Types Width Height Item no. Quantity SSU
5052 V2A 30X3.5 30 mm 3.5 mm 5018501
50 m
5052 V4A 30X3.5 30 mm 3.5 mm 5018706
50 m
5052 V4A 30X3.5 30 mm 3.5 mm 5018730
25 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Cross-connector with intermediate plate for Rd 8−10 mm A4 Cross-connector with intermediate plate for Rd 8−10 mm A4 252 8-10 V4A 5312318
10 piece
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 252 8-10x16 V4A 5312346
10 piece
Cross-connector round/round without intermediate plate A4 Cross-connector round/round without intermediate plate A4 253 8-10 V4A 5312582
25 piece
Cross-connector for round conductors and flat conductors A4 Cross-connector for round conductors and flat conductors A4 252 8-10xFL30V4A 5312656
10 piece
DIN cross-connector for flat conductor A4 DIN cross-connector for flat conductor A4 256 A-DIN 30 V4A 5314659
10 piece
Fixed earthing terminal with axis and double thread FT Fixed earthing terminal with axis and double thread FT 205 DG L180 FT 5420024
10 piece
Sealing sleeve for flat conductors Sealing sleeve for flat conductors DW FL30x3,5 2360043
1 piece
Spacer Spacer 1811 5014018
25 piece
Spacer Spacer 1811 L 5014026
25 piece
Expansion strip for foundation earth electrode systems Expansion strip for foundation earth electrode systems 1807 DB 5016160
4 piece
