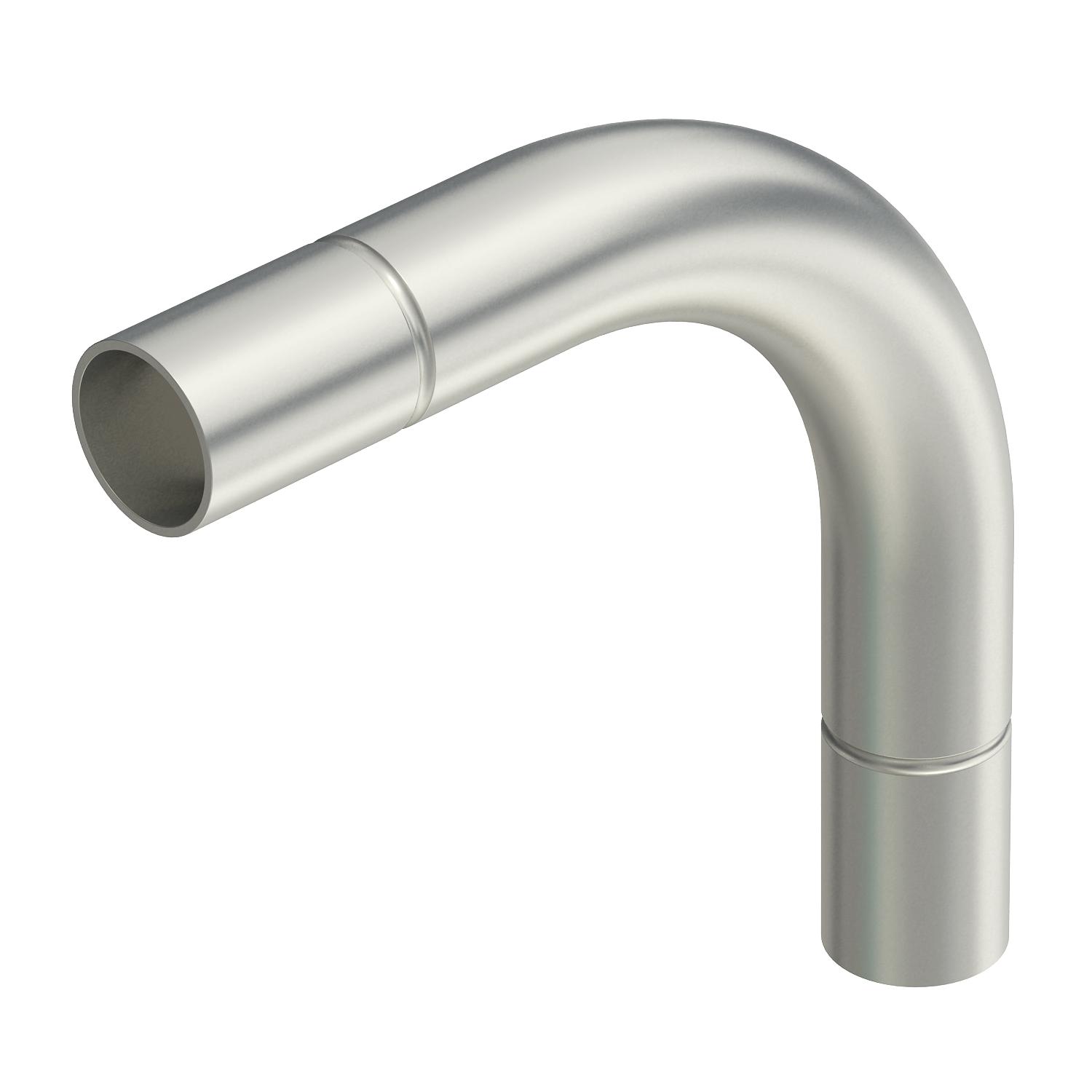

Stainless steel pipe bend, V4A
Item no. 2046765 | EAN 4012195924197
- Product description
-
Product description90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
-
- Technical data
-
Technical data

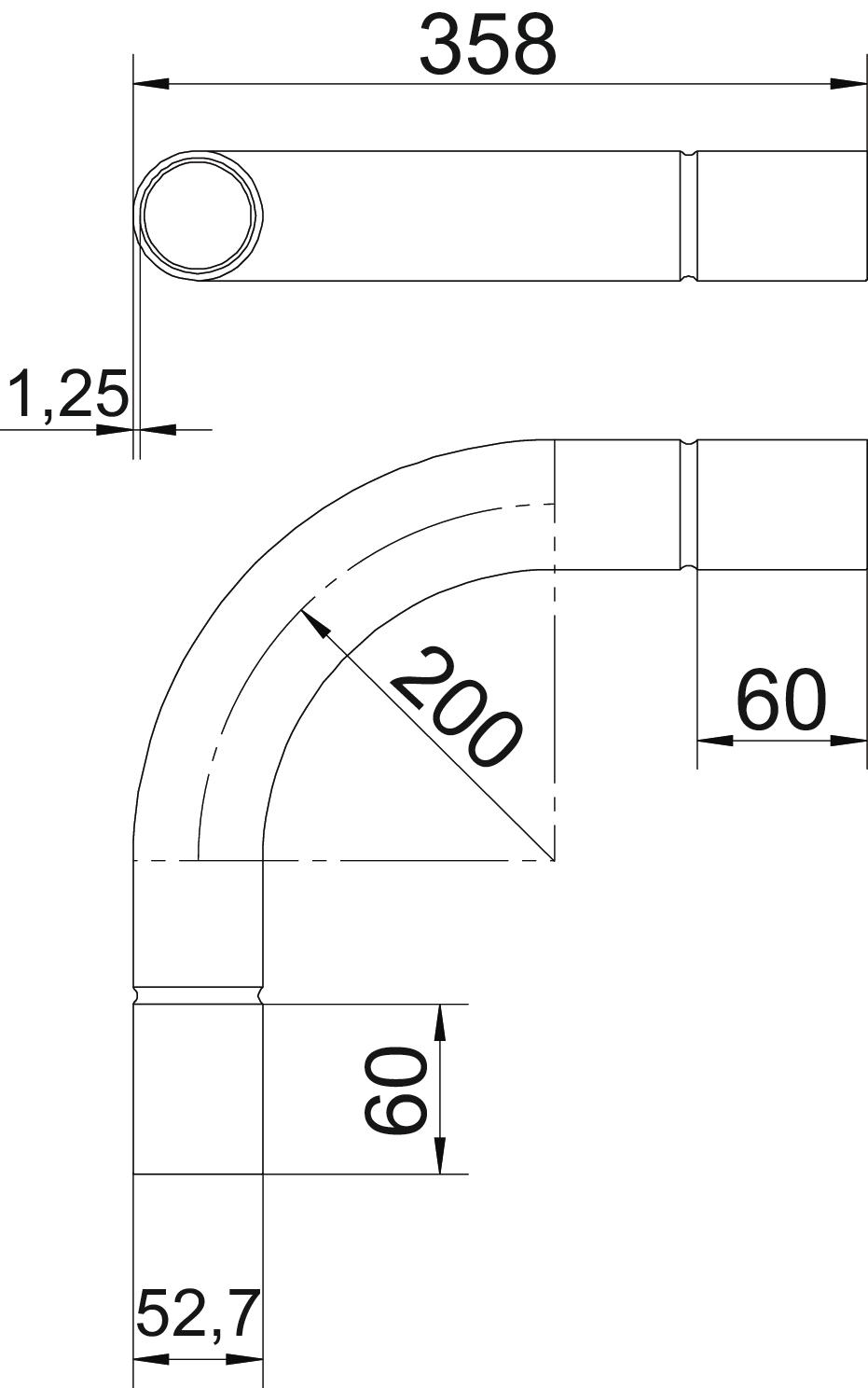

Angle of the bend 90 ° Brushed surface yes Dimension Ø50mm Dimension A 60 mm Dimension B 358 mm Dimension D 52,7 mm Dimension d 50,2 mm Dimension l 50 mm Dimension m (mm) M50 Dimension R 200 mm Dimension t 1,25 mm Flexible no For nominal pipe diameter 50 mm Halogen-free no Material Stainless steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Surface Bright, treated Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SB50W A4 / 2046765 , 0.24MB , pdfEU declaration of conformity SB50W A4 / 2046765 , 0.05MB , pdfREACH Declaration of conformity SB50W A4 / 2046765 , 0.12MB , pdfRoHS Declaration of conformity SB50W A4 / 2046765 , 0.12MB , pdf
