- Product description
-
Product description

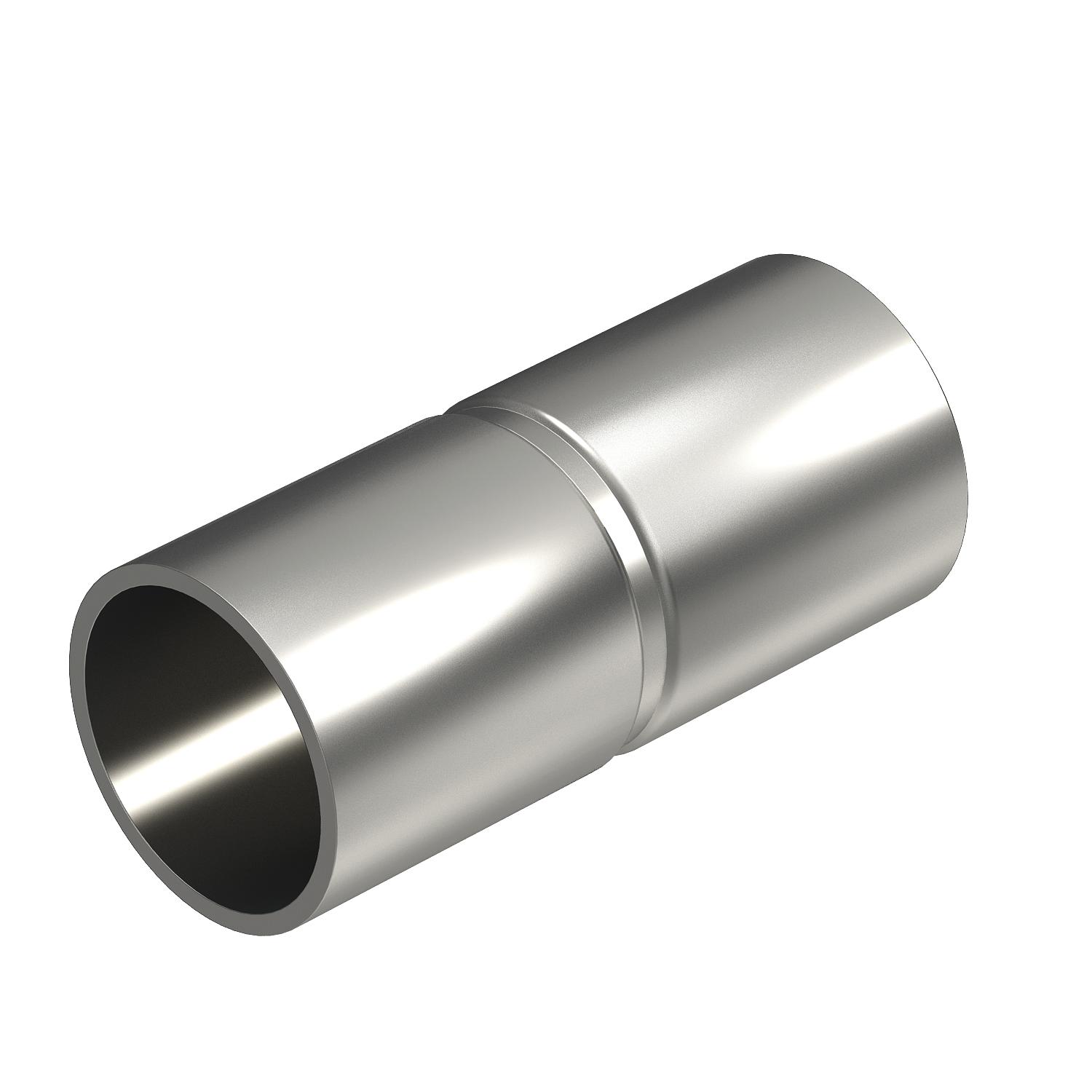

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
- Technical data
-
Technical data

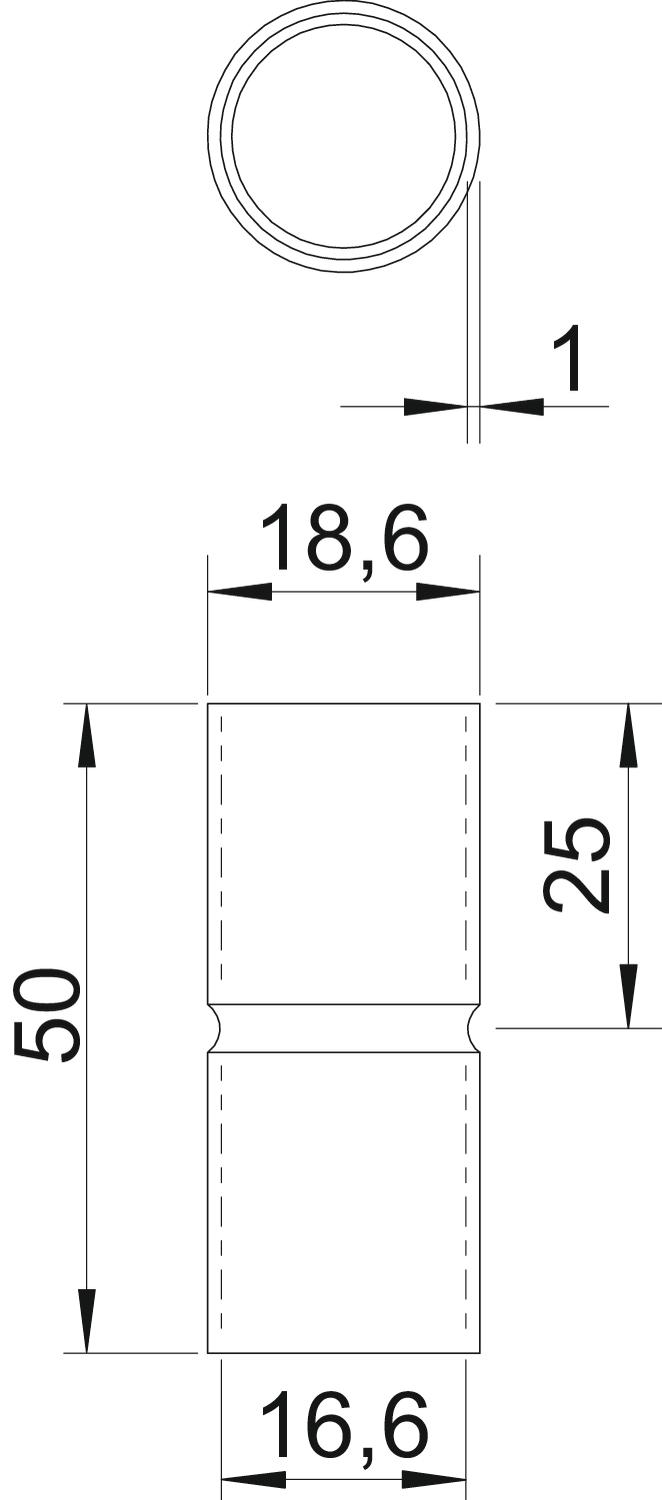

Brushed surface yes Dimension Ø16mm Dimension D 18,2 mm Dimension d 16,2 mm Dimension l 25 mm Dimension L 50 mm Dimension m (mm) M16 Dimension t 1 mm for pipe diameter 16 mm Halogen-free yes Length 50 mm Material Stainless steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 16 Surface Bright, treated Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV16W A4 / 2046770 , 0.20MB , pdfDeclaration of conformity SV16W A4 / 2046770 , 0.05MB , pdfREACH Declaration of conformity SV16W A4 / 2046770 , 0.12MB , pdfRoHS Declaration of conformity SV16W A4 / 2046770 , 0.12MB , pdf
