Stainless steel sleeve V4A
Item no. 2046772 | EAN 4012195924272
- Product description
-

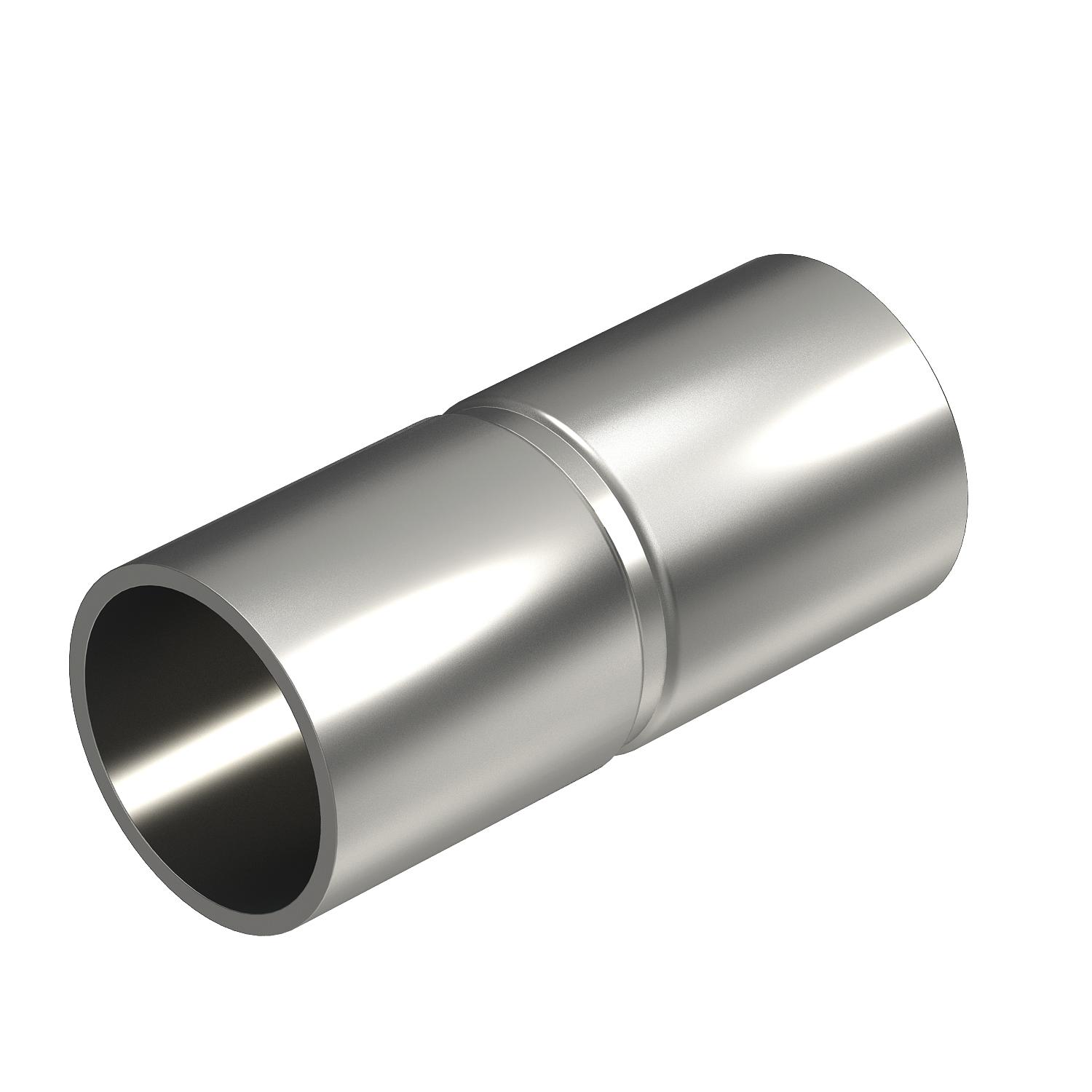

Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data

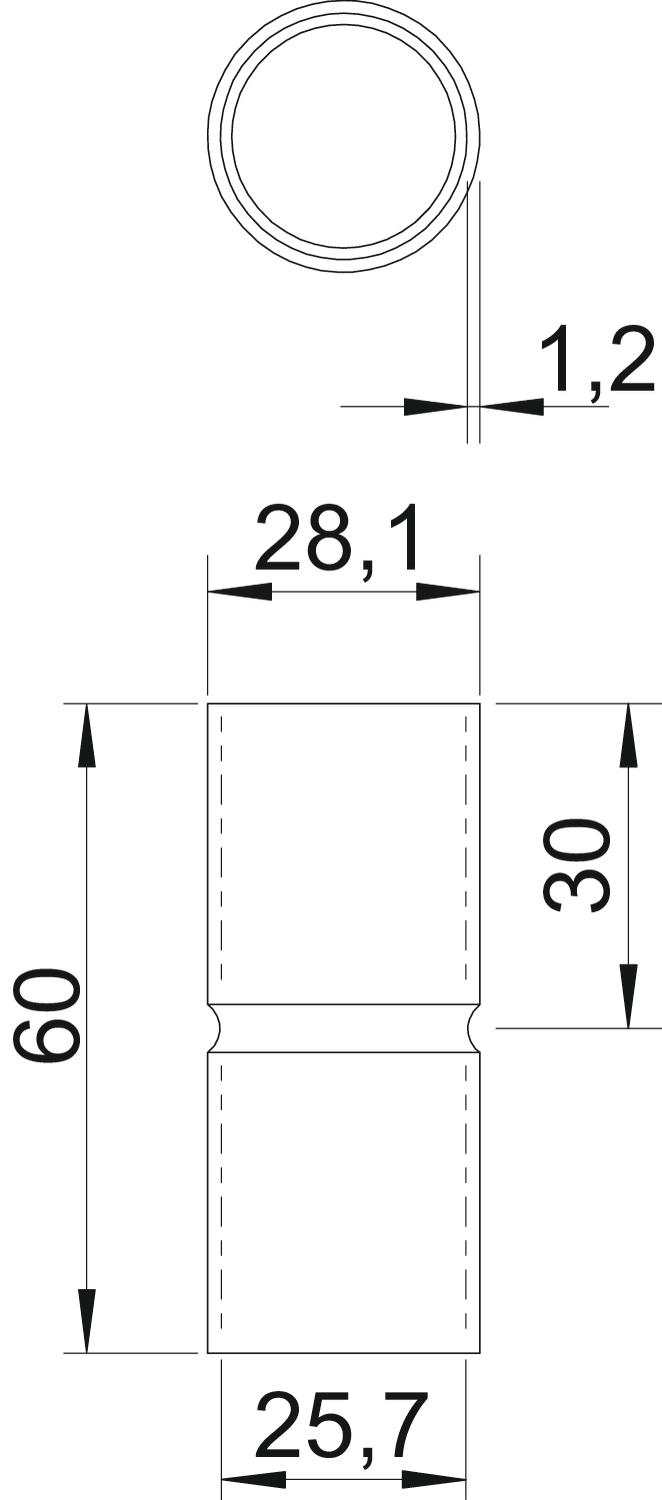

Brushed surface yes Dimension Ø25mm Dimension d 25,2 mm Dimension D 27,2 mm Dimension L 60 mm Dimension l 30 mm Dimension m (mm) M25 Dimension t 1 mm for pipe diameter 25 mm Halogen-free yes Length 60 mm Material Stainless steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 25 Surface Bright, treated Two-part no Version for Connector With inspection opening and lid no - All types
