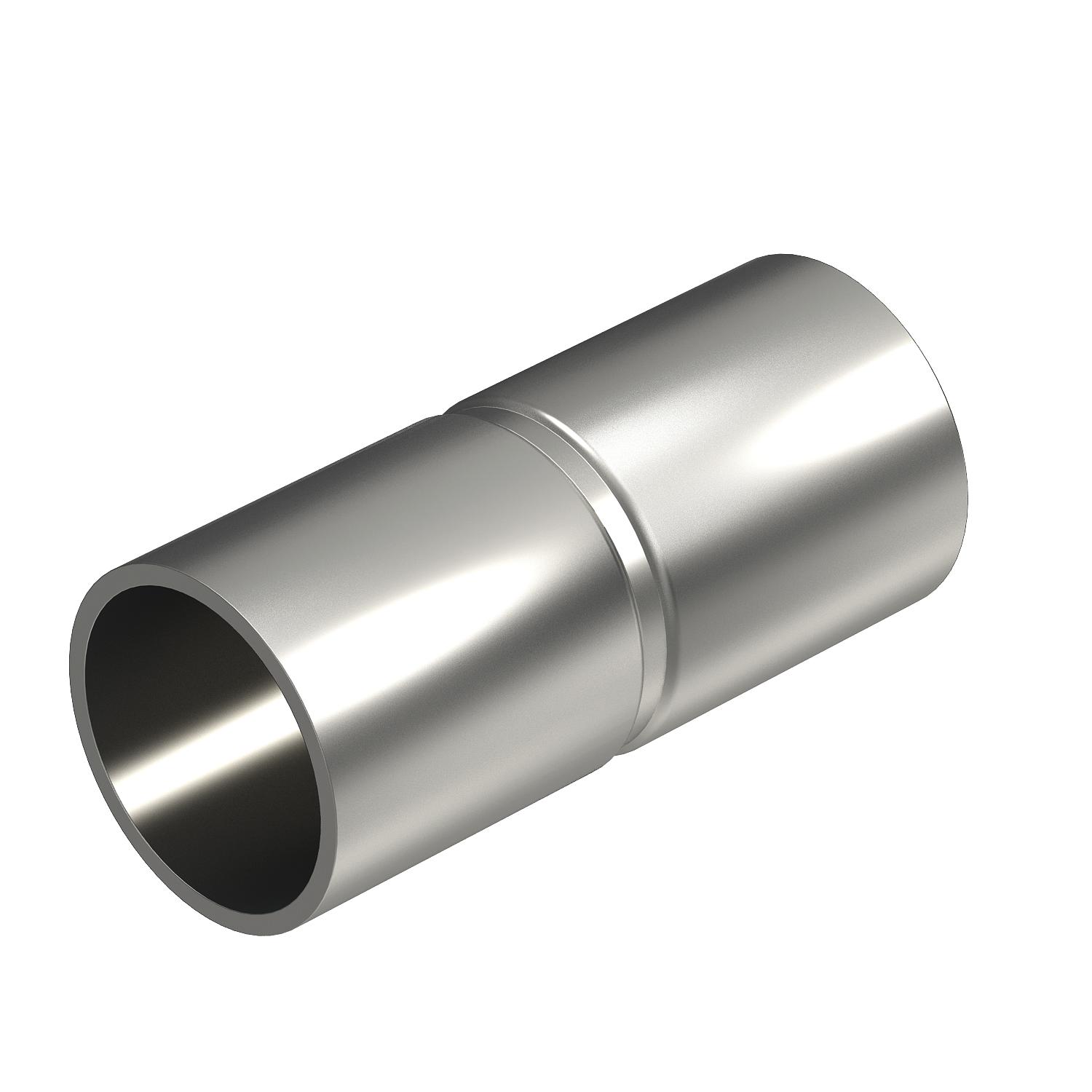

Stainless steel sleeve V4A

Item no. / Types

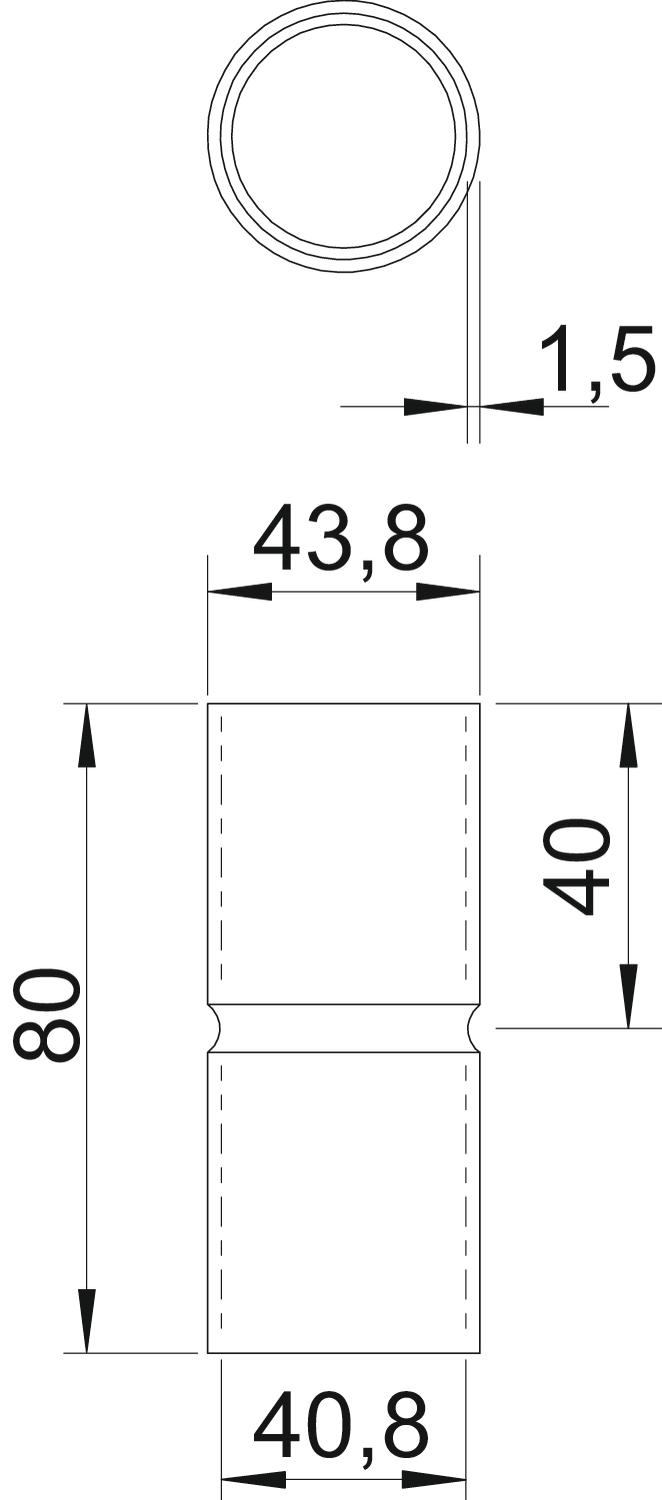

Dimension D

Dimension d

Product description

Product description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.

Technical data

Length	80 mm
Material	Stainless steel
Permitted temperature range, max.	400 °C
Permitted temperature range, min.	-45 °C
Polished surface	no
Size	40
Surface	Bright, treated
Two-part	no
Version for	Connector
With inspection opening and lid	no

All types

All types

Types	Dimension D	Dimension d	Item no.	Quantity	SSU
SV16W A4	18.2 mm	16.2 mm	2046770	piece	10 piece
SV20W A4	22.2 mm	20.2 mm	2046771	piece	15 piece
SV25W A4	27.2 mm	25.2 mm	2046772	piece	15 piece
SV32W A4	34.7 mm	32.2 mm	2046773	piece	15 piece
SV40W A4	42.7 mm	40.2 mm	2046774	piece	10 piece
SV50W A4	52.8 mm	50.2 mm	2046775	piece	5 piece
SV63W A4	65.8 mm	63.2 mm	2046776	piece	3 piece
