- Product description
-

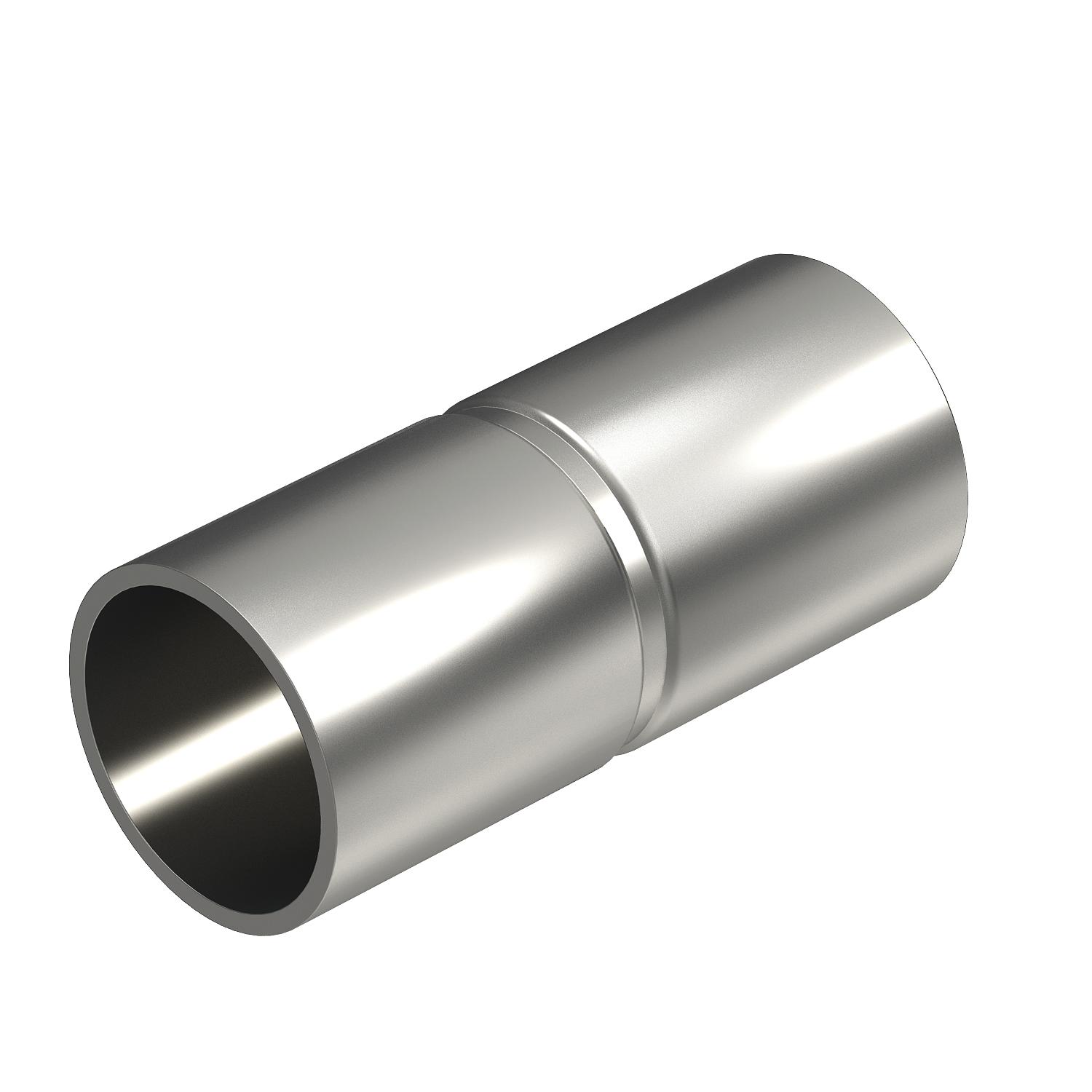

Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
- Technical data
-
Technical data

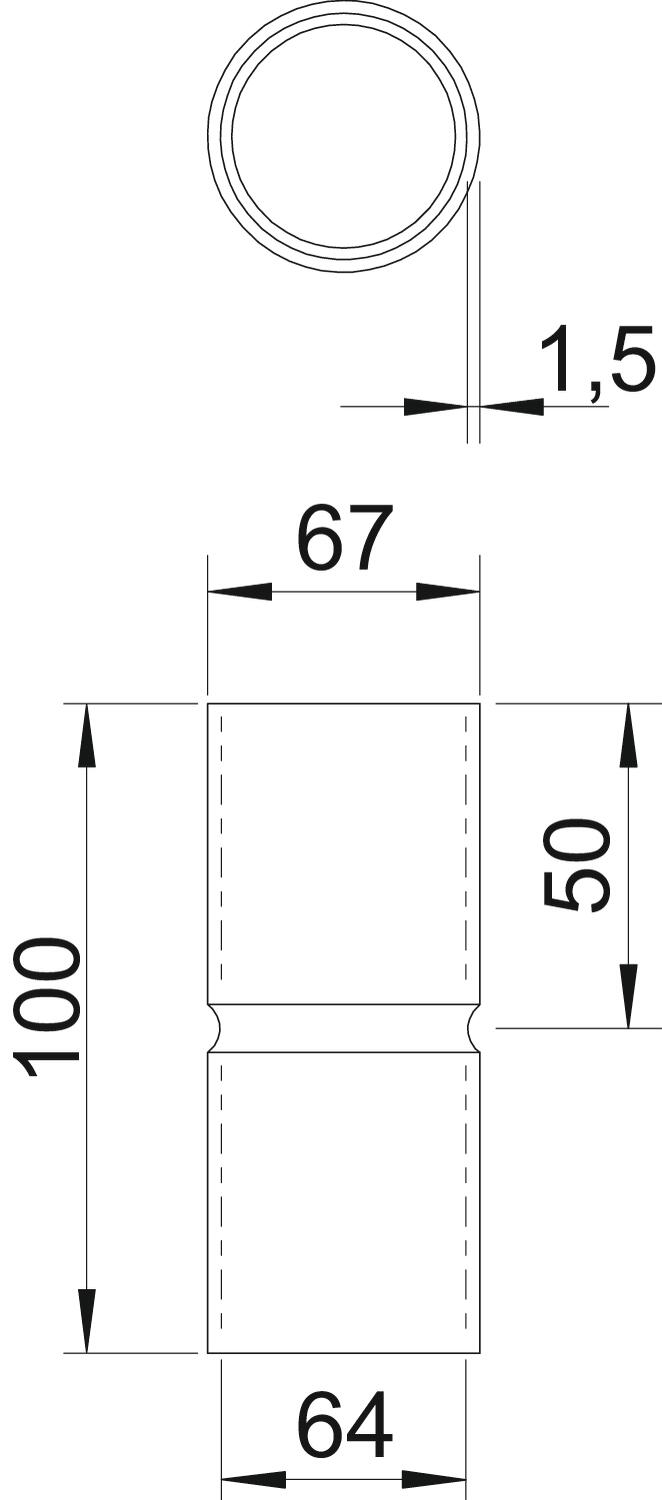

Brushed surface yes Dimension Ø63mm Dimension d 63,2 mm Dimension D 65,8 mm Dimension l 50 mm Dimension L 100 mm Dimension m (mm) M63 Dimension t 1,3 mm for pipe diameter 63 mm Halogen-free yes Length 100 mm Material Stainless steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 63 Surface Bright, treated Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV63W A4 / 2046776 , 0.20MB , pdfEU declaration of conformity SV63W A4 / 2046776 , 0.05MB , pdfREACH Declaration of conformity SV63W A4 / 2046776 , 0.12MB , pdfRoHS Declaration of conformity SV63W A4 / 2046776 , 0.12MB , pdf
