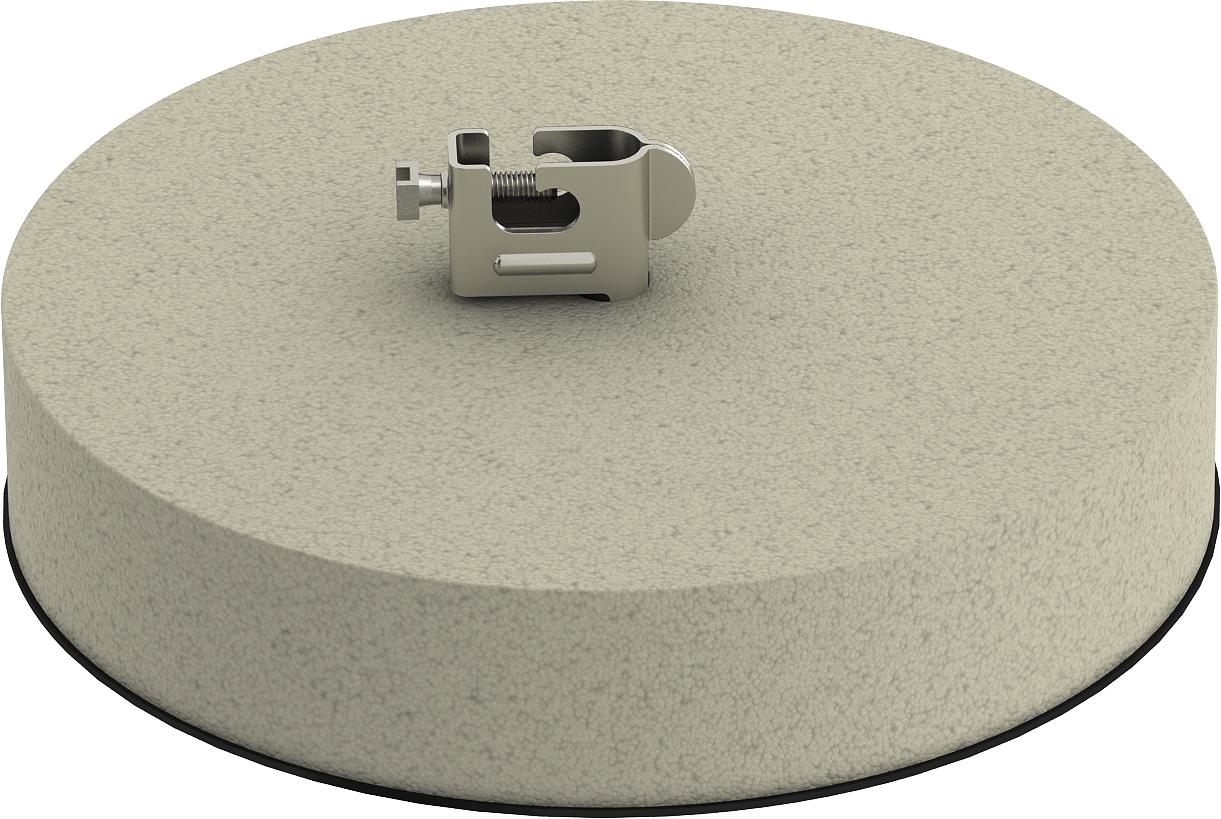

Stand for FangFix system, min. 10 kg

Item no. 5403103 | EAN 4012195070054

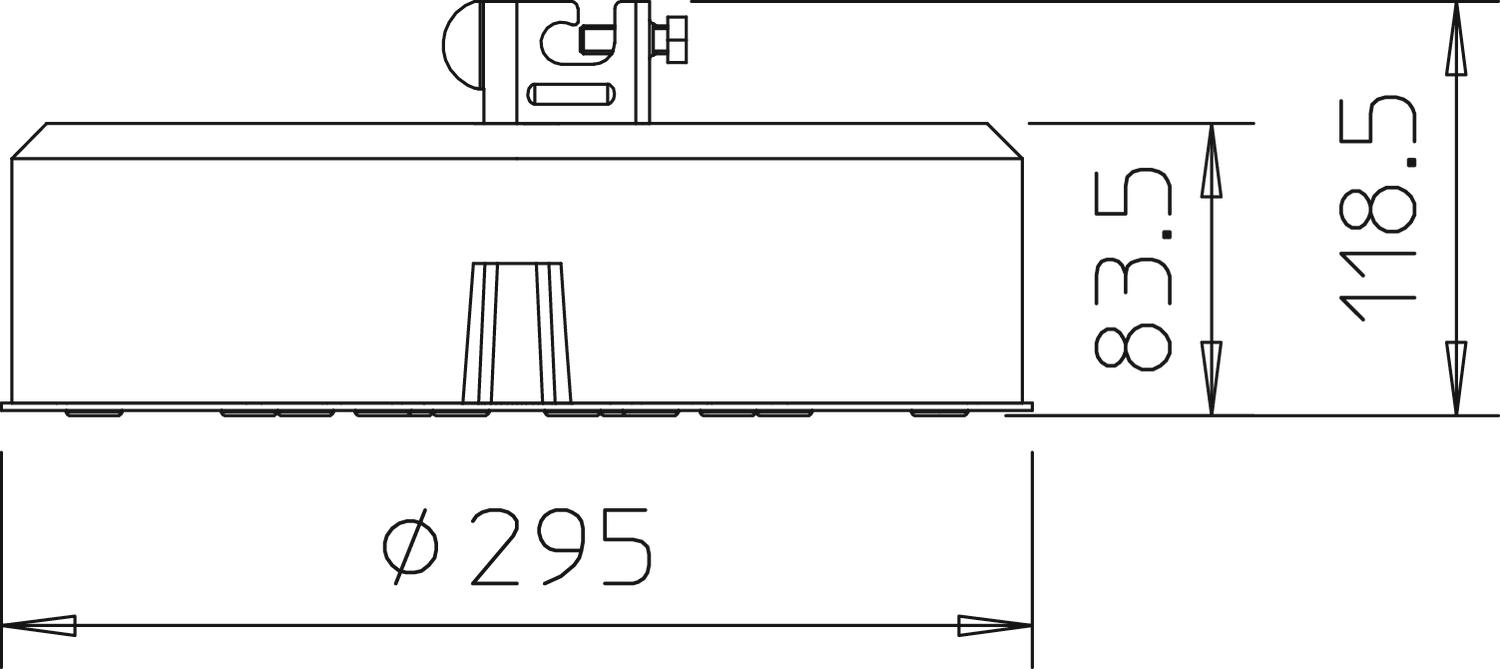

295 mm
Product description

Product description

• System consists of FangFix block with base and clamp
• FangFix clamp made of VA; complies with the requirements of VDE 0185-305 (IEC 62305)
• Min. 10 kg block of Ø 289 mm, high level of stability
• Quick and easy installation of air-termination rod using anchors
• Frost-resistant concrete
• The FangFix stone can be stacked
• Suitable for Ø 16 mm pipe air-termination rods
  • Lightning current-tested
Technical data

Technical data

Air-termination rod holder Thread
Diameter 295 mm
Dimension 10kg
Fit Rd 8 mm
Material Concrete
Nominal size Ø 295 mm
Tapered no
Version for Base
Weight 10 kg
All types

All types

Types Nominal size Ø Item no. Quantity SSU
F-FIX-10 295 mm 5403103
1 piece
F-FIX-10B 295 mm 5403110
77 piece
