Stand for FangFix system, min. 10 kg

Item no. 5403110 | EAN 4012195070061

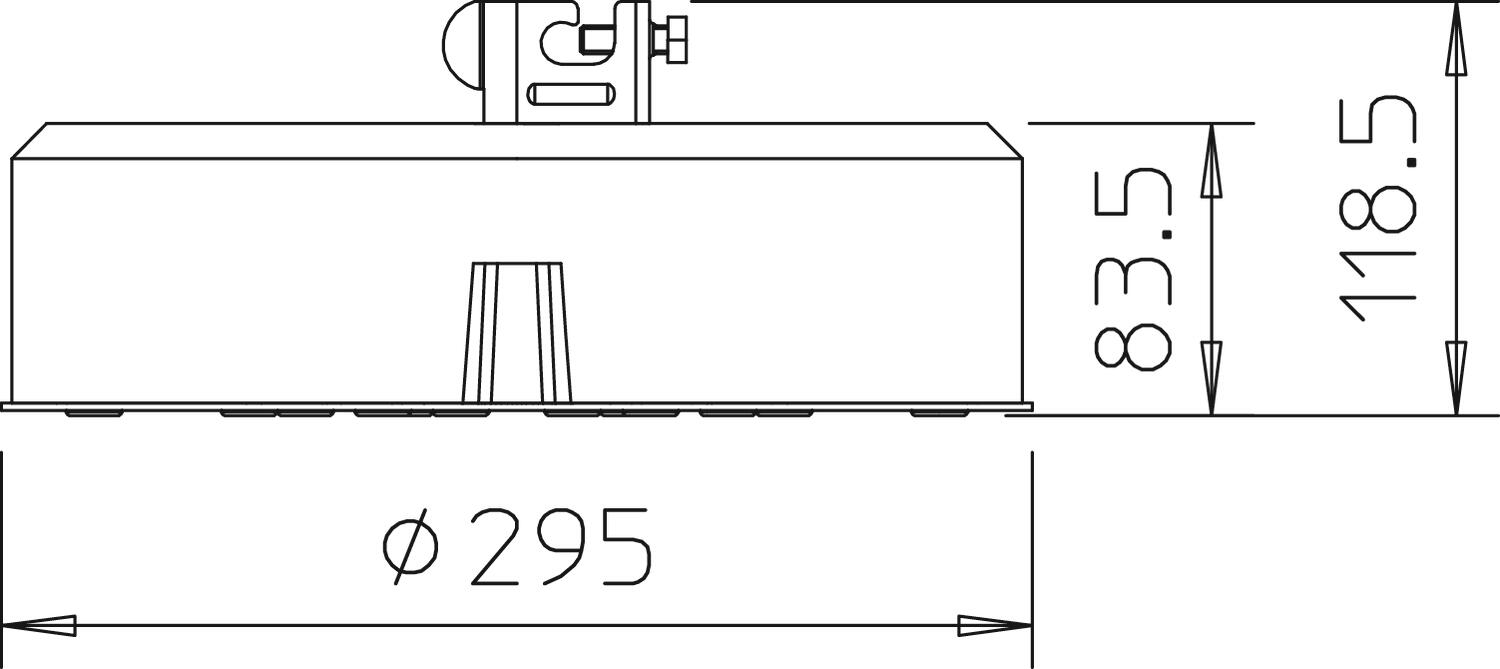

295 mm
Product description

Product description

• System consisting of FangFix block with base and terminal
• FangFix terminal made of VA; lightning current-tested with 100 kA (10/350)
• 16 kg block of Ø 365 mm, high resistance level
• Quick, simple mounting of the air-termination rod using anchor technology
• Concrete, frost-resistant
• The FangFix block can be stacked
• Suitable for Ø 16 mm pipe air-termination rods
  • Lightning current-tested
Technical data

Technical data

Air-termination rod holder Thread
Diameter 295 mm
Dimension 10kg
Fit Rd 8 mm
Material Concrete
Nominal size Ø 295 mm
Tapered no
Version for Base
Weight 10 kg
All types

All types

Types Nominal size Ø Item no. Quantity SSU
F-FIX-10 295 mm 5403103
1 piece
F-FIX-10B 295 mm 5403110
77 piece
