Stand for FangFix system, min. 16 kg

Item no. 5403205 | EAN 4012195110637

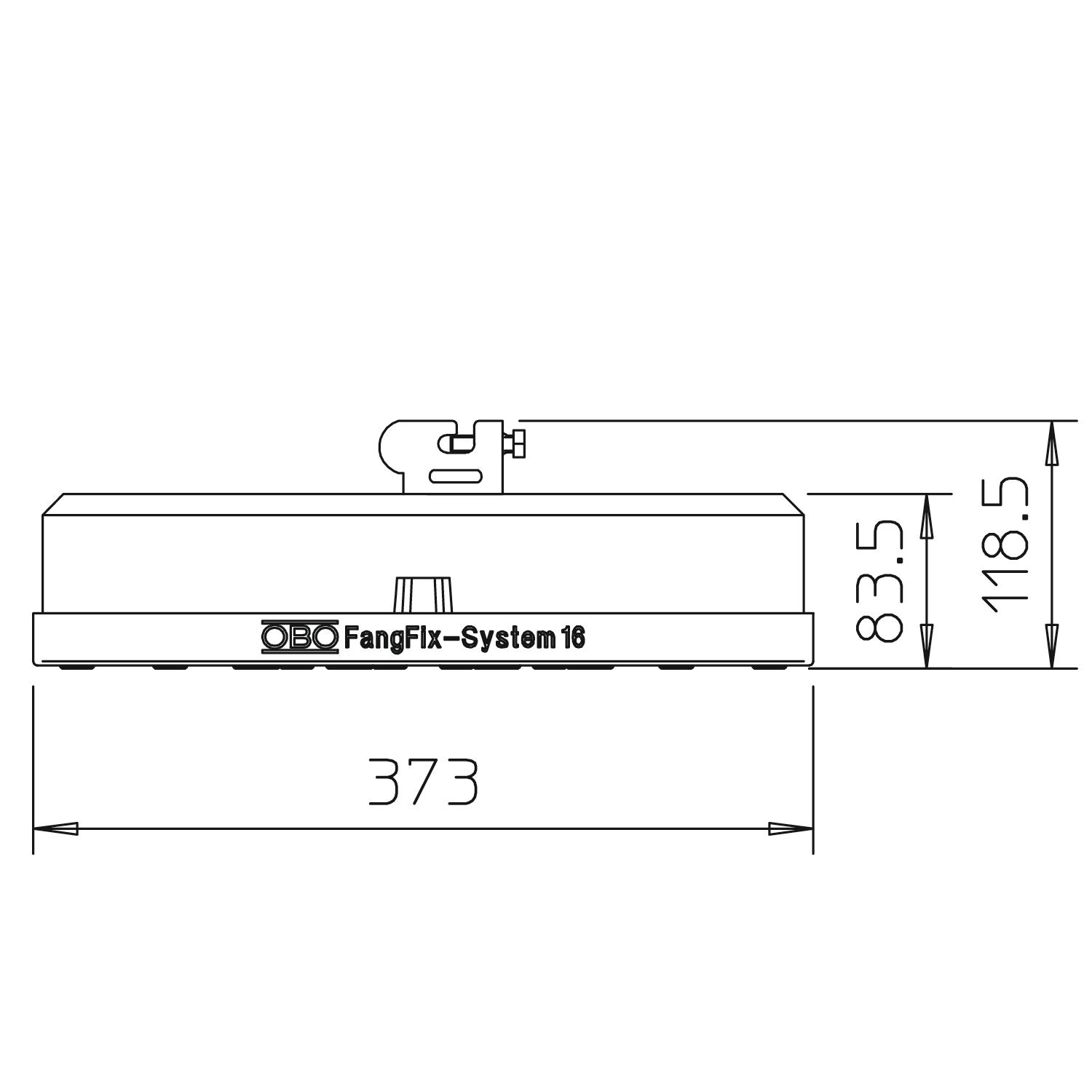

373 mm
Product description

Product description

• System consisting of FangFix block with edge protection and clamp
• FangFix clamp made of VA; complies with the requirements of VDE 0185-305 (IEC 62305)
• Min. 16 kg block of Ø 365 mm, high level of stability
• Quick and easy installation of air-termination rod using anchors
• Frost-resistant concrete
• The FangFix block can be stacked
• Suitable for Ø 16 mm pipe air-termination rods
  • Lightning current-tested
Technical data

Technical data

Air-termination rod holder Thread
Diameter 373 mm
Dimension 16kg
Fit Rd 8 mm
Material Concrete
Nominal size Ø 373 mm
Tapered no
Version for Base
Weight 16 kg
All types

All types

Types Nominal size Ø Item no. Quantity SSU
F-FIX-16 373 mm 5403200
1 piece
F-FIX-16B 373 mm 5403205
54 piece
