Stand-off bracket FS 306 | Retaining lug | Steel | Strip galvanized
morepic-1 morepic-2 video-1

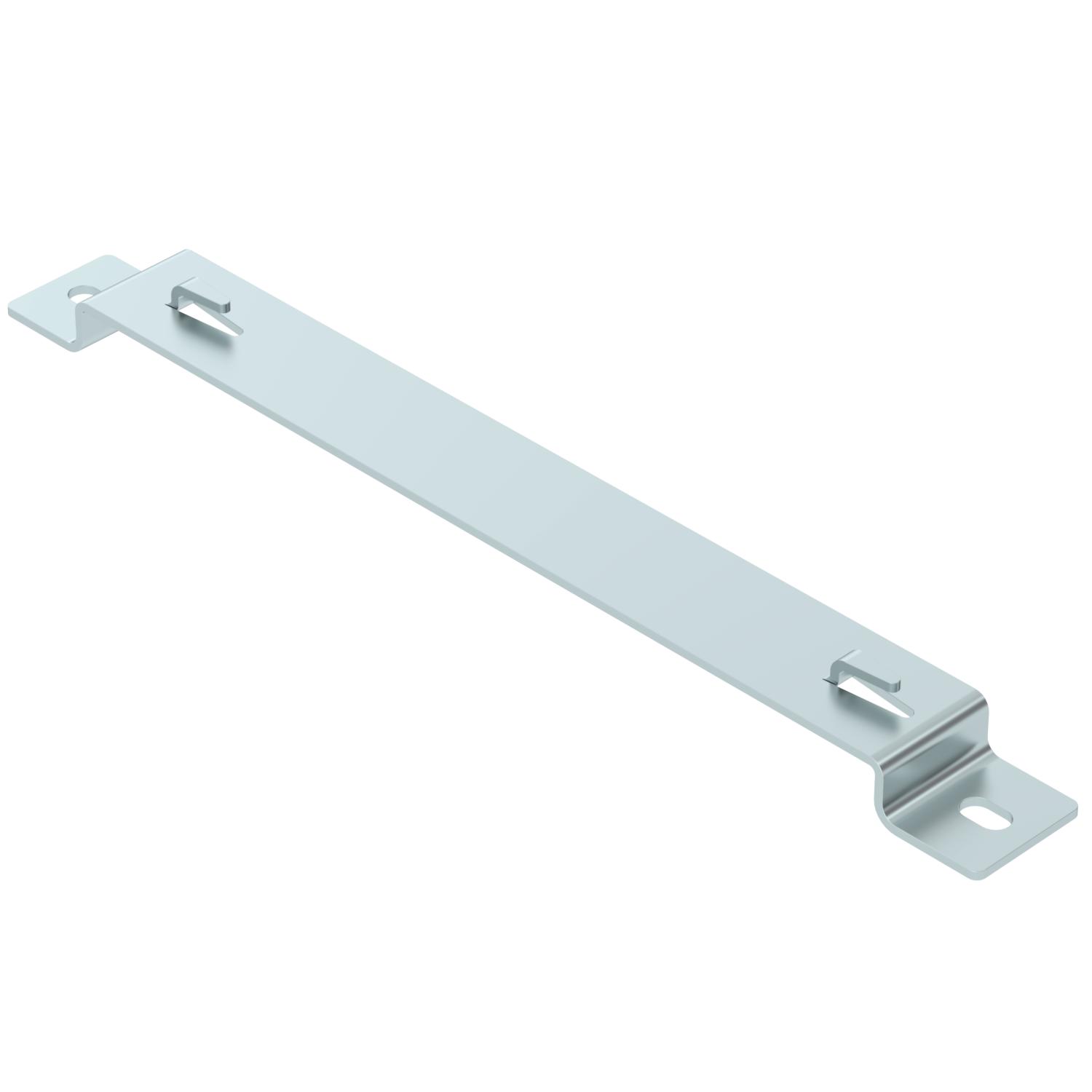

Stand-off bracket FS

Item no. 6015670 | EAN 4012196961702

Retaining lug
Steel
Strip galvanized
Product description

Product description

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.

GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the stand-off bracket.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm

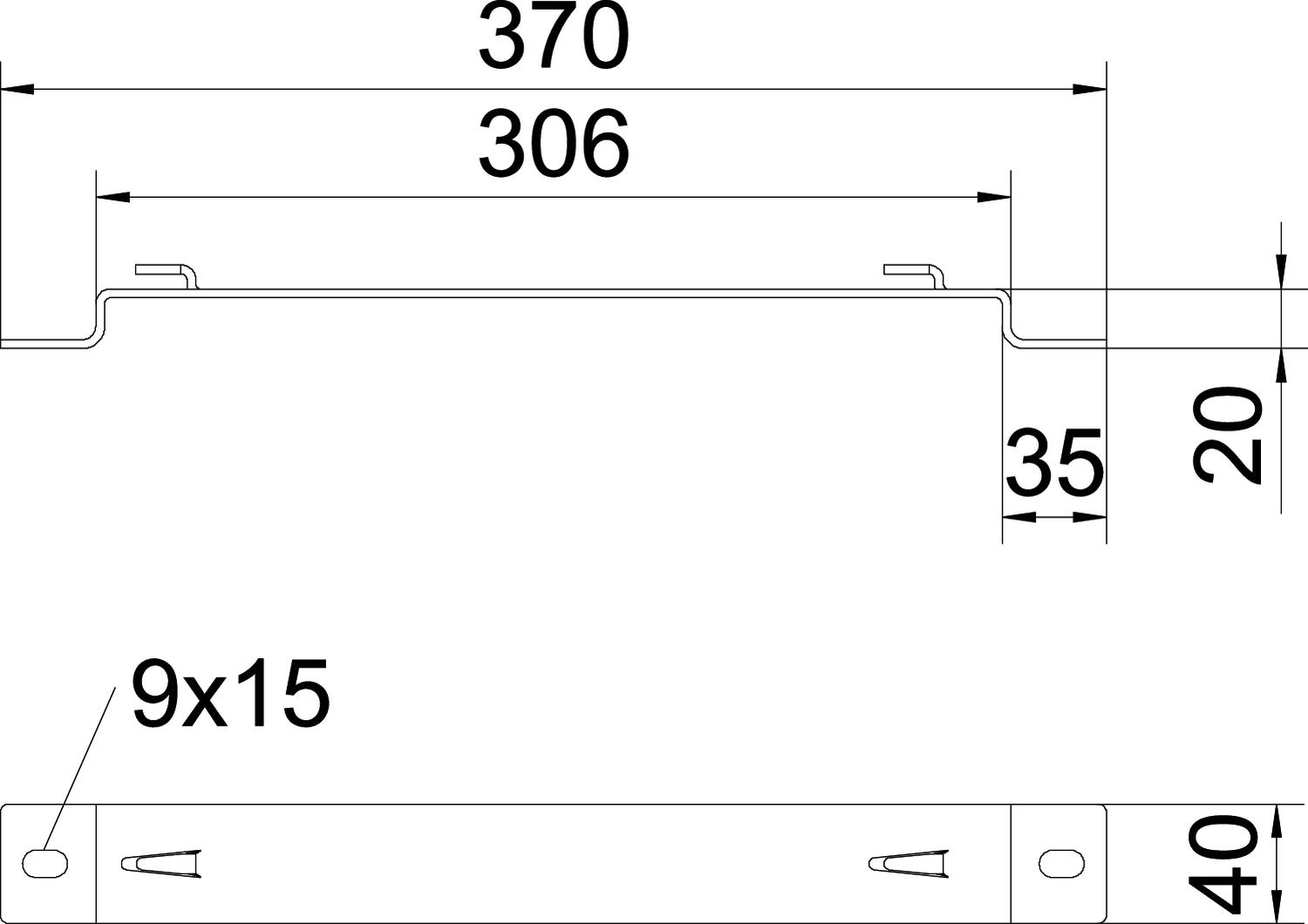

Technical data

Technical data

Dimension B300mm
Dimension A 40 mm
Dimension B 306 mm
Dimension L 370 mm
Height 20 mm
Height 0,79 in
Material Steel
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray yes
Surface Strip galvanized
Tray fastening Retaining lug
Version for Wall/ceiling clamp, trapezoidal profile
All types

All types

Types Dimension B Tray fastening Material Surface Item no. Quantity SSU
DBLG 20 050 FS 56 mm Retaining lug Steel Strip galvanized 6015646
20 piece
DBLG 20 100 FS 106 mm Retaining lug Steel Strip galvanized 6015654
20 piece
DBLG 20 150 FS 156 mm Retaining lug Steel Strip galvanized 6015658
20 piece
DBLG 20 200 FS 206 mm Retaining lug Steel Strip galvanized 6015662
20 piece
DBLG 20 300 FS 306 mm Retaining lug Steel Strip galvanized 6015670
20 piece
DBLG 20 400 FS 406 mm Retaining lug Steel Strip galvanized 6015689
20 piece
DBLG 20 500 FS 506 mm Retaining lug Steel Strip galvanized 6015693
25 piece
DBLG 20 600 FS 606 mm Retaining lug Steel Strip galvanized 6015697
25 piece
