Stand-off bracket FT 56 | Retaining lug | Steel | Hot-dip galvanised
morepic-1 morepic-2 video-1

Stand-off bracket FT

Item no. 6015648 | EAN 4012196042845

Retaining lug
Steel
Hot-dip galvanised
Product description

Product description

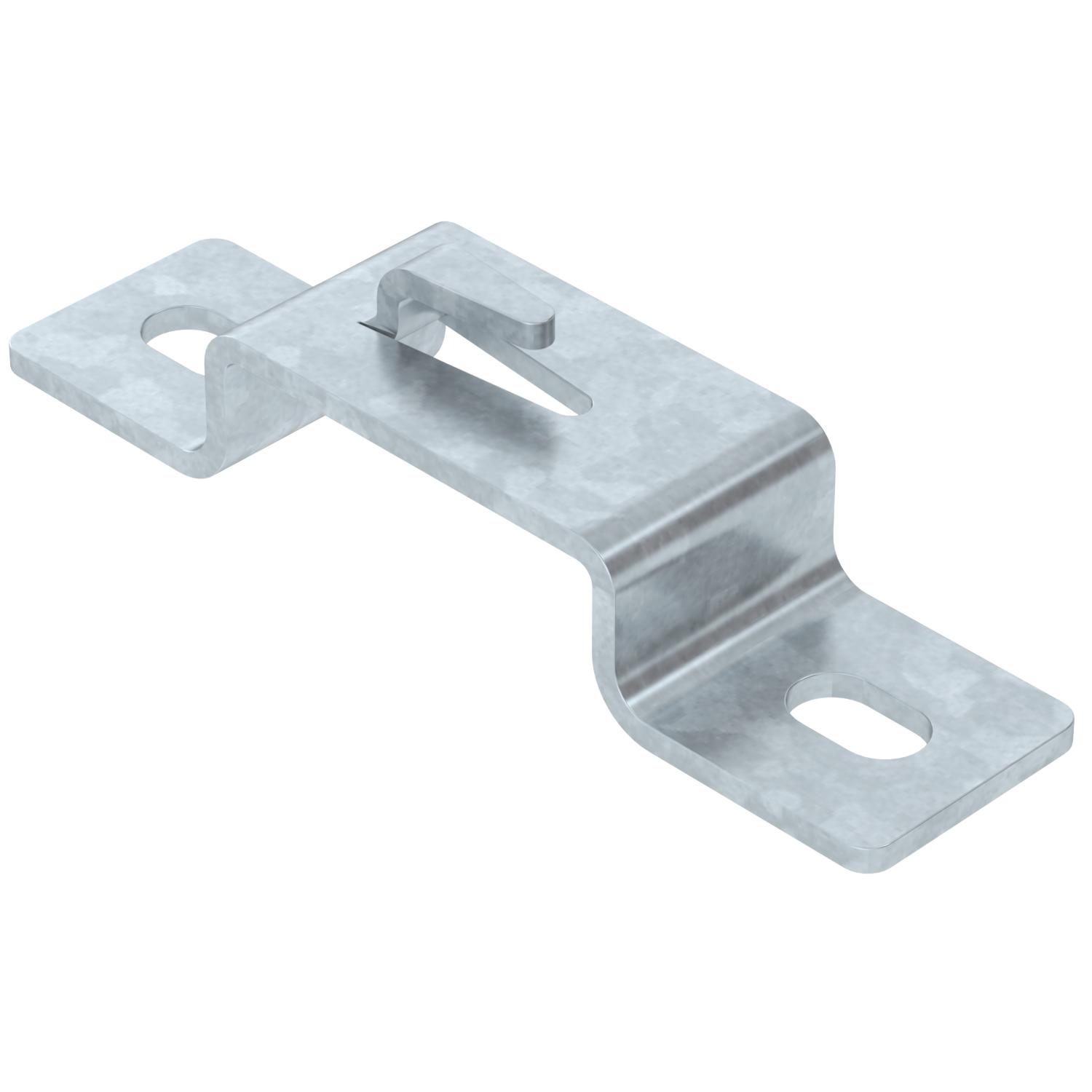

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.

GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm

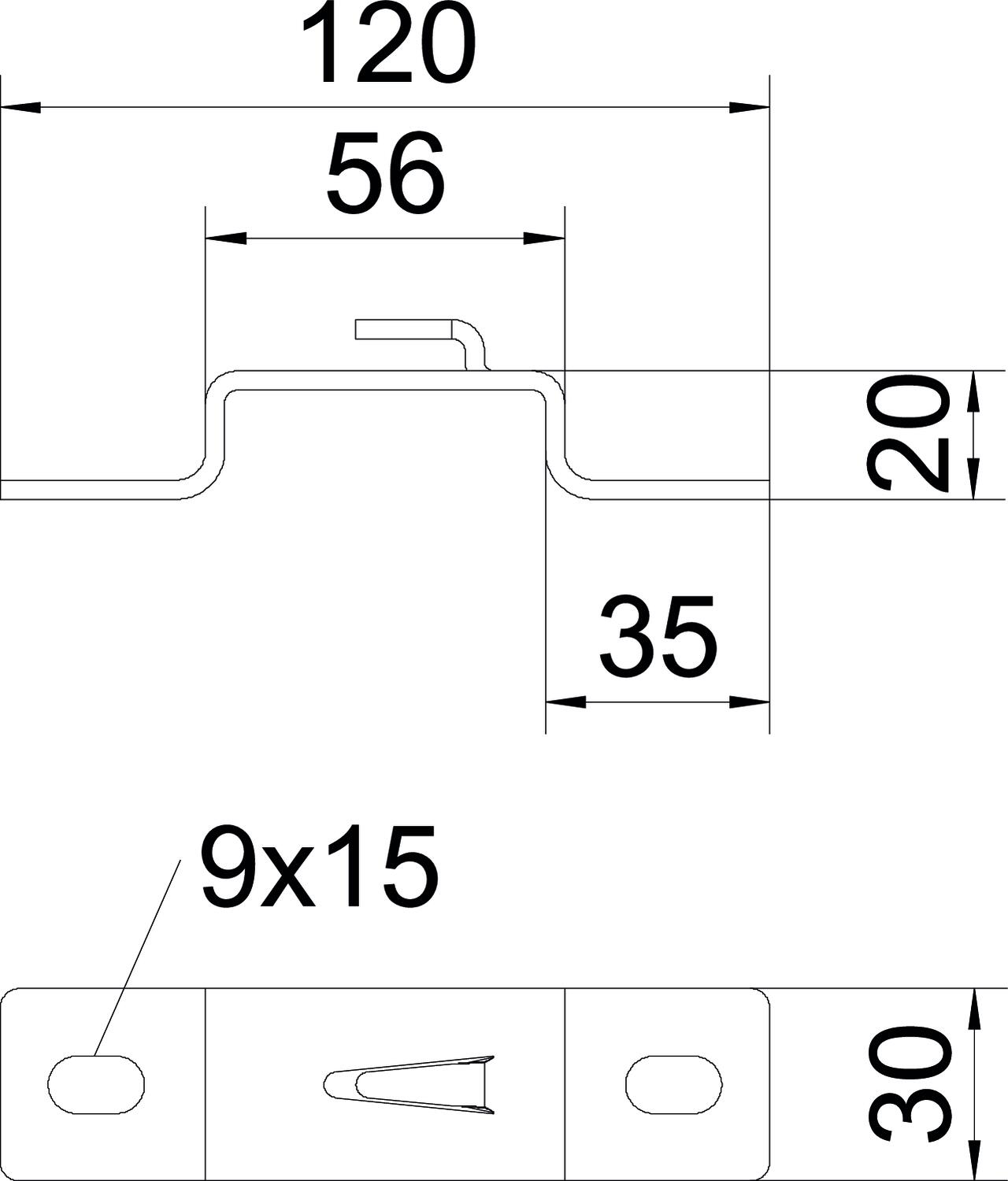

Technical data

Technical data

Dimension B50mm
Dimension A 30 mm
Dimension B 56 mm
Dimension L 120 mm
Height 0,79 in
Height 20 mm
Material Steel
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray yes
Surface Hot-dip galvanised
Tray fastening Retaining lug
Version for Wall/ceiling clamp, trapezoidal profile
All types

All types

Types Dimension B Tray fastening Material Surface Item no. Quantity SSU
DBLG 20 050 FT 56 mm Retaining lug Steel Hot-dip galvanised 6015648
20 piece
DBLG 20 100 FT 106 mm Retaining lug Steel Hot-dip galvanised 6015656
20 piece
DBLG 20 150 FT 156 mm Retaining lug Steel Hot-dip galvanised 6015660
20 piece
DBLG 20 200 FT 206 mm Retaining lug Steel Hot-dip galvanised 6015664
20 piece
DBLG 20 300 FT 306 mm Retaining lug Steel Hot-dip galvanised 6015672
20 piece
DBLG 20 400 FT 406 mm Retaining lug Steel Hot-dip galvanised 6015691
20 piece
DBLG 20 500 FT 506 mm Retaining lug Steel Hot-dip galvanised 6015695
25 piece
DBLG 20 600 FT 606 mm Retaining lug Steel Hot-dip galvanised 6015699
25 piece
