- Product description
-
Product description• Mounting system for the fastening of mesh cable trays with the FangFix base, e.g. for cable routing on a flat roof.
• Matches OBO mesh cable tray systems with a minimum width of 100 mm

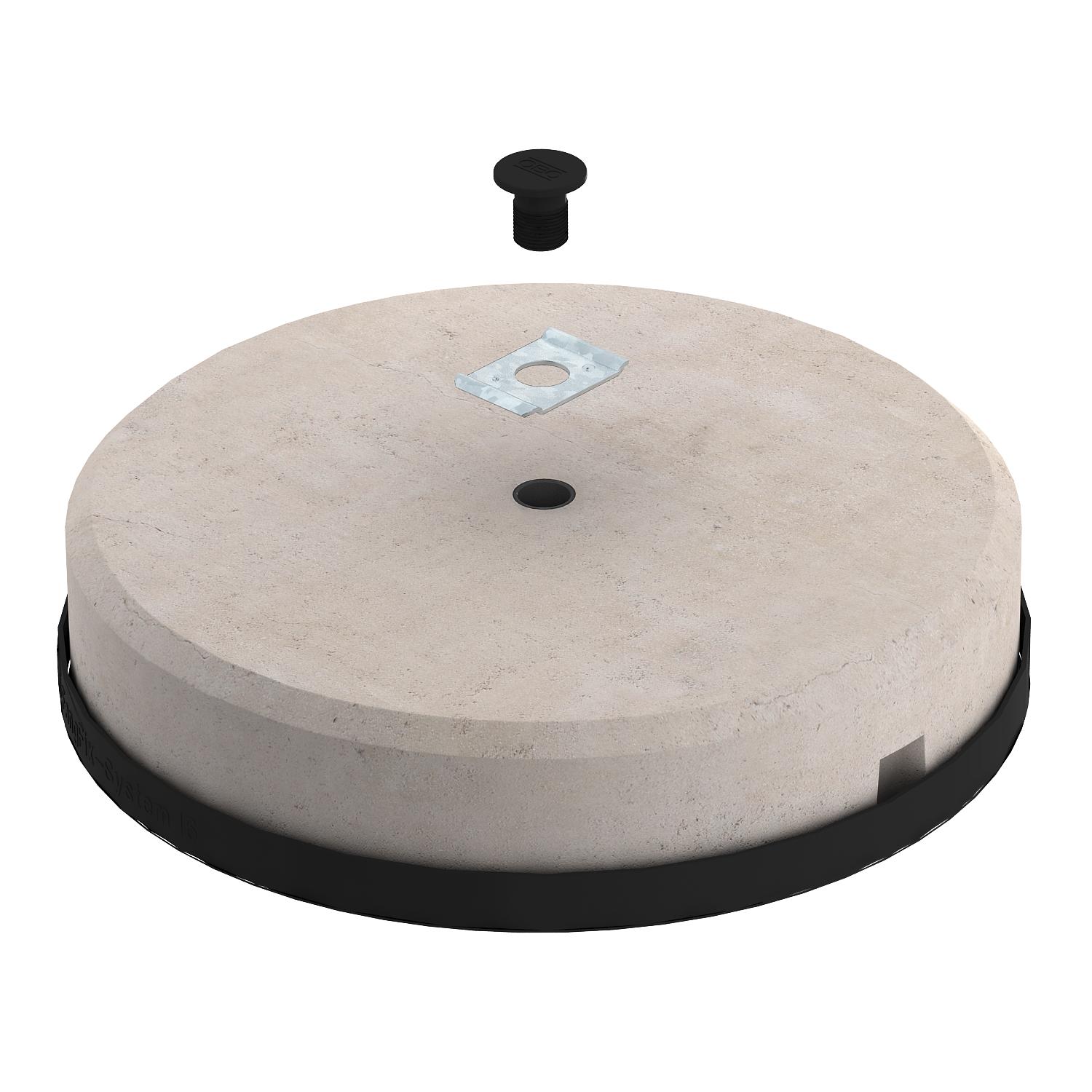

• Set consisting of TrayFix mounting adapter and concrete block incl. base for FangFix system 16 kg
- Technical data
-
Technical data

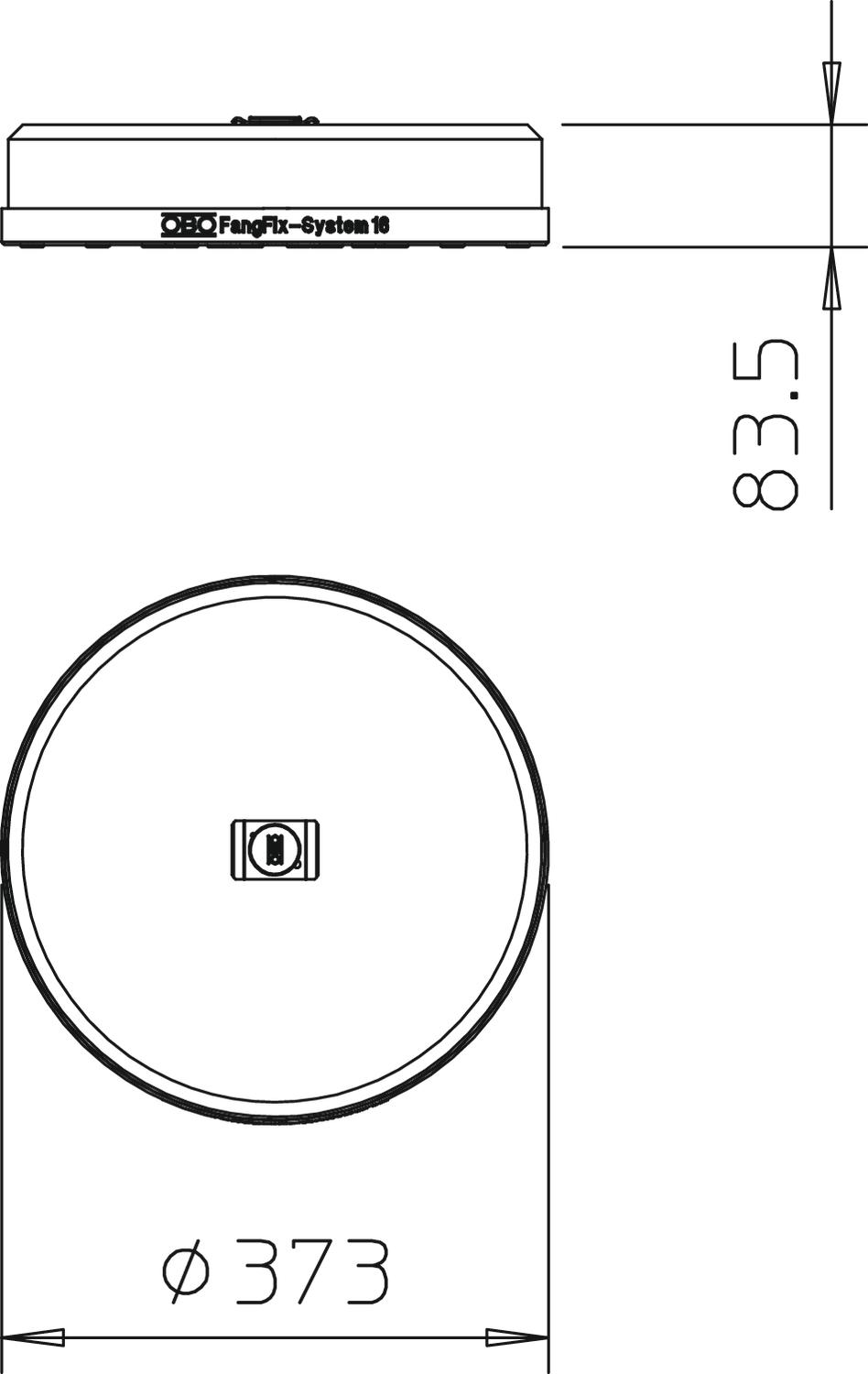

Dimension 373x373x84 From tray width 100 mm Width 4 in - All types
- Downloads
-
Data sheet TrayFix-16-S / 5403099 , 0.18MB , pdfEU declaration of conformity TrayFix-16-S / 5403099 , 0.15MB , pdfREACH Declaration of conformity TrayFix-16-S / 5403099 , 0.27MB , pdfRoHS Declaration of conformity TrayFix-16-S / 5403099 , 0.12MB , pdfMounting instructions Mounting instructions, TrayFix , 2.89MB , pdf
