Steel wire tensioning rope 957
Item no. 5303203 | EAN 4012195784739
- Product description
-
Product description

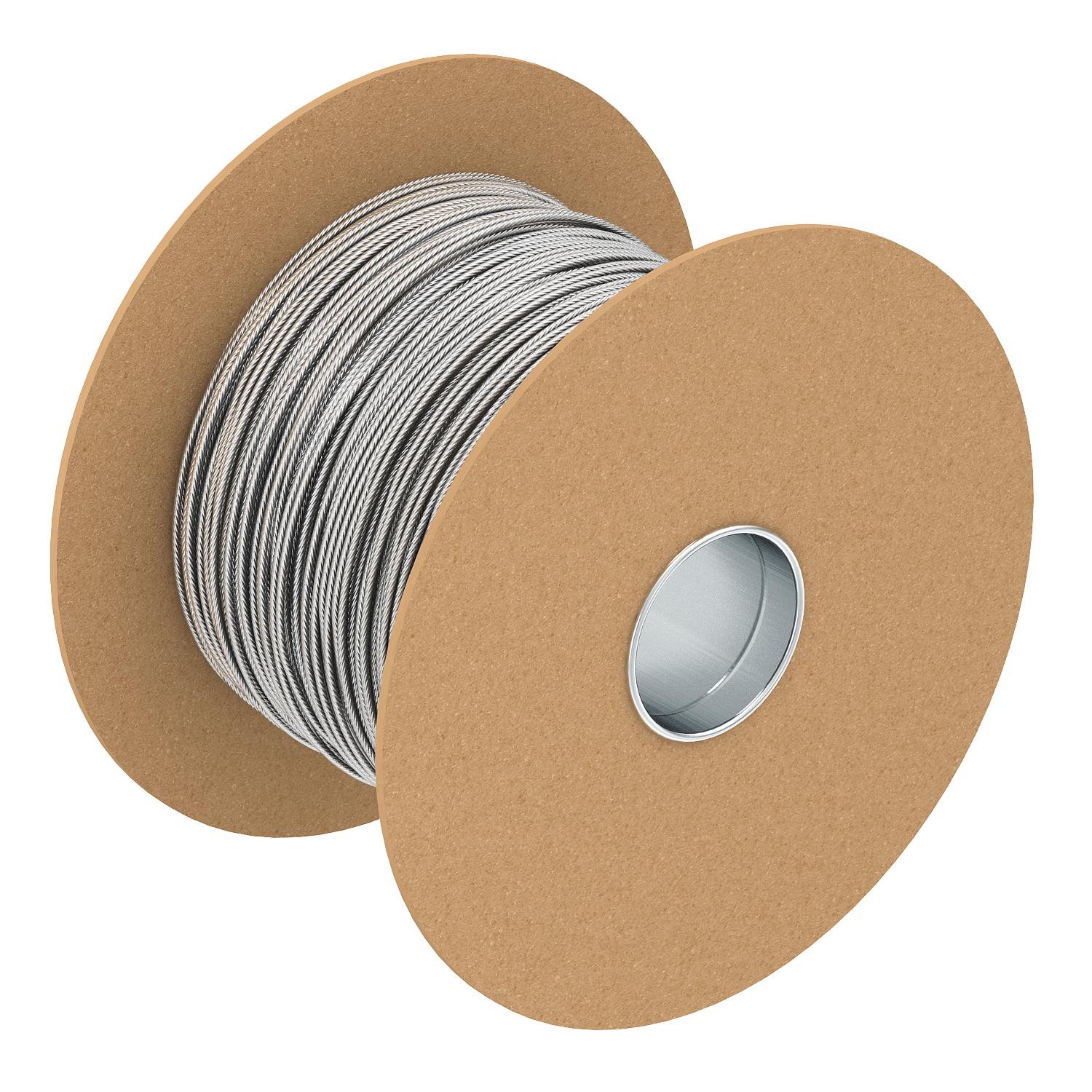

Steel wire tensioning rope, galvanised with fibre inlay (hemp core).
Cable Ø 2–6 mm: Round flexible cable 6 x 7 to DIN 3055.
Cable Ø 8–10 mm: Round flexible cable 6 x 19 to DIN 3060.
Minimum break load 1,770 N/mm².
-
- Technical data
-
Technical data
Breaking load 2,8 kN Cable diameter 2 mm Dimension Ø2,0mmx100m in rings 100 m Material Steel Support load 0,6 kN Support load 0,6 N Surface Electrogalvanized Dimensions
Dimension b 110 mm Dimension D1 190 mm Dimension L 100000 mm - All types
- Downloads
-
Data sheet 957 2,0x100 G S / 5303203 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 957 2,0x100 G S / 5303203 , 0.06MB , pdfNo invitation to tender text is available for this product.
