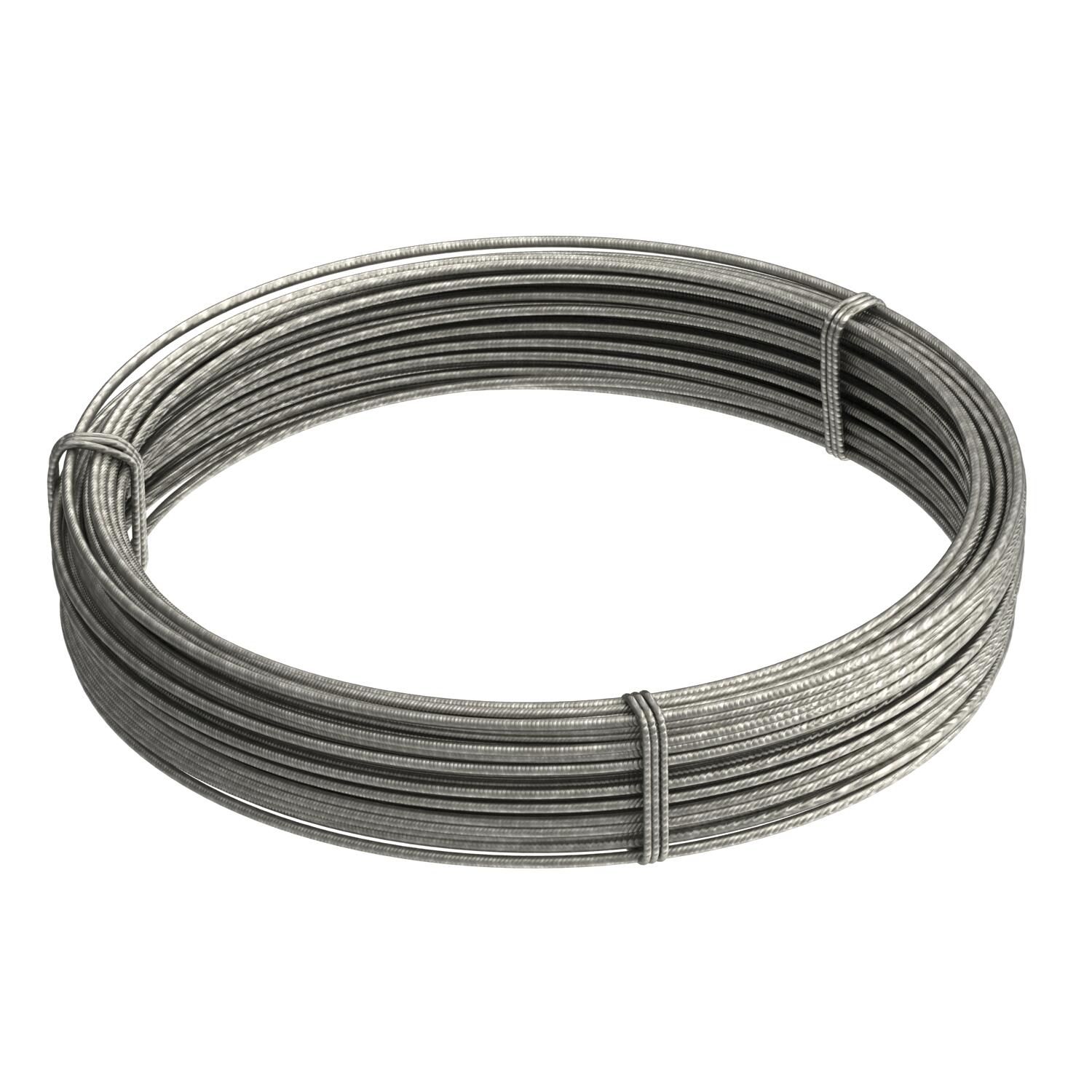

Steel wire tensioning rope A4

Item no. 5303188 | EAN 4012195900702

Item no. / Types

Cable diameter

in rings	50 m

Product description

Product description

Cable Ø 2‒6 mm: round-stranded cable 6 x 7 according to DIN 3055.
Cable Ø 8‒10 mm: round-stranded cable 6 x19 according to DIN 3060.
Minimum break force 1,770 N/mm².

Technical data

Technical data

Breaking load	14,7 kN
Cable diameter	5 mm
Dimension	5

in rings	50 m
Material	Stainless steel
Surface	Bright, treated

All types

All types

Types	Cable diameter	in rings	Item no.	Quantity	SSU
957 2 A4	2 mm	50 m	5303179	m	50 m
957 3 A4	3 mm	50 m	5303182	m	50 m
957 4 A4	4 mm	50 m	5303185	m	50 m
957 5 A4	5 mm	50 m	5303188	m	50 m
957 6 A4	6 mm	50 m	5303191	m	50 m
957 8 A4	8 mm	50 m	5303194	m	50 m
957 10 A4	10 mm	50 m	5303197	m	50 m
