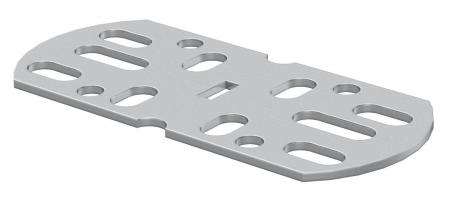

Straight and angle connector A4 100 | 45 | 1.5

morepic-1

morepic-2

Straight and angle connector A4

Item no. 6066571 | EAN 4012195866206

Item no. / Types	6066571 / VF AZK A4

Width	100 mm

Height	45 mm

Plate thickness	1.5 mm

Product description

Product description

Straight and angle connector for connection of AZ channels.

Technical data

Technical data

Adjustable connector, horizontal	no
Articulated connector, vertical	no
Connection type	Screw connector
Dimension	100 x 45
Dimension	45x100
Height	45 mm
Material	Stainless steel
Plate thickness	1,5 mm

Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray system height	50 mm
Suitable for mesh cable tray	no
Surface	Bright, treated
Version for	Straight and angle connector
Width	100 mm

All types

All types

Types	Width	Height	Plate thickness	Item no.	Quantity	SSU
VF AZK A4	100 mm	45 mm	1.5 mm	6066571	piece	10 piece

Downloads

Data sheet VF AZK A4 / 6066571 , 0.14MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity VF AZK A4 / 6066571 , 0.13MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

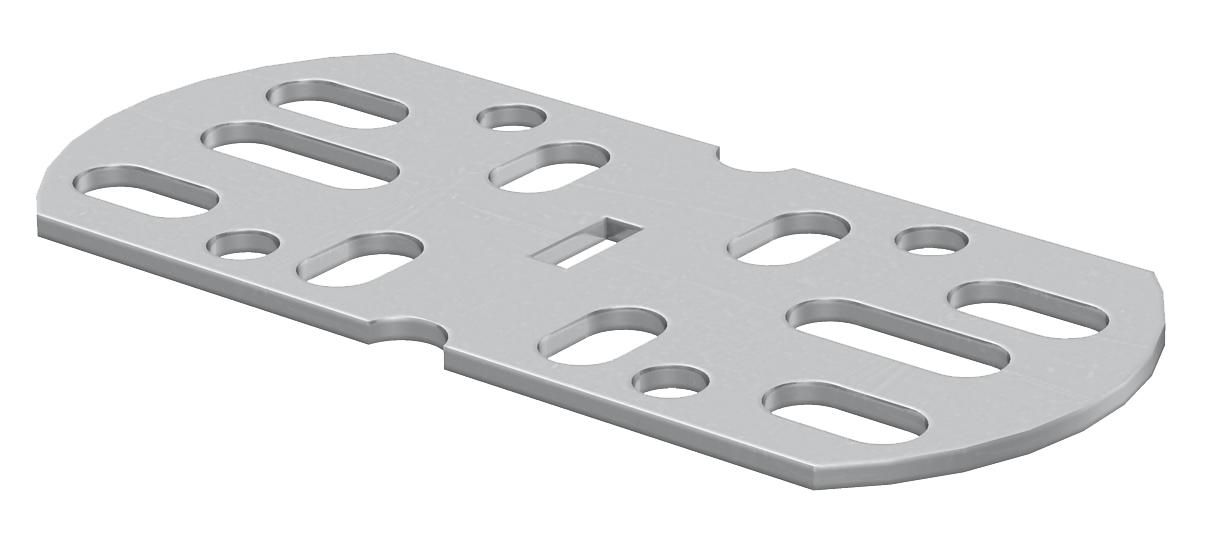

Product graphic VF AZK A4 / 6066571, 34.71 kB, jpg

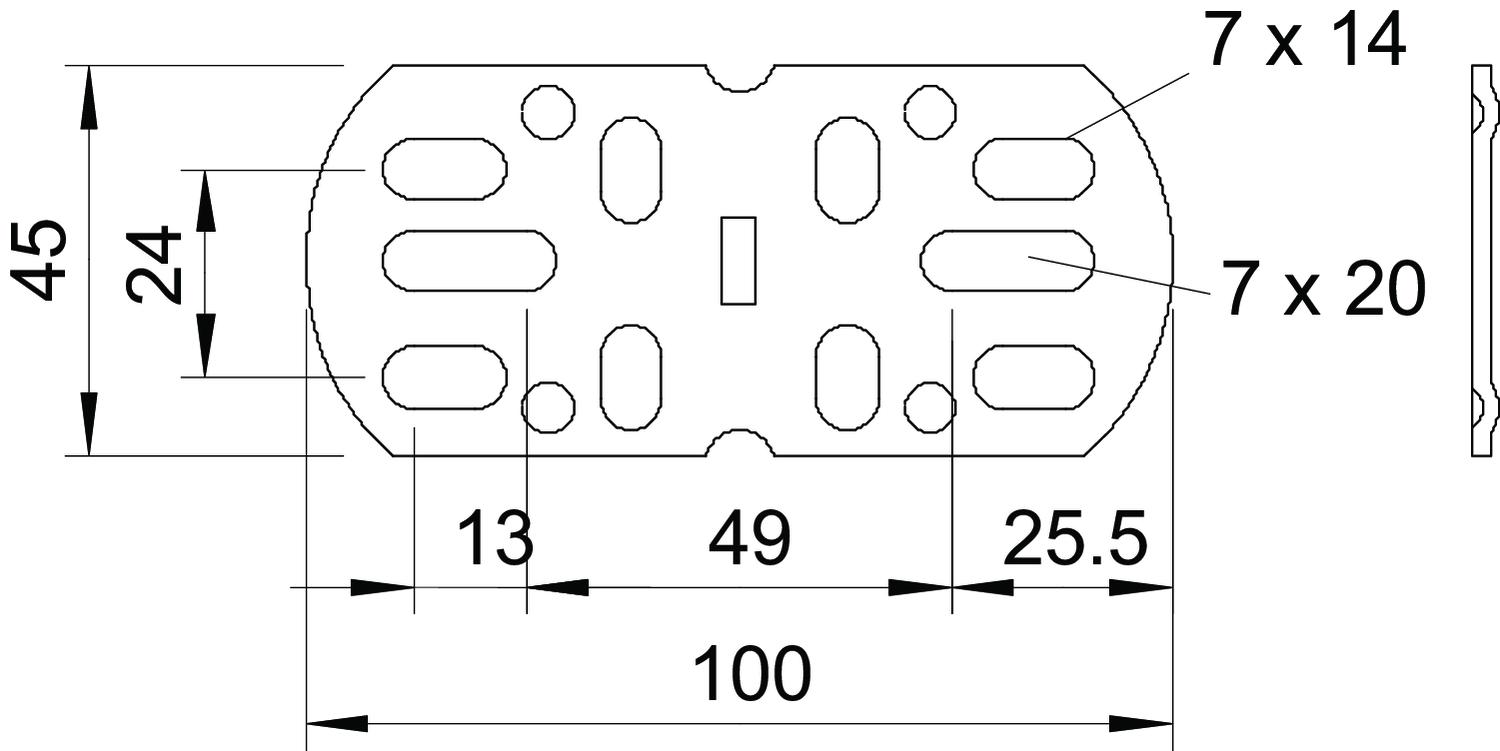

Scale drawing VF AZK A4 / 6066571, 64.96 kB, jpg

VF AZK A4 / 6066571
